Emmegi - COMET X6IT-MIL-EMM-2021-00001

Name: Emmegi COMET X6
Brand: Emmegi
SKU: IT-MIL-EMM-2021-00001
Price: 119000 EUR
Availability: InStock

119,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Emmegi COMET X6 For Sale | gindumac.com

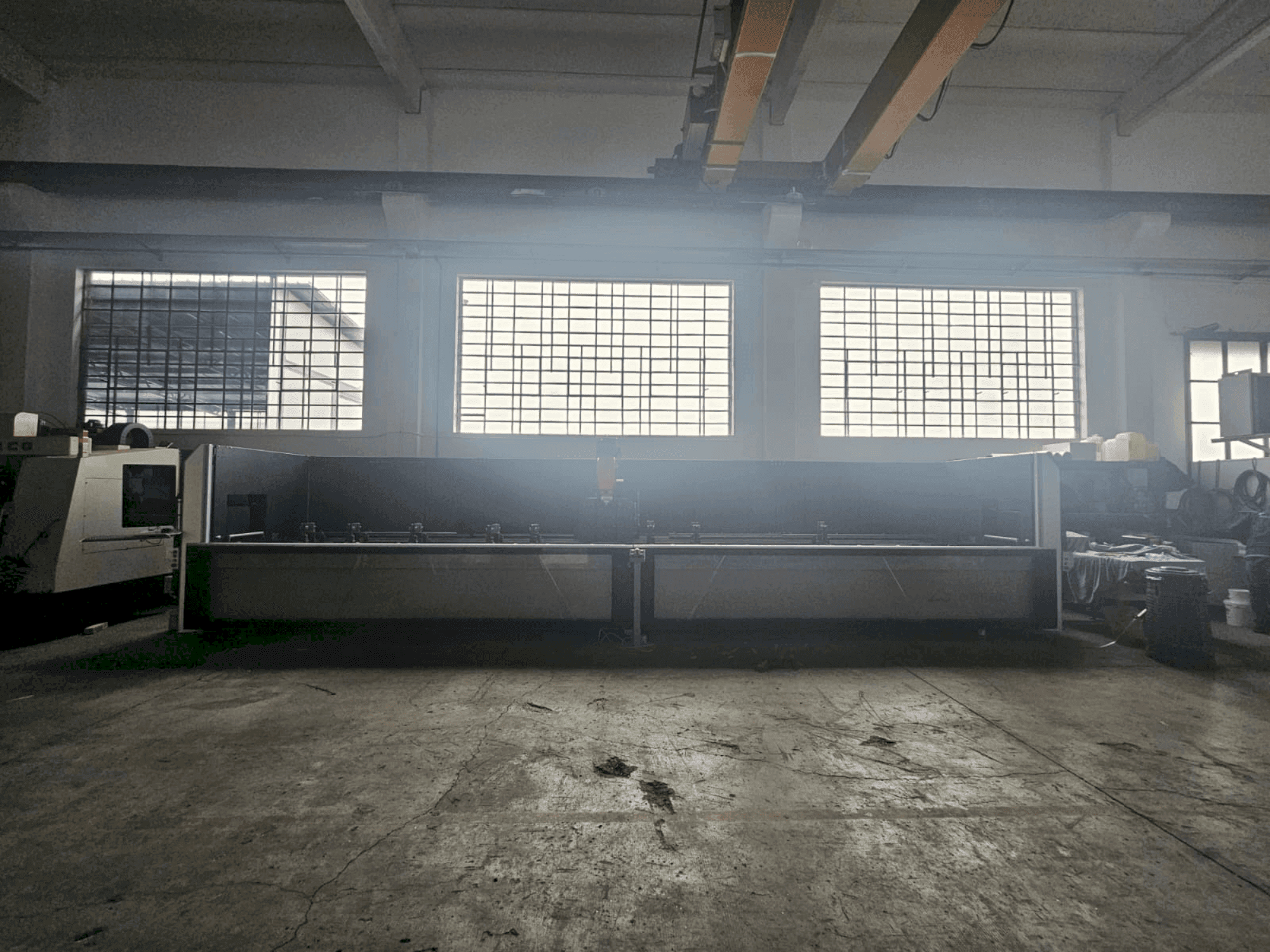

This 4-axis Emmegi COMET X6 vertical machining centre was manufactured in 2021. Consider the opportunity to buy this Emmegi COMET X6 vertical machining centre. Contact us for more information.

Overview

brand: Emmegi
year: 2021
MODEL: COMET X6
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - Emmegi COMET X6

General Data

Measurements width: 2031 mm
Measurements depth: 10532 mm
Measurements height: 1920 mm

Main drive

Spindle speed range: 16500 1/MIN
Spindle motor power: 7 kW
Number of axis: 4

Movement

X-AXIS Movement: 7970 mm
Y-AXIS Movement: 420 mm
Z-AXIS Movement: 430 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool attachment cone: hsk - 50 f
- - Automatic tool holder coupling
- - Cooling with heat exchanger

Extra information

- Workpiece Machinable Faces: Direct Tool: Top face and side faces (3) Angle Unit: Top faces (2) Blade Tool: Top face, top faces, and heads (1+2+2) Tapping Capability: With Male on Aluminum and Through-Hole: M8 Rigid (Optional): M10 Turret Automatic Tool Magazine on Board Carriage: Maximum Number of Tools: 10 Maximum Number of Angle Units: 1 Maximum Tool Length: 150 mm Maximum Blade Diameter: Ø 180 mm Safety and Protection Integral Machine Protection Enclosure Laminated Safety Glass Concealed Side Tunnels Supporting Basement Monolithic in Electro-Welded Steel Working Unit Flag Structure Double Tank with Ability to Handle Different Lubricants Minimal Diffusion Oil Lubrication System Automatic Lubrication System for Operating Head Control Unit Command and Control Unit: Pneumatic Panel MG PILOT Remote Control Panel Industrial Man-Machine Interface PC (Standard) CNC-PC with I3 Processor (Dual Core) Graphics Card 24-Inch Touch Screen LCD-TFT Color Graphic Display Keyboard and Mouse 4 GB RAM Memory 64 GB SSD USB Port RJ45 Network Card

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
