- ➤ Used Emmegi Satellite XT10500 For sale | gindumac.com

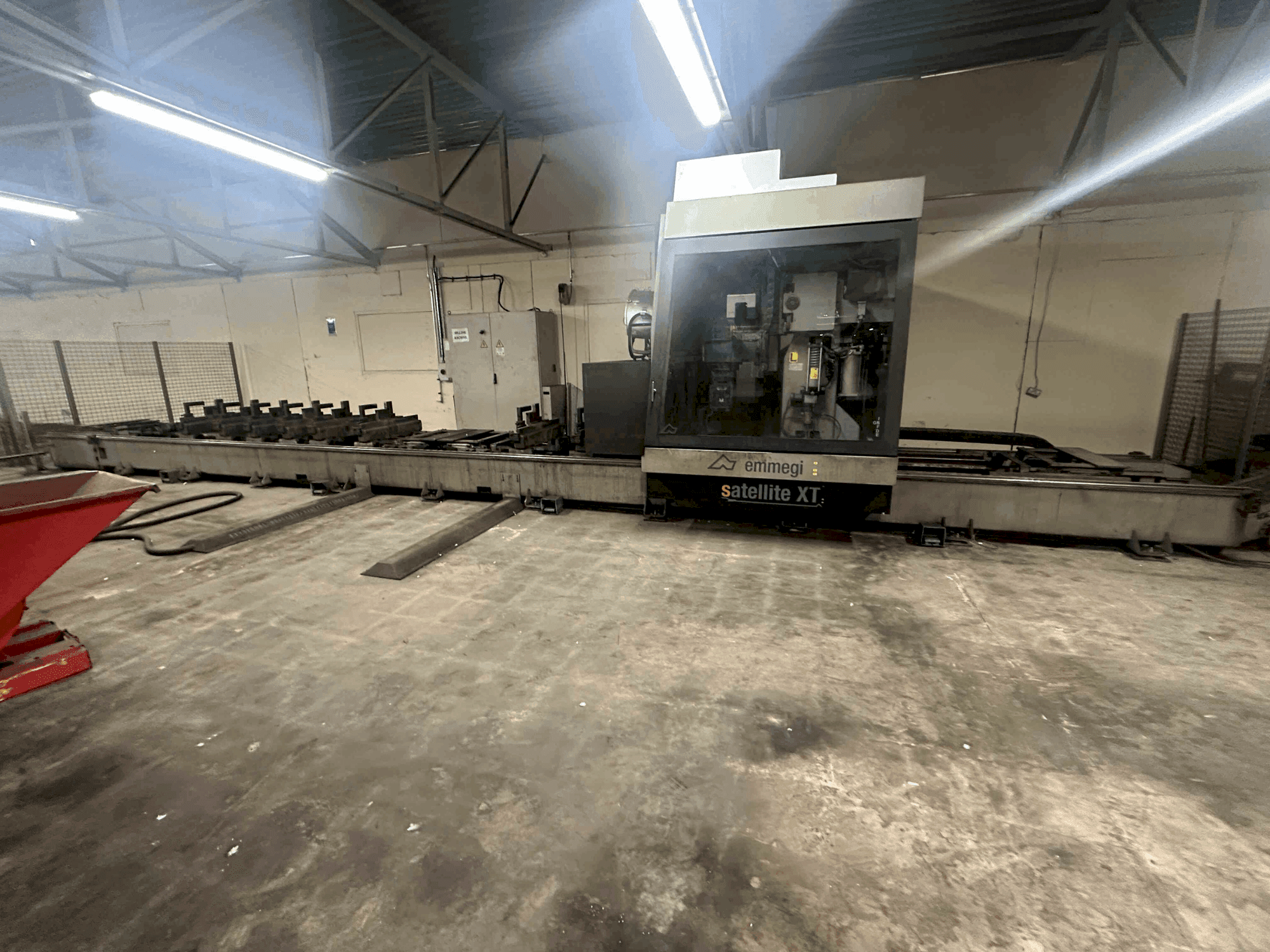

This 5-axis Emmegi Satellite XT10500 was manufactured in 2014, designed for the construction industry, specifically for producing shuttering for buildings. It features a large working area with X-Axis movement of 10500 mm and Y-Axis movement of 1100 mm. Equipped with an Emmegi Filo control unit, it supports multiple languages and offers a spindle speed range up to 24000 1/min. A great opportunity to buy this Emmegi Satellite XT10500 machining centre. Contact us for further details regarding this machining centre.
Overview
- brand: Emmegi
- year: 2014
- MODEL: Satellite XT10500
- application type: Milling
- Location: Ireland
- machine type: Machining centers (universal)
- availability: Immediately
- control unit brand: Emmegi
Technical Information - Emmegi Satellite XT10500
General Data
- Measurements width: 14900 MM
- Measurements depth: 4700 MM
Control Unit
- Brand: Emmegi
- Model: Filo
Main drive
- Number of spindles: 1
- Spindle speed range: 24000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 10500 mm
- Y-AXIS Movement: 1100 mm
- Z-AXIS Movement: 655 mm
- AXIS 1 Movement: 0º - 90 °
- AXIS 2 Movement: 0º - 360 °
Workpiece
- Workpiece x: 10000 mm
- Workpiece y: 1000 mm
- Workpiece z: 400 mm
Table
- Outer length: 10500 MM
- Outer width: 1100 MM
Tools
- Slots in storage: 16
- Max tool diameter: 80 mm
- Max tool length: 300 mm
- Type of tool holder: HSK-63F
Media
- Main electronic connection: 400 v
- Chip conveyor: Yes
Additional Information
- Qualitative Machine Benefits:
- - End product: shuttering for buildings
- - Industry: construction industry
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
