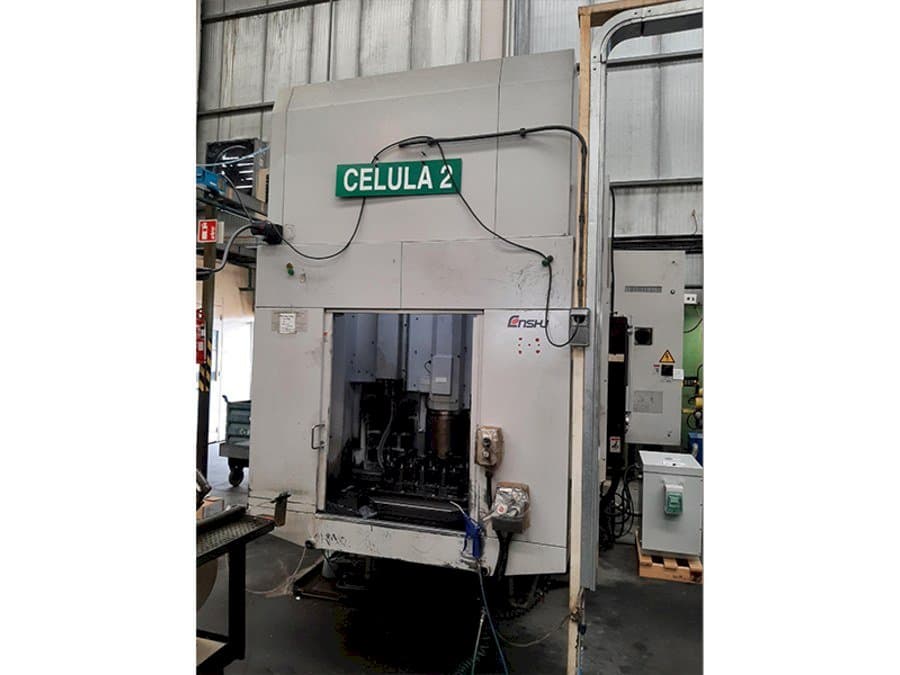

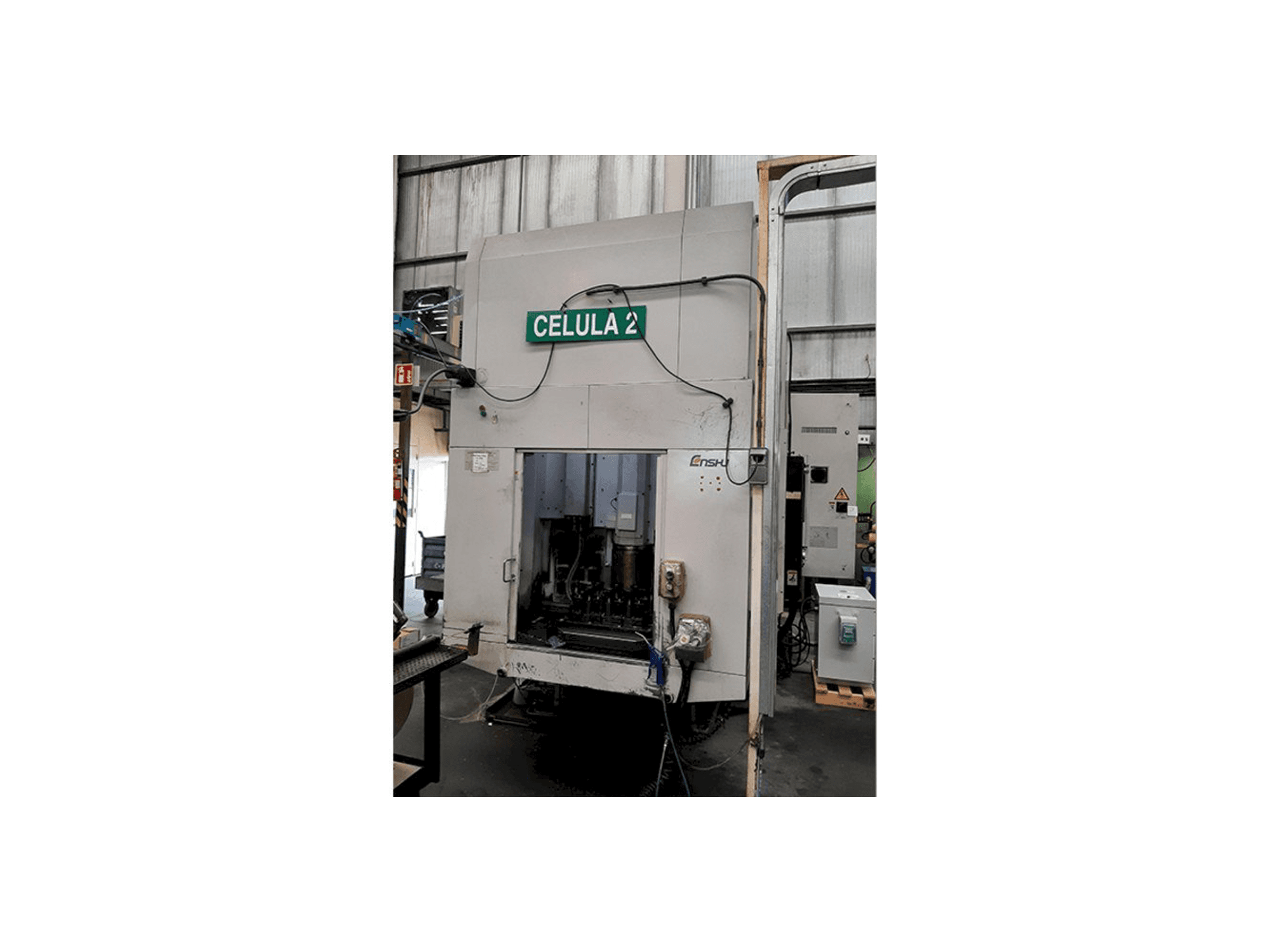

Enshu EV-450 Vertical Machining Center

This Enshu EV-450 Vertical Machining Center was manufactured in the year 2004 in Japan. It is equipped with a J-100M control unit. This 3 axis machine can work with a BT-40 head with 10.000 rpm and 7,5 Kw. It comes with 2 pallets of 530 x 400 mm, and an Internal coolant.

Overview

brand: Enshu
year: 2004
MODEL: EV-450
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Enshu EV-450

General Data

Machine weight: 4800 kg

Control Unit

Model: J-100M

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 7,5 kW
Number of axis: 3

Additional Equipment

- Additional hydraulic pump
- Automatic tooling opening / closing

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 2 pallets of 530 x 400 mm
- - Strokes: 560 x 450 x 460 mm
- - Maximum load per pallet: 250 kg
- - Pallet changeover time: 4,8 sec
- - Bt-40 head with 10. 000 rpm and 7,5 kw
- - Fast movements: 40 m/min
- - 20 tool magazine
- - Tool change time: 3,5 sec
- - Chip extractor, internal coolant, bed cleaning system
- - 2 x 2 port rotary joint

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
