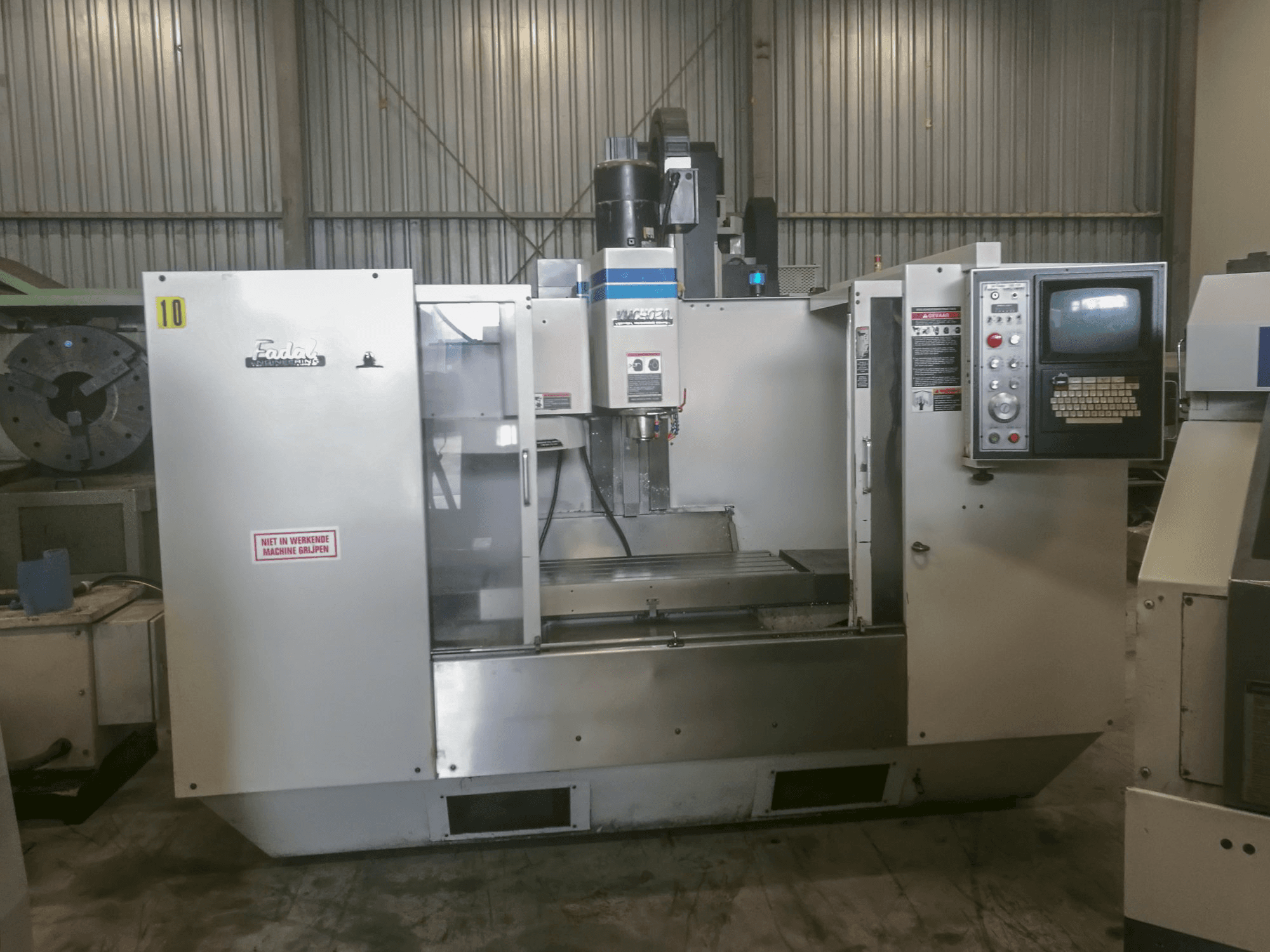

FADAL VMC 4020HT Vertical Machining Center

This FADAL VMC 4020HT Vertical Machining Center from 1998 was manufactured in the United States of America and has been operative for 18700 production hours. This model is equipped with a FADAL CNC 88HS Control unit, and has mainly worked with different types of steel during the past, producing supplies for the automotive industry. With its high torque spindle motor and an automatic tools changer, this machine is in good conditions due to regular inspections.

Overview

brand: FADAL
year: 1998
MODEL: VMC 4020HT
production hours: 18700
application type: Milling
Location: Netherlands
machine type: Vertical Machining Centre
availability: Sold

Technical Information - FADAL VMC 4020HT

General Data

Measurements width: 2950 mm
Measurements depth: 2209 mm
Measurements height: 2795 mm
Machine weight: 4760 kg

Control Unit

Model: CNC 88HS

Main drive

Number of spindles: 1
Spindle speed range: 75 - 10000 1/min

Movement

X-AXIS Movement: 1015 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1220 mm
Outer width: 510 mm

Tools

Slots in storage: 21
Max weight: 6.8 kg
Max tool diameter: 115 mm
Max tool length: 380 mm

Media

Main electronic connection: 230 / 440 V
Power consumption: 10 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
