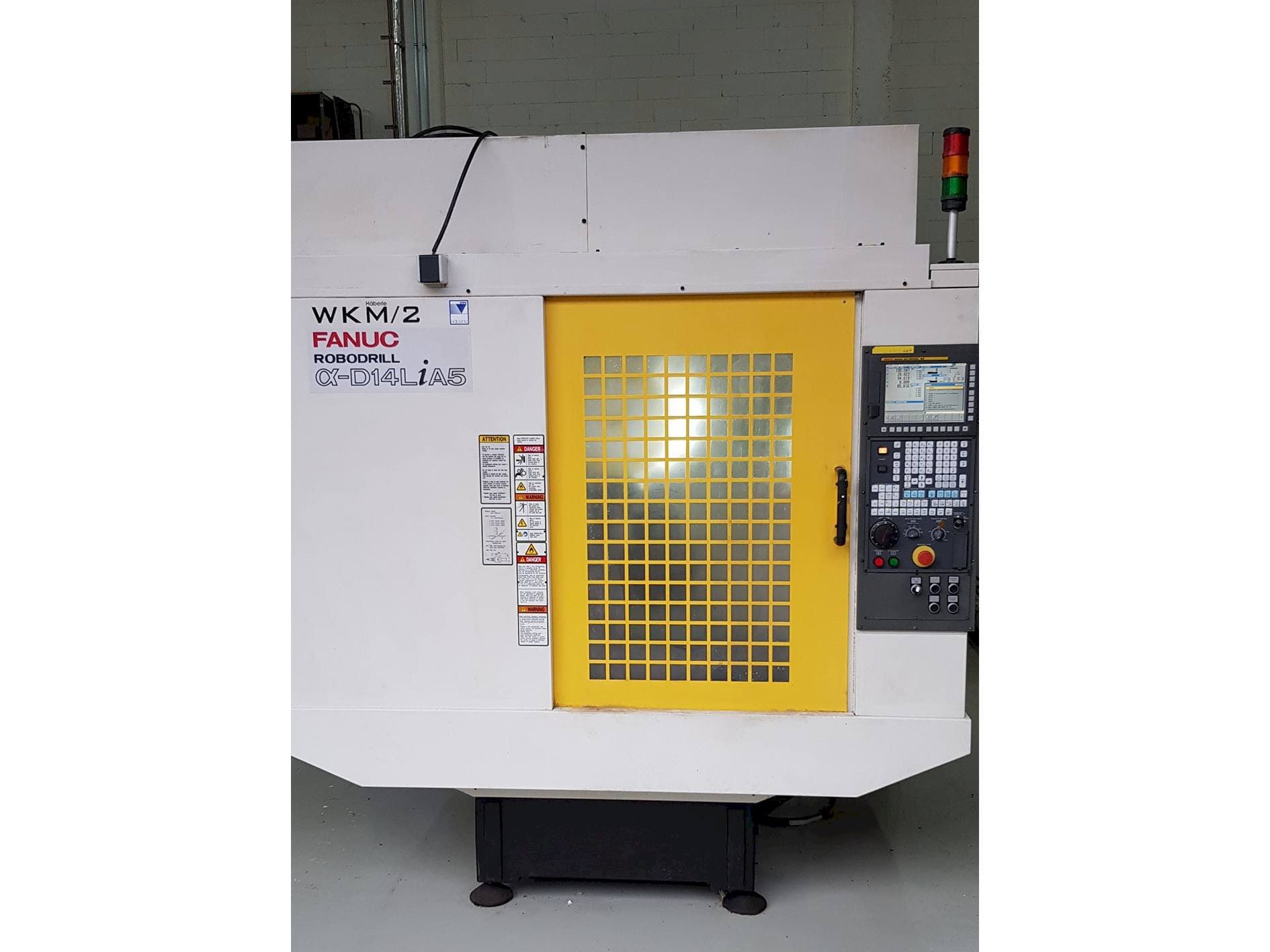

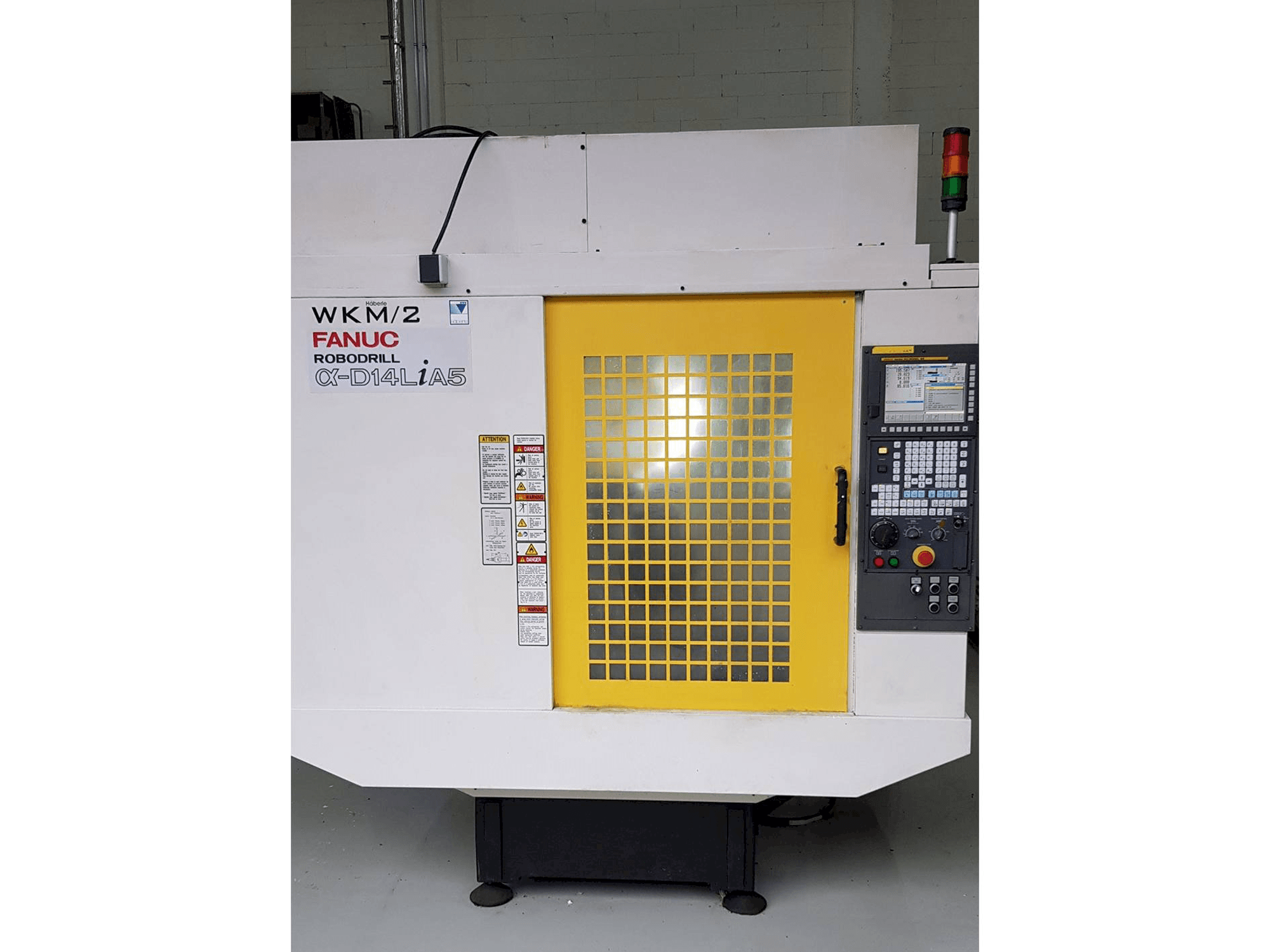

FANUC Robodrill - Häberle WKM2-B01 (A1) Vertical Machine Center

This FANUC Robodrill - Häberle WKM2-B01 (A1) Vertical Machine Center was made in the year 2014 in Japan. It is operated through a FANUC 311B5 control unit and it works with a spindle speed up to 10000 rpm. This 5 axis machine has been working for 16688 hours and counts with a table size of 850 x 410 mm

Overview

brand: FANUC
year: 2014
MODEL: Robodrill - Häberle WKM2-B01 (A1)
production hours: 16688
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FANUC Robodrill - Häberle WKM2-B01 (A1)

General Data

Machine weight: 2200 kg

Control Unit

Brand: FANUC
Model: 311B5

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 5.5 kW
Tool taper: BT30

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 330 mm

Table

Outer length: 850 mm
Outer width: 410 mm

Tools

Max weight: 3 kg
Max tool length: 200 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance table surface/spindle measuring level 250 - 580 mm with 10103
- - 13 disc places
- - Rapid traverse 36
- - 3d probe
- - Coolant drain 3" height 230 mm central

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
