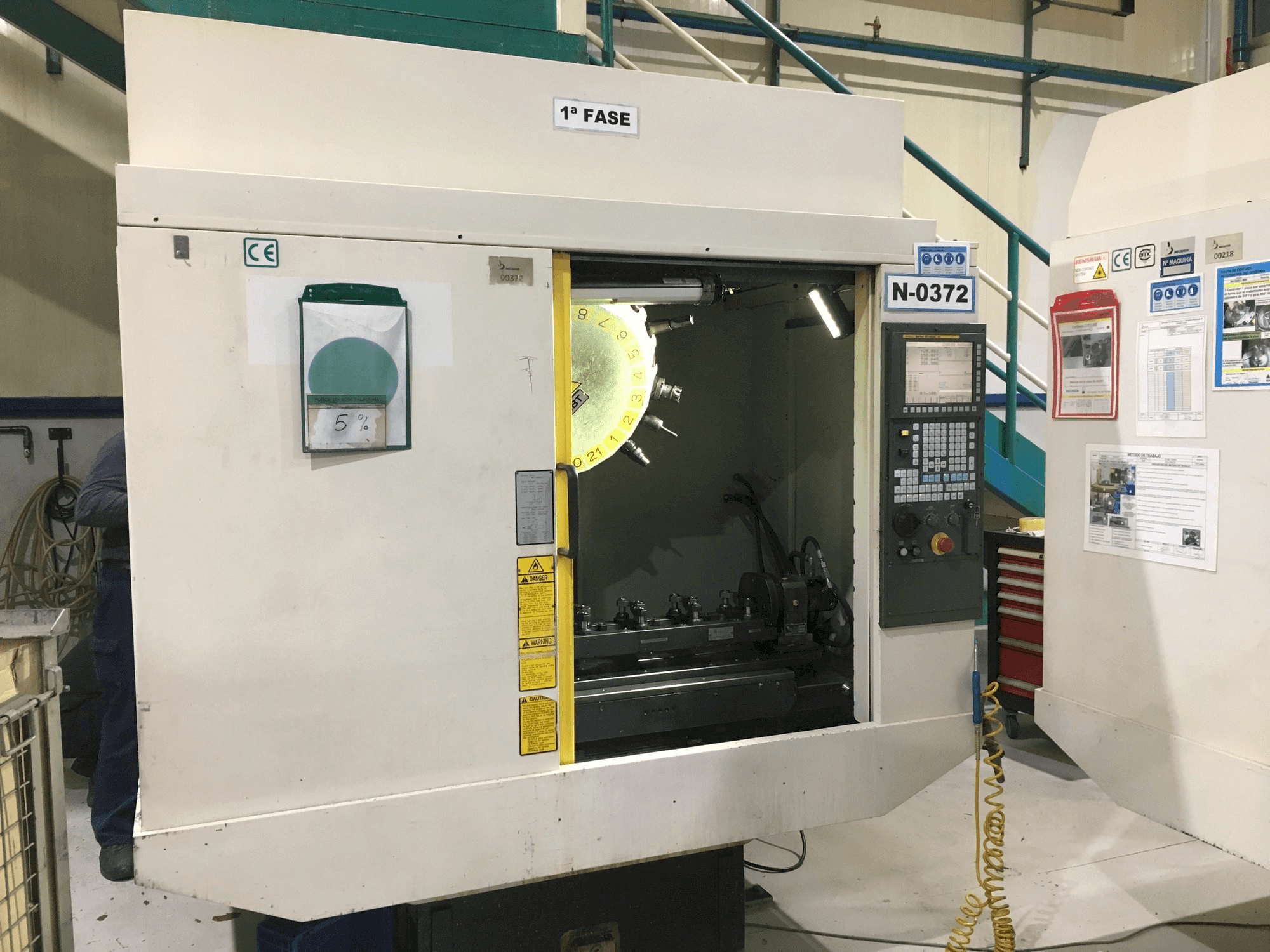

FANUC Robodrill alfa-T21iEL Vertical Machining Center

This FANUC Robodrill alfa-T21iEL Vertical Machining Center was manufactured in 2007 in Japan. It has a spindle speed range up to 24000 rpm. It is operated through a Fanuc Series 31i-Model A5 control unit. This machine comes with an automatic door opening, and a Roemheld hydraulic power unit Type 8400-244E (5L).

Overview

brand: FANUC
year: 2007
MODEL: Robodrill alfa-T21iEL
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FANUC Robodrill alfa-T21iEL

General Data

Measurements width: 2115 mm
Measurements depth: 2040 mm
Measurements height: 2600 mm
Machine weight: 2200 kg

Control Unit

Model: Series 31i-Model A5
CNC main language: Spanish
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 24000 1/MIN

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 330 mm

Workpiece

Workpiece weight: 300 kg

Table

Outer length: 850 mm
Outer width: 410 mm

Tools

Slots in storage: 21
Type of tool holder: BT30

Media

Main electronic connection: 400 V

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Automatic door opening
- - 400 blocks high speed module (400 blocks advance reading special for contouring)
- - Column uplift 100mm
- - Roemheld hydraulic power unit type 8400-244e (5l)
- - Spirsin steady rest with 4-way hydraulic rotary distributor at 200 bar
- - 4th axis spirsin 81125. F/Ø170-h + steady rest sp125. F-Ø170-h

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
