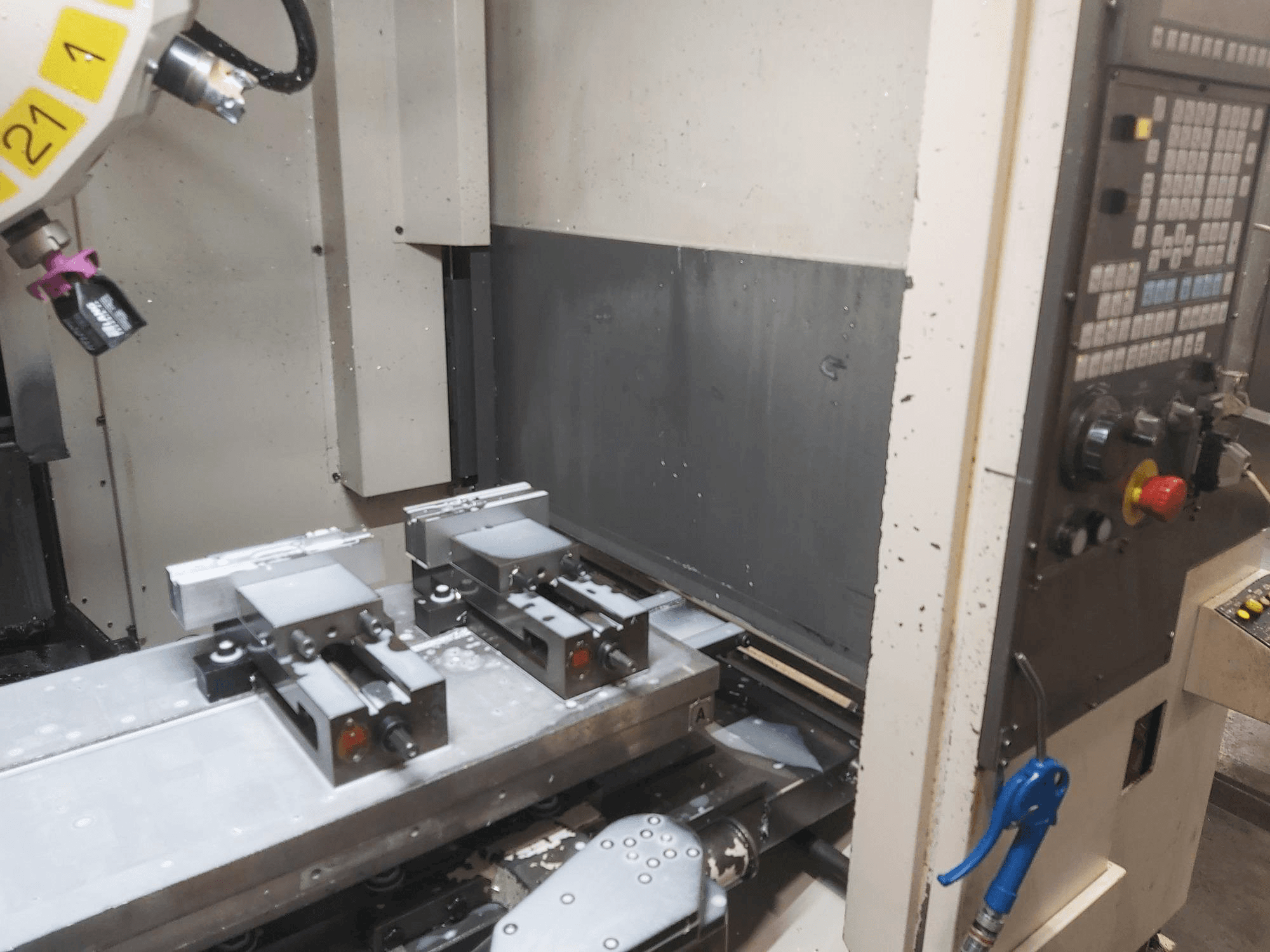

FANUC Robodrill Alpha T21iE Vertical Machining Center

This FANUC Robodrill Alpha T21iE Vertical Machining Center was made in Japan in the year 2007. It is operated through a Fanuc Series 31i - Model A5 control unit. This machine operates with a spindle speed up to 10000 rpm.

Overview

brand: FANUC
year: 2007
MODEL: Robodrill Alpha T21iE
application type: Milling
Location: Finland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FANUC Robodrill Alpha T21iE

Control Unit

Model: Series 31i - MODEL A5
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 330 mm

Table

Outer length: 850 mm
Outer width: 400 mm

Tools

Slots in storage: 21
Max weight: 2 kg
Max tool diameter: 80 mm
Max tool length: 200 mm
Type of tool holder: BT30

Additional Equipment

- Pallet changer 2 pallets

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
