FANUC - Robodrill Alpha-T21iELAT-MIL-FAN-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

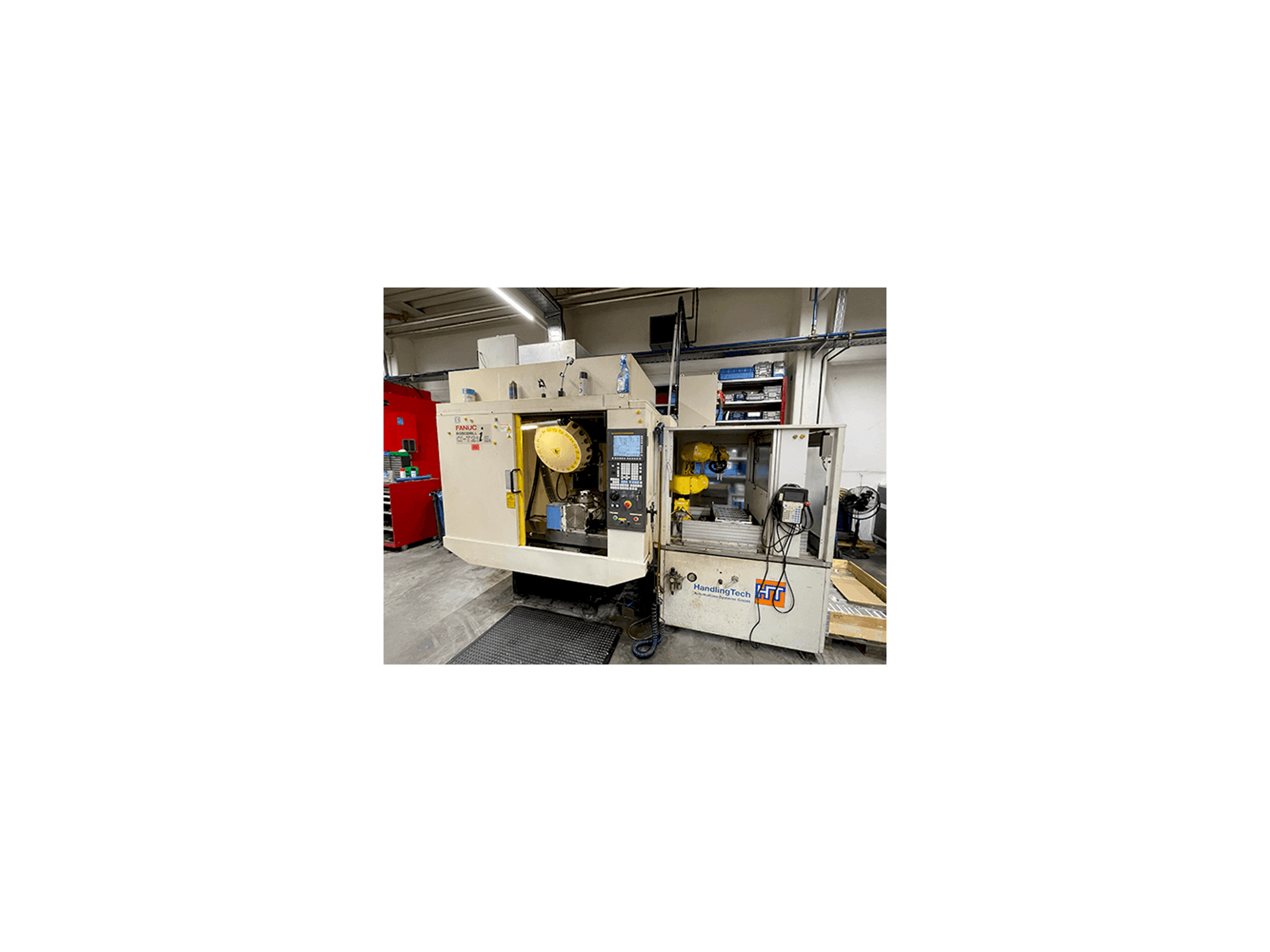

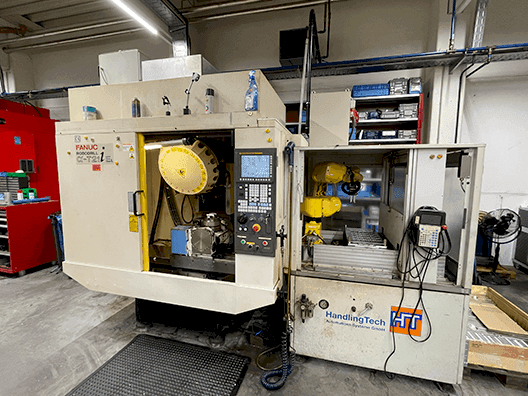

Fanuc Robodrill Alpha-T21iEL Vertical Machining center + Fanuc LR Mate 200iB robot loading

This Fanuc Robodrill Alpha-T21iEL Vertical Machining center + Fanuc LR Mate 200iB robot loading was manufactured in the year 2005 in Japan and has 30935 production hours. It is equipped with a Fanuc Series 31i-Model A5 control unit and has 4 axis. The machine has a spindle speed of 24000 rpm.

Overview

brand: FANUC
year: 2005
MODEL: Robodrill Alpha-T21iEL
production hours: 30935
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - FANUC Robodrill Alpha-T21iEL

Control Unit

Model: Series 31i-Model A5
Brand: FANUC

Main drive

Spindle speed range: 24000 1/MIN
Spindle motor power: 4 kW
Number of axis: 4

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 330 mm

Table

Outer length: 850 mm
Outer width: 410 mm
Table load: 250 kg

Additional Equipment

- Renishaw probe + Renishaw interface
- Fanuc LR Mate 200iB robot loading
- 1 x 2 jaw chucks
- 1 x 3 jaw chuck
- 101 tool holder
- Embossing station incl. vice

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Tool holder: bt30
- - Feed rate rapid traverse: x/y/z axis: 54 m/min
- - Distance from table to spindle nose: 250-580 mm
- - Tool changer - type: umbrella
- - Number of tools in magazine: 21

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
