- Fanuc Robodrill ALPHA T21iFA Vertical Machining center

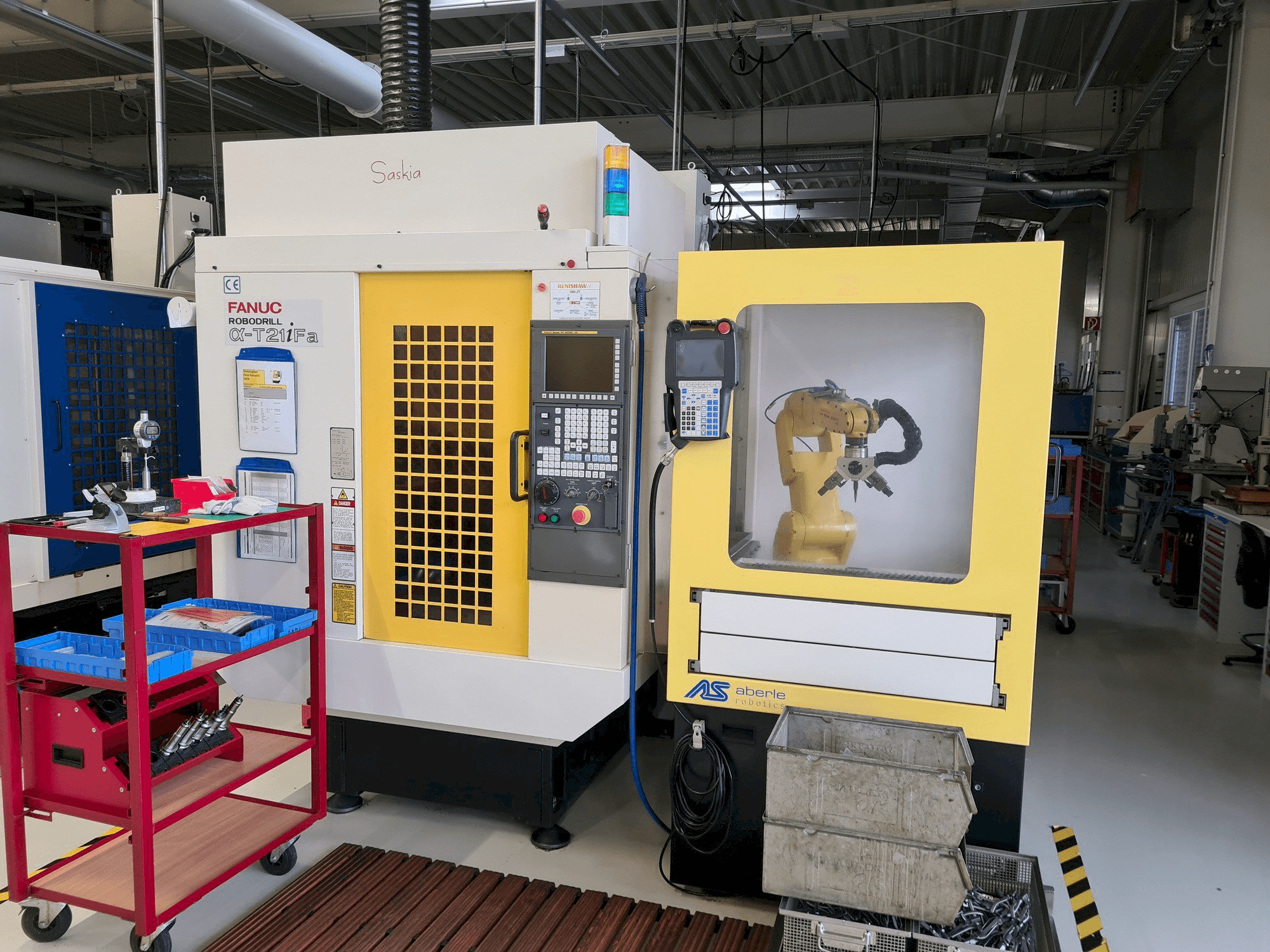

This Fanuc Robodrill ALPHA T21iFA Vertical Machining Center was manufactured in the year 2011 and has 33661 hours. It is equipped with a Fanuc Series 31i-MODEL A5 control unit and has 4 axis. The machine has a spindle speed of 10000 rpm and comes with robot cell and robot.
Overview
- brand: FANUC
- year: 2011
- MODEL: Robodrill ALPHA T21iFA
- production hours: 33661
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Fanuc
Technical Information - FANUC Robodrill ALPHA T21iFA
Control Unit
- Brand: Fanuc
- Model: Series 31i-MODEL A5
Main drive
- Spindle speed range: 10000 1/MIN
- Number of axis: 4
Movement
- X-AXIS Movement: 500 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 330 mm
Additional Information
- Technical Machine Benefits:
- - Machine comes with robot cell and robot
- - Acceleration in x/ y/ z 1. 5 g, rapid traverse speed 54000 mm/min
- - Bbt30 big plus tool holder
- - Machine tool in cast iron construction controlled axes
- - Axis drives fanuc alpha i. Ac servo motors
- - Universal clamping table
- - Interior lighting
- - Stand elevation 100 mm
- - Automatic vogel "centralised oil lubrication" nano-interpolation of the servo axes
- - Thermal compensation (xyz axis)
- Qualitative Machine Benefits:
- - Memory 512 kb / 1280 m, 1000 registerable programmes
- - 48 additional workpiece, coordinate systems (g54. 1), multi-step skip (g31 p1-4) al contour control 1(30 blocks preview) helical interpolation
- - Coolant unit 300l with bed flushing
- - 20 bar ikz pump, fanuc own torque motor with an indexing - indexing speed of 0. 28 sec. At 180° - max. Max. Speed 200 rpm. (4th axis) rotary feed-through special 180 ar omp 40 probe
- - Large coolant tank with pump for external cooling, bed flushing and ikz pump with 20 bar
- - Filtration takes place via plug-in sieves andmahle slotted filters
- - The system is not a coolant cleaning system.
- - Chips fall into trough excl. Conveyor etc.
- - Splash 1 spraying device splash" rinsing gun, renishaw workpiece measuring system fanuc rotary axis ddr260ib
- - Permanently installed in 300 | tank flushing gun with its own pump output max. 4bar (at 20l/min) tool breakage detection tool breakage detection system incl. Accessories tactile, renishaw
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
