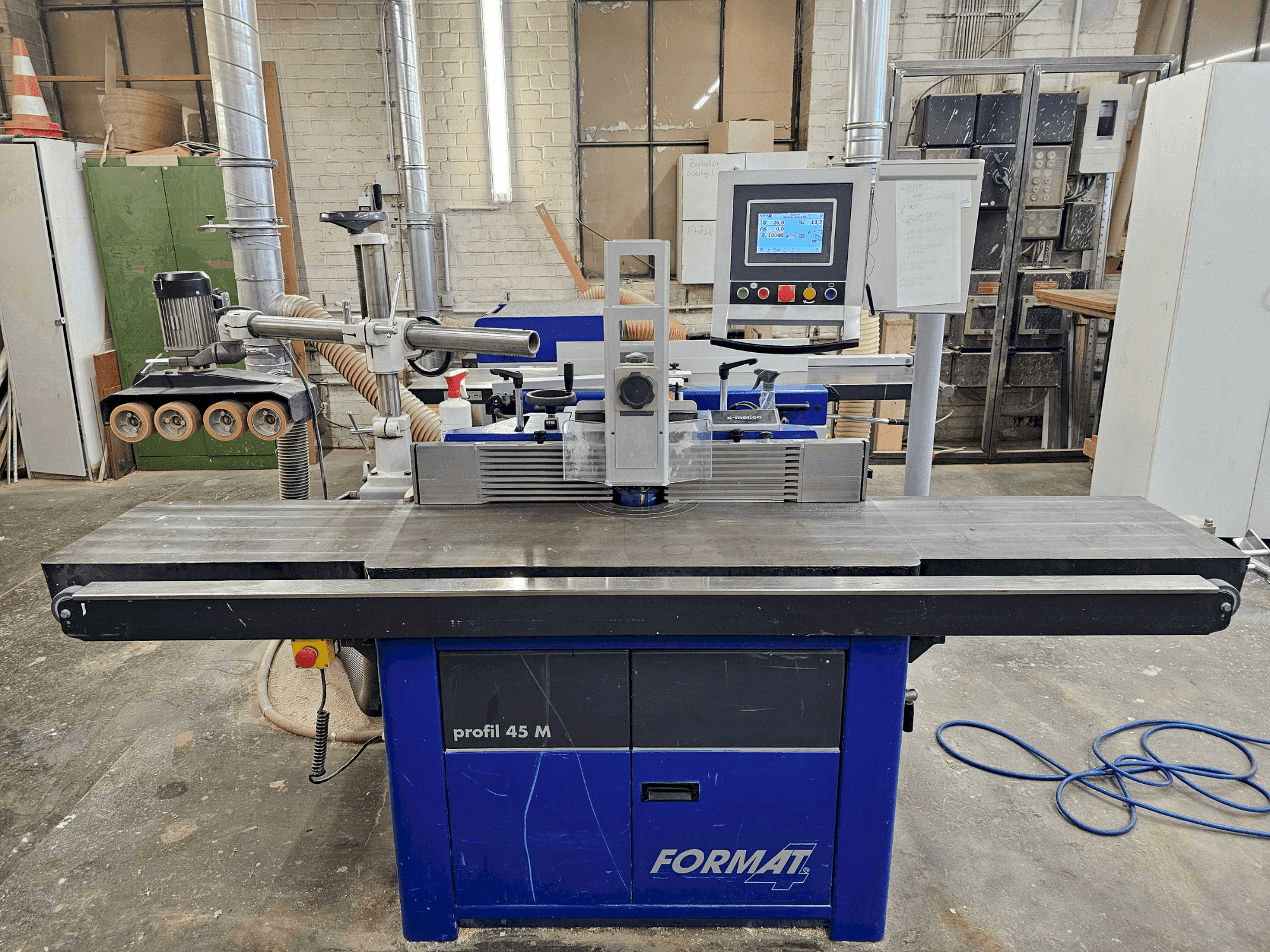

➤ Used FELDER Format Profil 45M x-motion | Woodworking

This FELDER Format Profil 45M x-motion was manufactured in 2013. A robust wood milling machine featuring a milling spindle D-30mm, adjustable to a height of 140mm above the table, and a maximum milling diameter of 250mm. It offers five speeds ranging from 3500 to 10000 rpm and includes a cast table extension of 670mm on both sides. Ideal for precise woodwork, the FELDER Format Profil 45M x-motion machine we have for sale. Contact us for further details.

Overview

brand: FELDER
year: 2013
MODEL: Format Profil 45M x-motion
application type: Profiling
Location: Germany
machine type: Spindle Moulder
availability: Sold

Technical Information - FELDER Format Profil 45M x-motion

General Data

Measurements depth: 500 mm (670mm on both sides)

Main drive

Spindle speed range: 10000 rpm 1/MIN
Number of axis: 2

Table

Outer length: 1160 mm
Outer width: 770mm

Additional Equipment

- Set: INTEGRAL-A
- 3-phase CEE coupling
- Swivelling device for feed

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rail length: 500mm
- - Milling fence length: 250mm // milling stop: ‘250’ for profile 45 // max milling diameter: 250mm // milling spindle diameter: 30mm
- - Groove height: 140mm above table
- - Fine adjustment range: +35mm to -10mm
- - Extension frame length: 2200mm
- - Safety feature: emergency stop
- - Motor frequency: 50 hz
- - Machine stand profile: 45m
- - Table opening: 320mm
- - Milling spindle Ø 30 mm, 140 mm usable height via table phases
Qualitative Machine Benefits:
- - Adjustability: foldable up and down

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
