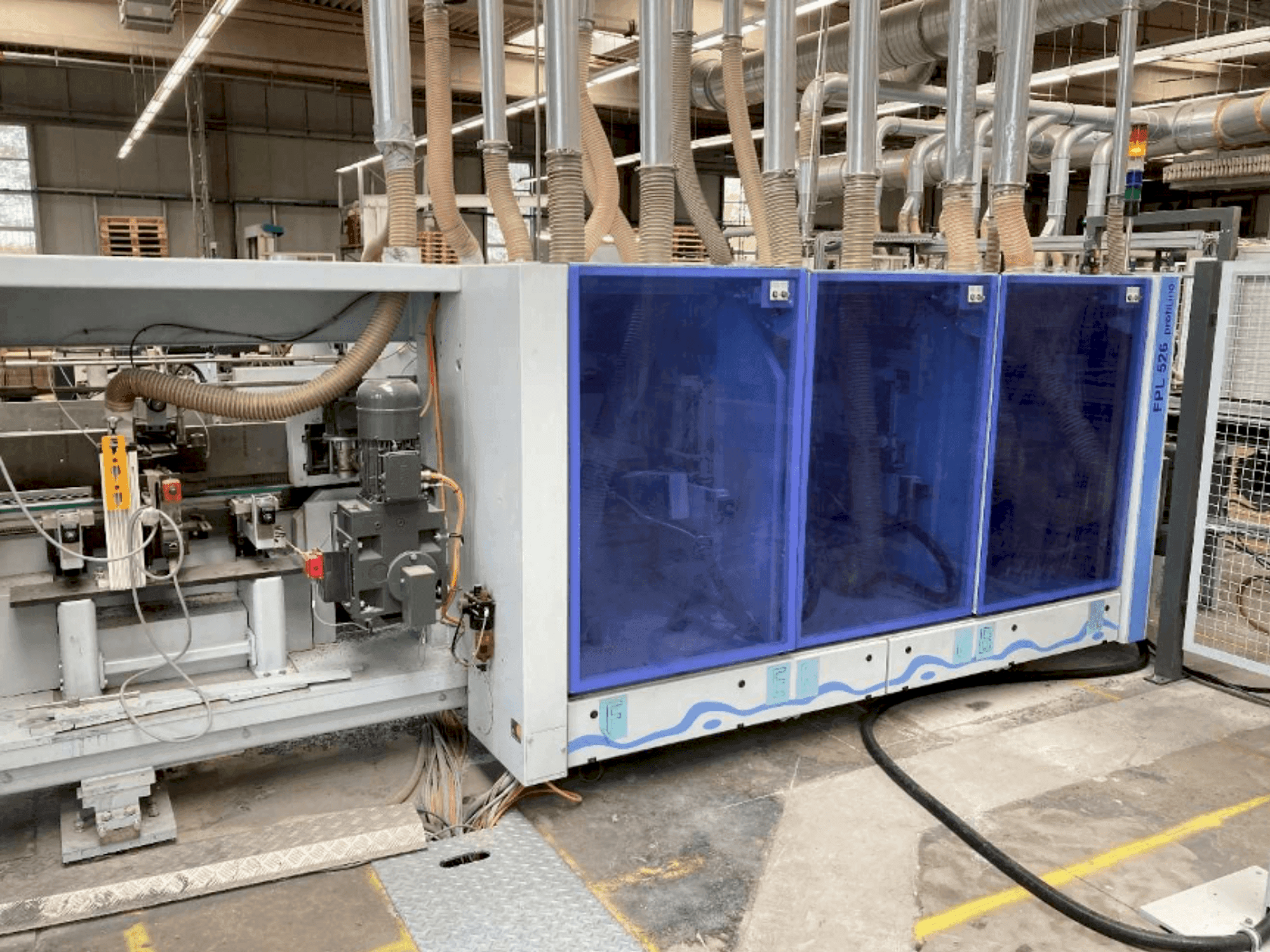

HOMAG - PROFI FPL 525/6/04/PW/V LVT Profiling SystemDE-PRO-HOM-2011-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Mains voltage: 400 v / 50 hz, 3 phases with loadable neutral conductor
  • - Operating voltage: 400 v / 50 hz
  • - Control voltage: 230 v / 50 hz + 24 v / dc
  • - Electronic standard: din, din en, din iso
  • - Material: lvt
  • - Formats: length: 500 mm – 2,000 mm, width: 140 mm – 600 mm, thickness: 4 mm – 8 mm, format 1: 1,200 mm x 140 mm, format 2: 1,500 mm x 250 mm, format 3: 600 mm x 300 mm
  • - Feed speeds: longitudinal machine: max. 130 m/min, cross machine: max. 40 m/min
  • - Cam distance: 300 mm (fixed)
  • - Cam height: 2. 8 mm extended
  • - Raw panels: raw panel length: 600 – 2,000 mm, raw panel width: 140 – 600 mm, raw panel thickness: 4 – 8 mm
• Qualitative Machine Benefits:
  • - Electrical connected load (installed): approx. 285 kw
  • - Required dust extraction capacity: approx. 36000 m3/h
  • - Compressed air consumption: approx. 3000 nl/min
  • - Operating pressure: min. 6 bar
  • - The system efficiently loads semi-finished planks via an automatic transport system, separates, and conveys them for longitudinal and transverse milling operations.
  • - Post-milling, panels undergo cleaning, visual inspection, and packaging into parcels.
  • - The process includes automatic film wrapping and stacking onto euro pallets, ensuring streamlined production flow.
