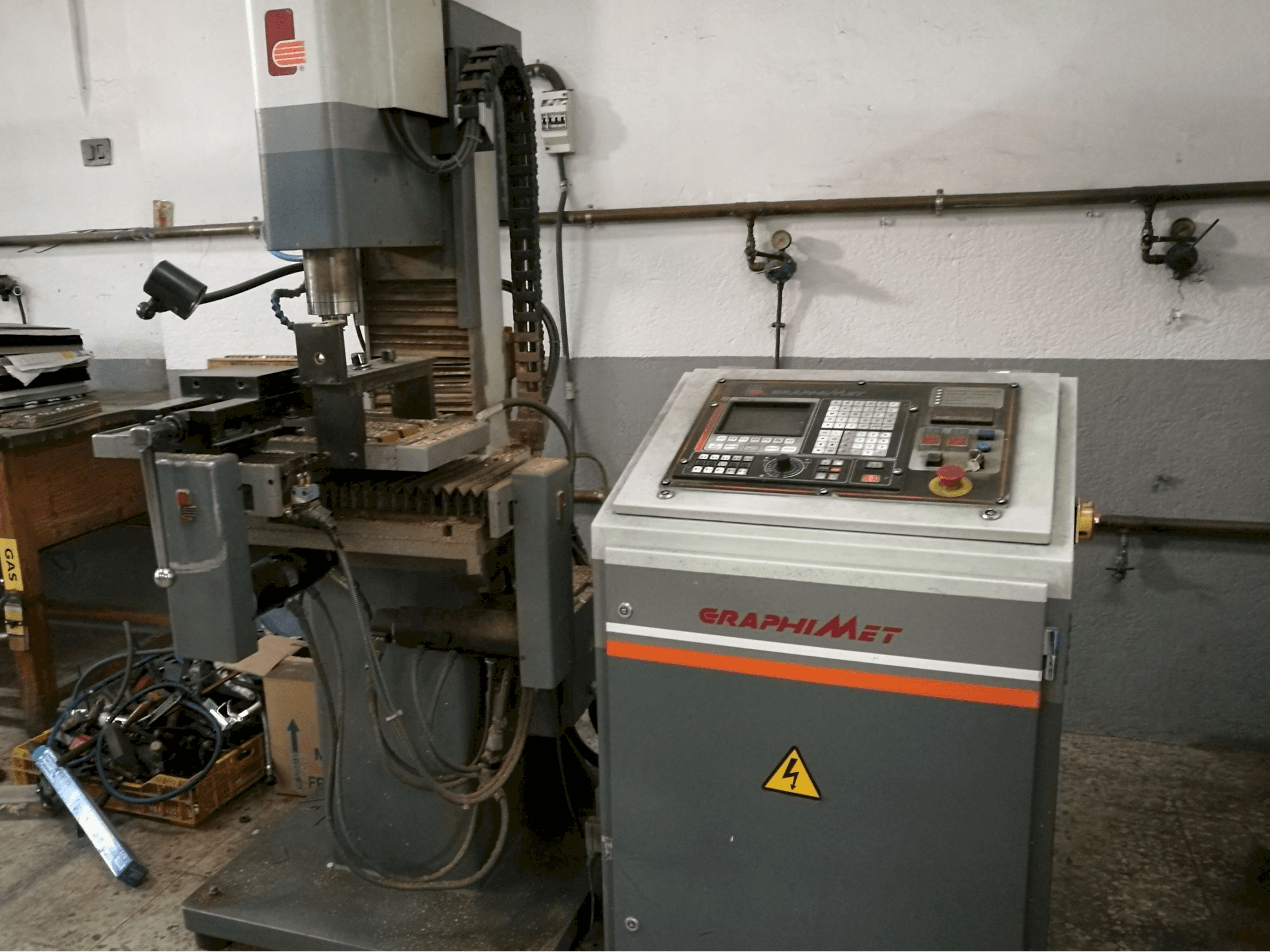

GRAPHIMET A-2 Milling Machine

This GRAPHIMET A-2 is a Milling Machine from 1999, produced in Spain with a production time of 7000 hours. Equipped with a Fagor 8025-M Control unit, this machine has been mainly working with brass during the past. Its working table counts with a surface of 440 x 250 mm and its spindle speed can work up to 25000 rpm.

Overview

brand: GRAPHIMET
year: 1999
MODEL: A-2
production hours: 7000
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FAGOR

Technical Information - GRAPHIMET A-2

General Data

Measurements width: 985 mm
Measurements depth: 792 mm
Measurements height: 1837 mm
Machine weight: 700 kg

Control Unit

Model: 8025-M
CNC main language: Spanish
Brand: FAGOR

Main drive

Number of spindles: 1
Spindle speed range: 3000-25000 rpm 1/MIN

Movement

X-AXIS Movement: 330 mm
Y-AXIS Movement: 190 mm
Z-AXIS Movement: 280 mm

Workpiece

Workpiece weight: 200 kg

Table

Outer length: 440 mm
Outer width: 250 mm

Tools

Max tool diameter: 10 mm

Media

Main electronic connection: 380 V / 50 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
