GROB G350 Milling

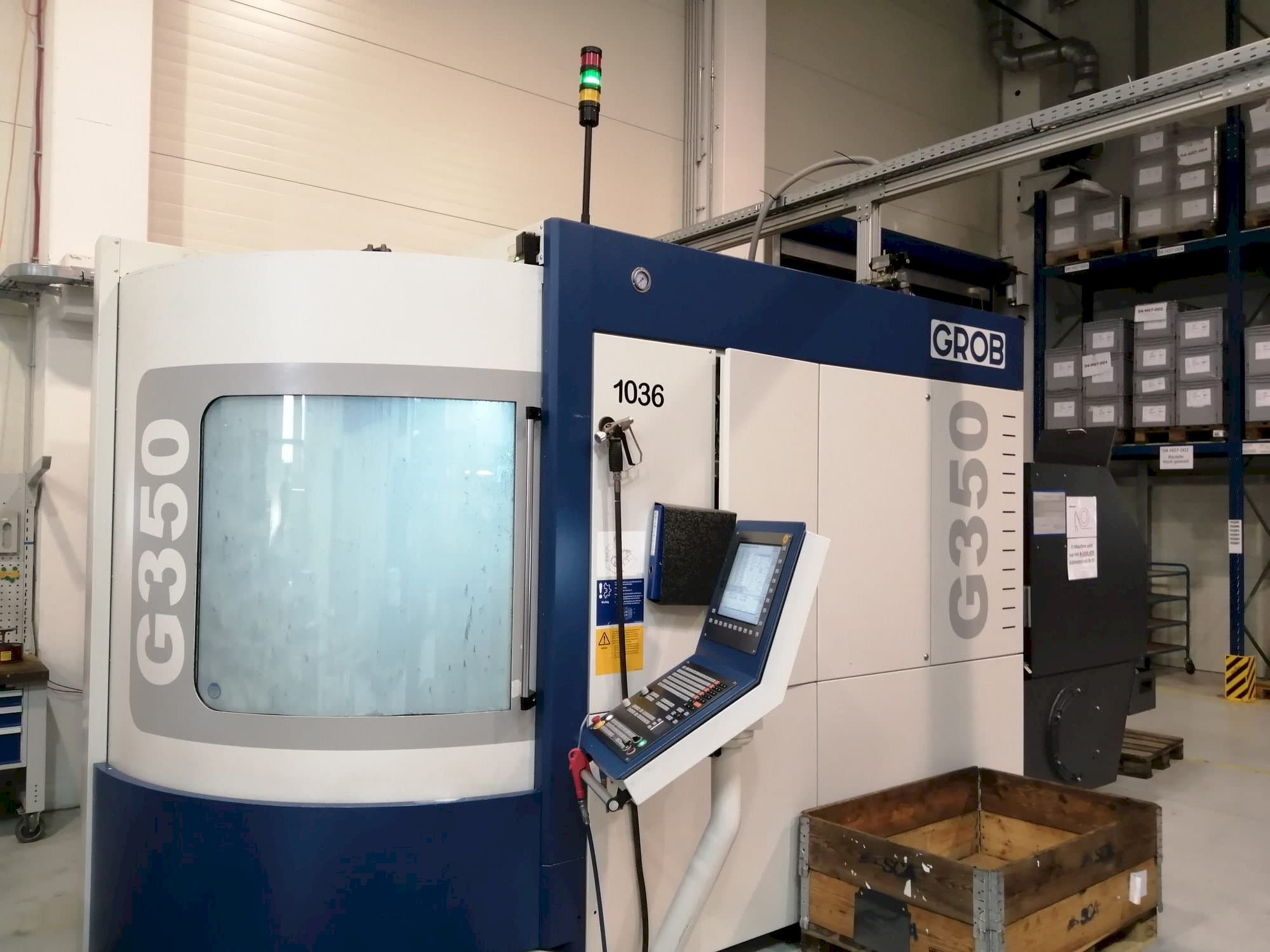

This GROB G350 Universal Machining Center was built in the year 2015. It is equipped with a Heidenhain iTNC 530 control unit. This 5 axis machine can perform with a spindle speed range up to 28000 rpm.

Overview

brand: GROB
year: 2015
MODEL: G350
production hours: 13321
application type: Milling
Location: Austria
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - GROB G350

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 28000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 600 mm
X-AXIS Rapid traverse: 65 m / min
Y-AXIS Movement: 770 mm
Y-AXIS Rapid traverse: 42 m / min
Z-AXIS Movement: 805 mm
Z-AXIS Rapid traverse: 90 m / min

Table

Table load: 400 kg

Tools

Type of tool holder: HSK-A63

Clamping unit

Clamping force: 570 mm KN

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Nc swiveling rotary table: a-axis: -185 ° / + 45 °, b-axis: 360 °
- - Tool magazine: 40 stations
- - Tool length (max. ): 365 mm
- - Coolant management: ikz system with paper belt filter- 38 bar
- - Tool measurement: laser, blum
- - Workpiece measurement : infrared measuring probe

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
