➤ Used HAAS SL 20 TBHE For Sale | gindumac.com

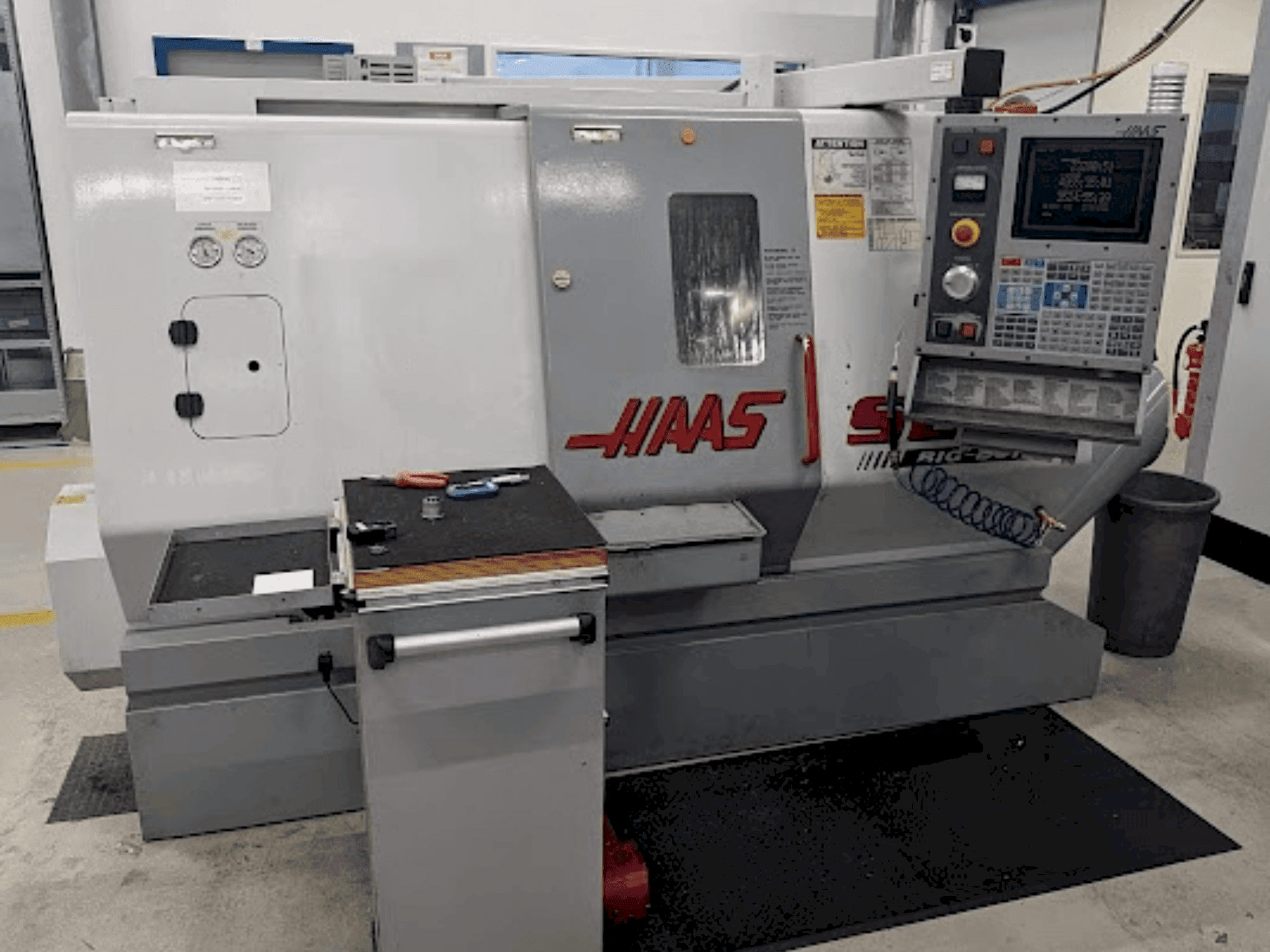

This HAAS SL 20 TBHE horizontal turning machine was manufactured in 2001. It features a maximum turning length of 508 mm and a rotation diameter of 261.6 mm. Equipped with a CNC Haas control, it supports a spindle speed up to 3500 rpm and a motor power of 14.9 kW. Ideal for handling titanium and implant materials. If you are looking to get high-quality turning capabilities consider the HAAS SL 20 TBHE machine we have for sale. Contact us for more information.

Overview

brand: HAAS
year: 2001
MODEL: SL 20 TBHE
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: HAAS

Technical Information - HAAS SL 20 TBHE

General Data

Measurements width: 3149.6 mm
Measurements depth: 1574.8 mm
Measurements height: 1828.8 mm
Machine weight: 4083.5 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 3500 rpm 1/MIN
Spindle motor power: 14.9 kW
Spindle bore: 64.7 mm
Number of axis: 2

Movement

X-AXIS Movement: 214.6 mm
Y-AXIS Movement: 508 mm

Workpiece

Workpiece weight: 4083.5 kg

Turret

Number of turrets: 1
Tool taper: VDI40

Tools

Number of index: 10

Additional Equipment

- Tailstock: Yes, Programmable

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose: a2-6, e185
- - Driven tool stations: 10
- - Turning length (max. ): 508 mm
- - Rotation diameter (max. ): 261. 6 mm
- - Turning diameter over bed: 584. 2 mm
- - Turning diameter over slide: 241. 3 mm
- - Center distance: 609. 6 mm
- - Parts catcher: yes
- - Measuring arm: yes

Extra information

- The machine only ran titanium and implant material and was only used for prototyping.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
