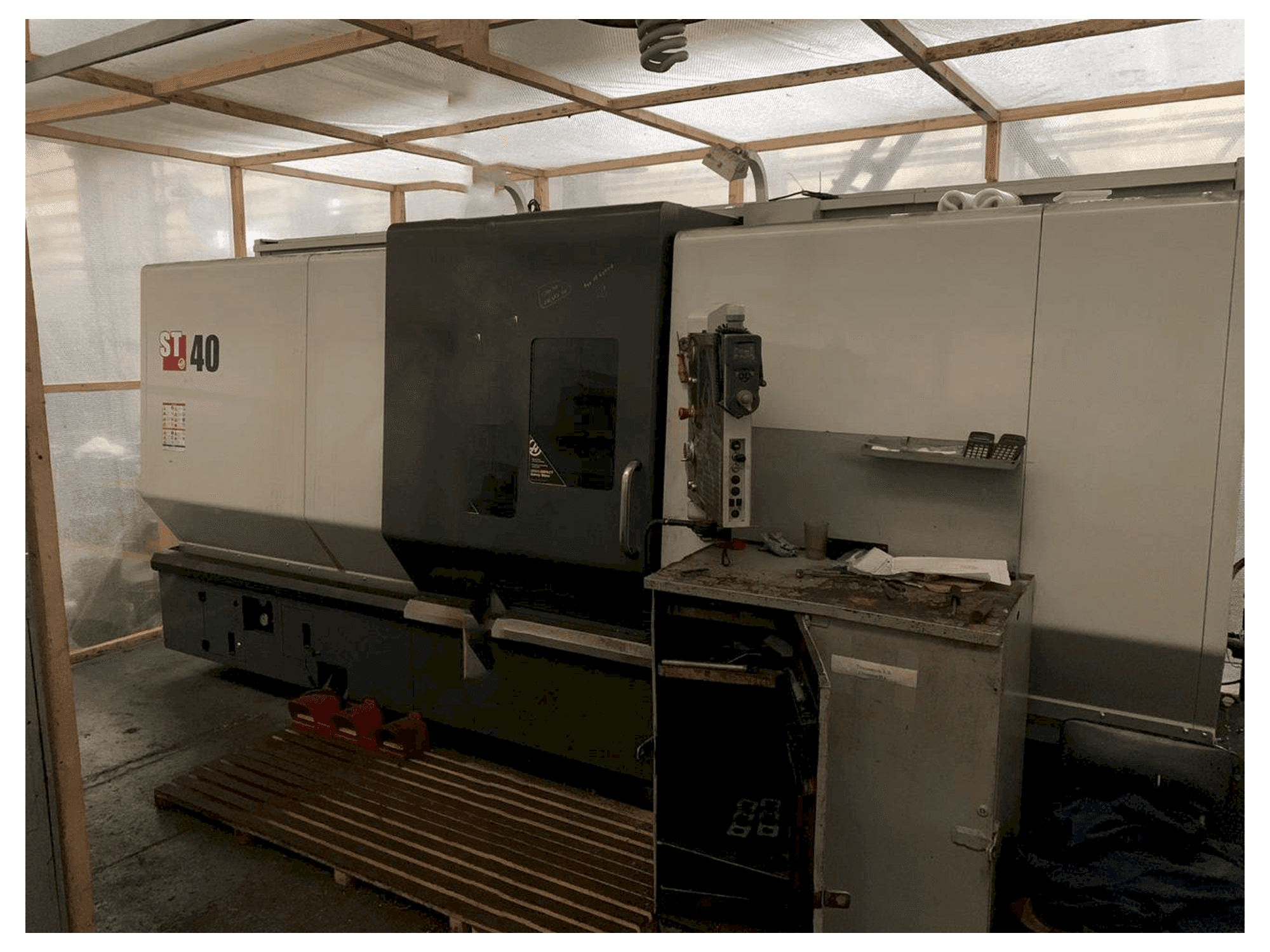

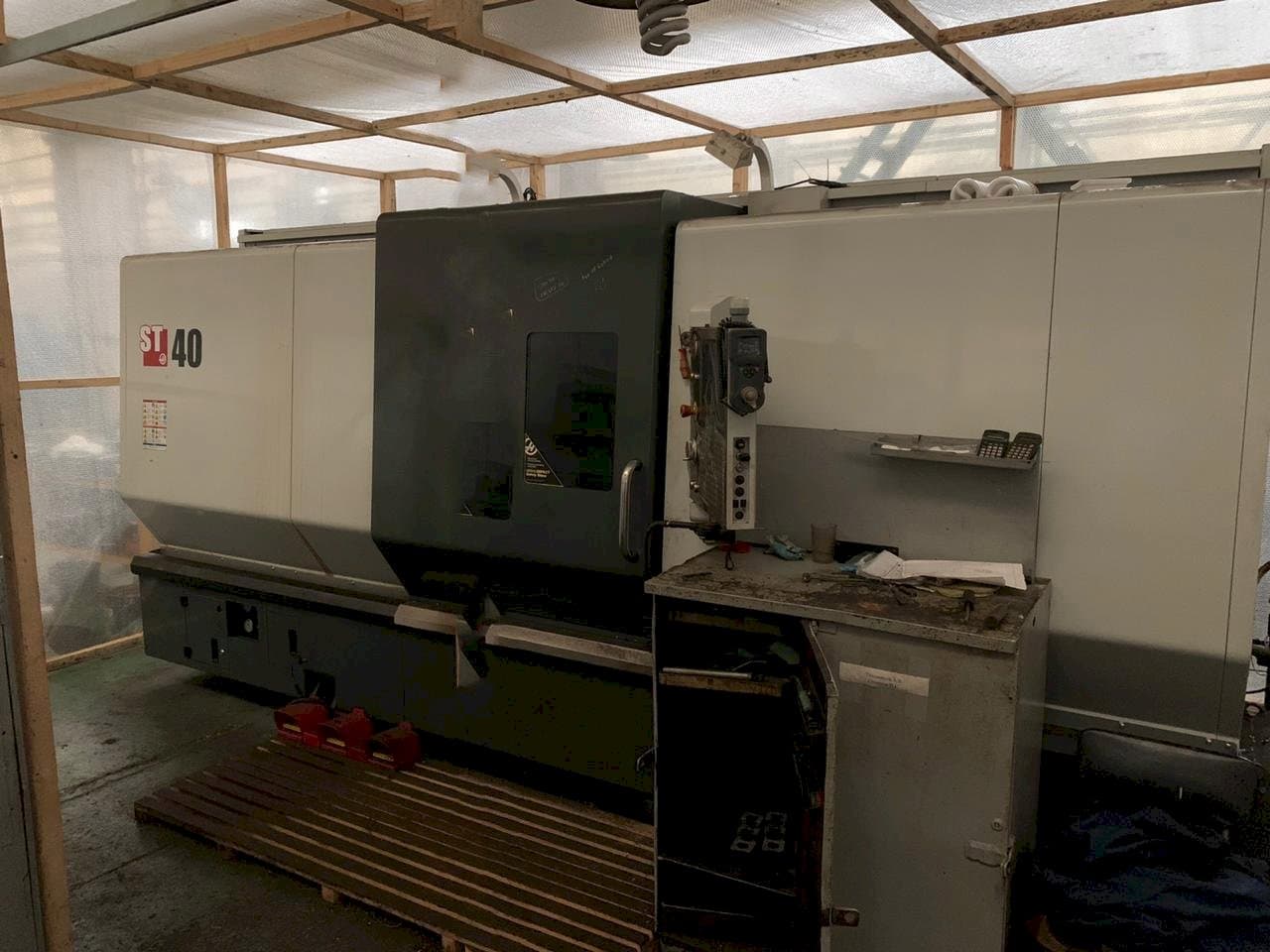

This HAAS ST-40 Lathe was made in the United States in the year 2013. It has been operative for 3969 hours, which 1192 hours are cutting time. It is operated through a control unit of the same brand. This machine can work with a spindle speed up to 2400 rpm.

Overview

brand: HAAS
year: 2013
MODEL: ST-40
production hours: 3969
application type: Turning
Location: Russia
machine type: Horizontal Turning Machine
availability: Sold

Technical Information - HAAS ST-40

Main drive

Spindle speed range: 2400 1/MIN

Movement

X-AXIS Movement: 432 mm
Z-AXIS Movement: 1118 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Coolant supply system with 360 l tank
- - Fully enclosed airtight safety fence
- - Servomotors for axial movement with direct torque transmission
- - Diameter of the hole in the spindle 117, 3 mm
- - Max. Installed diameter above the bed 876 mm
- - Max. Installed diameter above the carriage 648 mm
- - Max. Processed diameter (depends on the revolver) 648 mm
- - Max. Processing length (without chuck) 1118 mm
- - Diameter of the 3-cam cartridge 381 mm
- - Max. Diameter of the processed bar 102 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
