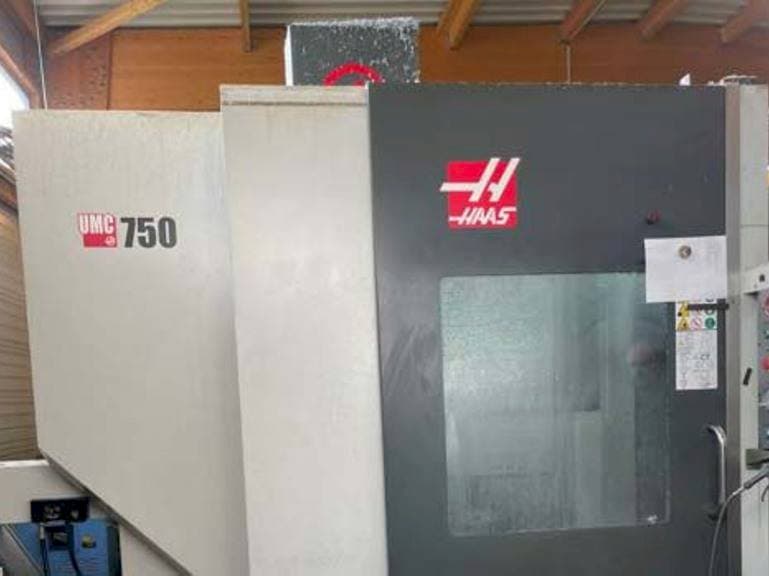

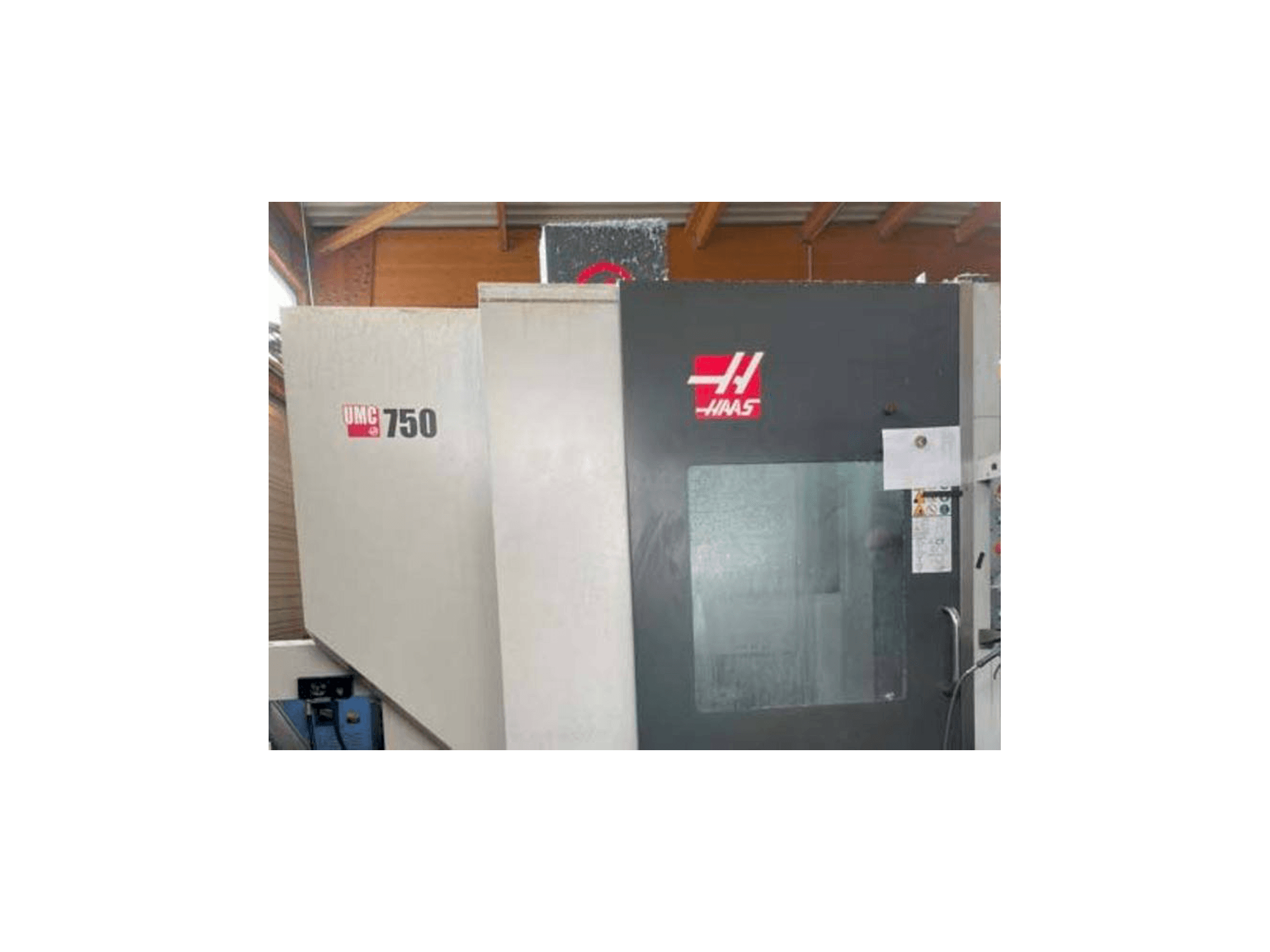

- HAAS UMC 750 Vertical Machining center
This HAAS UMC 750 Vertical Machining center was manufactured in the year 2017. It is equipped with a HAAS control unit and has 5 axis. The machine has a spindle speed of 12000 rpm.
Overview
- brand: HAAS
- year: 2017
- MODEL: UMC 750
- application type: Milling
- Location: France
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: HAAS
Technical Information - HAAS UMC 750
General Data
- Measurements width: 4270 mm
- Measurements depth: 2410 mm
- Measurements height: 3580 mm
- Machine weight: 6500 kg
Control Unit
- Brand: HAAS
Main drive
- Spindle speed range: 12000 1/MIN
- Spindle motor power: 22.4 Kw
- Number of axis: 5
Movement
- X-AXIS Movement: 762 mm
- X-AXIS Rapid traverse: 30.5 m/min
- Y-AXIS Movement: 508 mm
- Y-AXIS Rapid traverse: 30.5 m/min
- Z-AXIS Movement: 508 mm
- Z-AXIS Rapid traverse: 30.5 m/min
- B-AXIS Movement: 120° to 35-° MM
- C-AXIS Movement: 360 MM
Table
- Outer length: 500 mm
- Distance between: 102-610 mm
Tools
- Slots in storage: 40
- Type of tool holder: CT 40
Additional Information
- Technical Machine Benefits:
- - Probing tools length and diameteroptical probe parts
- - Maximum weight of the piece 300 kg
- - Equipment chip conveyor, tool presetting, spindle coolant
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
