- HAAS VF-2 Vertical machining center

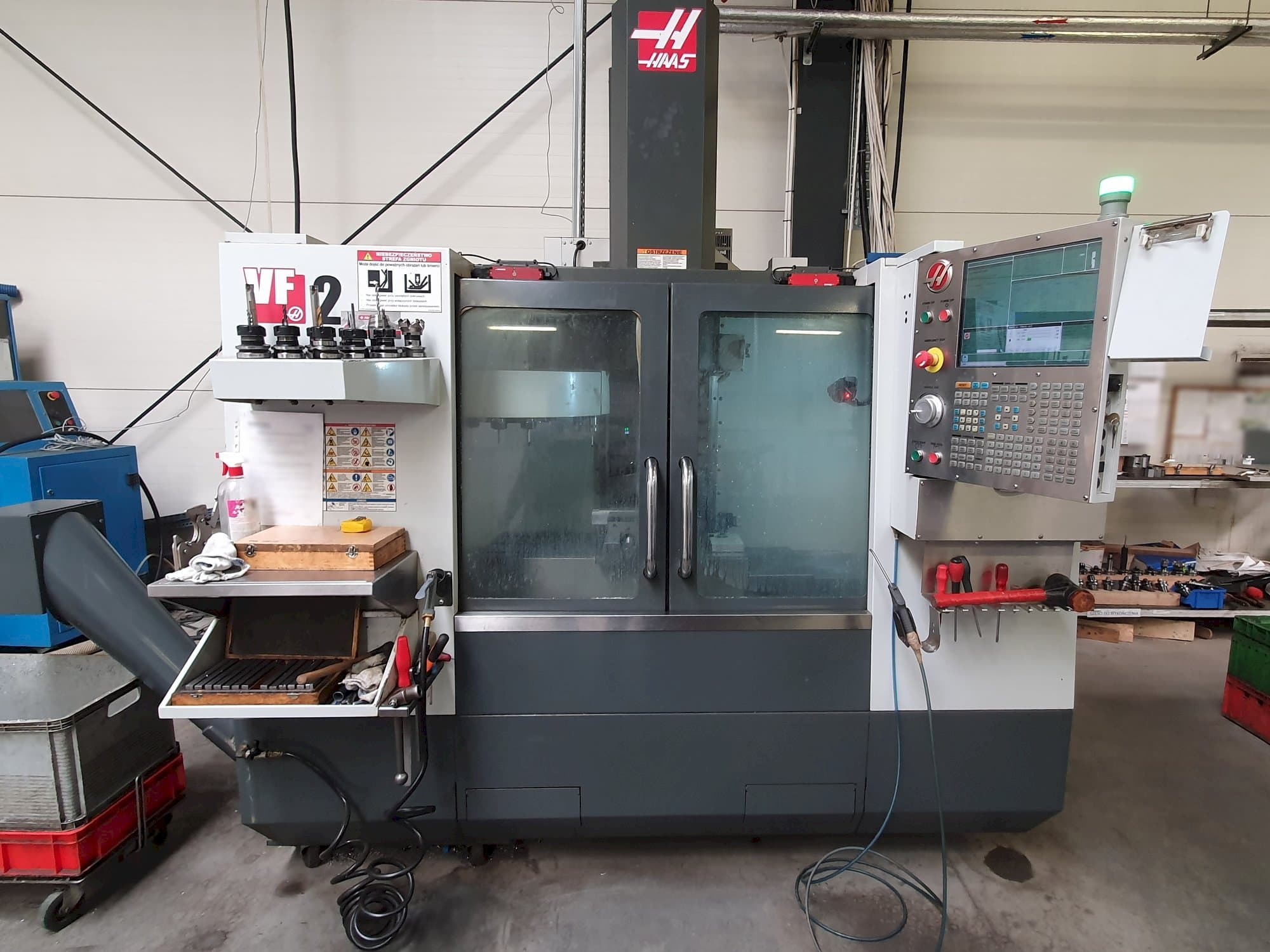

This HAAS VF-2 Vertical machining center was manufactured in the United States in the year 2015. This 3 axis machine is operated through a control unit of the same brand. It has a spindle speed up to 8100 rpm. It has a 914 x 356 mm table. Machine in very good condition.
Overview
- brand: HAAS
- year: 2015
- MODEL: VF-2
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HAAS
Technical Information - HAAS VF-2
General Data
- Measurements width: 2790 mm
- Measurements depth: 2360 mm
- Measurements height: 2655 mm
- Machine weight: 3320 kg
Control Unit
- Brand: HAAS
Main drive
- Spindle speed range: 8100 rpm 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 762 mm
- Y-AXIS Movement: 406 mm
- Z-AXIS Movement: 508 mm
Table
- Outer length: 914 mm
- Outer width: 356 mm
Media
- Main electronic connection: 354-488 / 50-60 Hz
Additional Equipment
- - AUGER screw chip ejector
- - P-COOL - programmable position of coolant nozzles
- - PMDS - preparation for probe work
- - WIPS-R - probe set for tool and workpiece measurement with SOM, COORD, MACRO
- - ENET network card
- - Workpiece clamping vice
- - Several tool holders, without tools
Additional Information
- Technical Machine Benefits:
- - Tool magazine (atc): 20 pcs
- - Electronic knob
- - 15" lcd monitor and usb connector
- - Spindle cooling system
- - Tool storage: 20 positions
- - Spindle cone blow-off system
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
