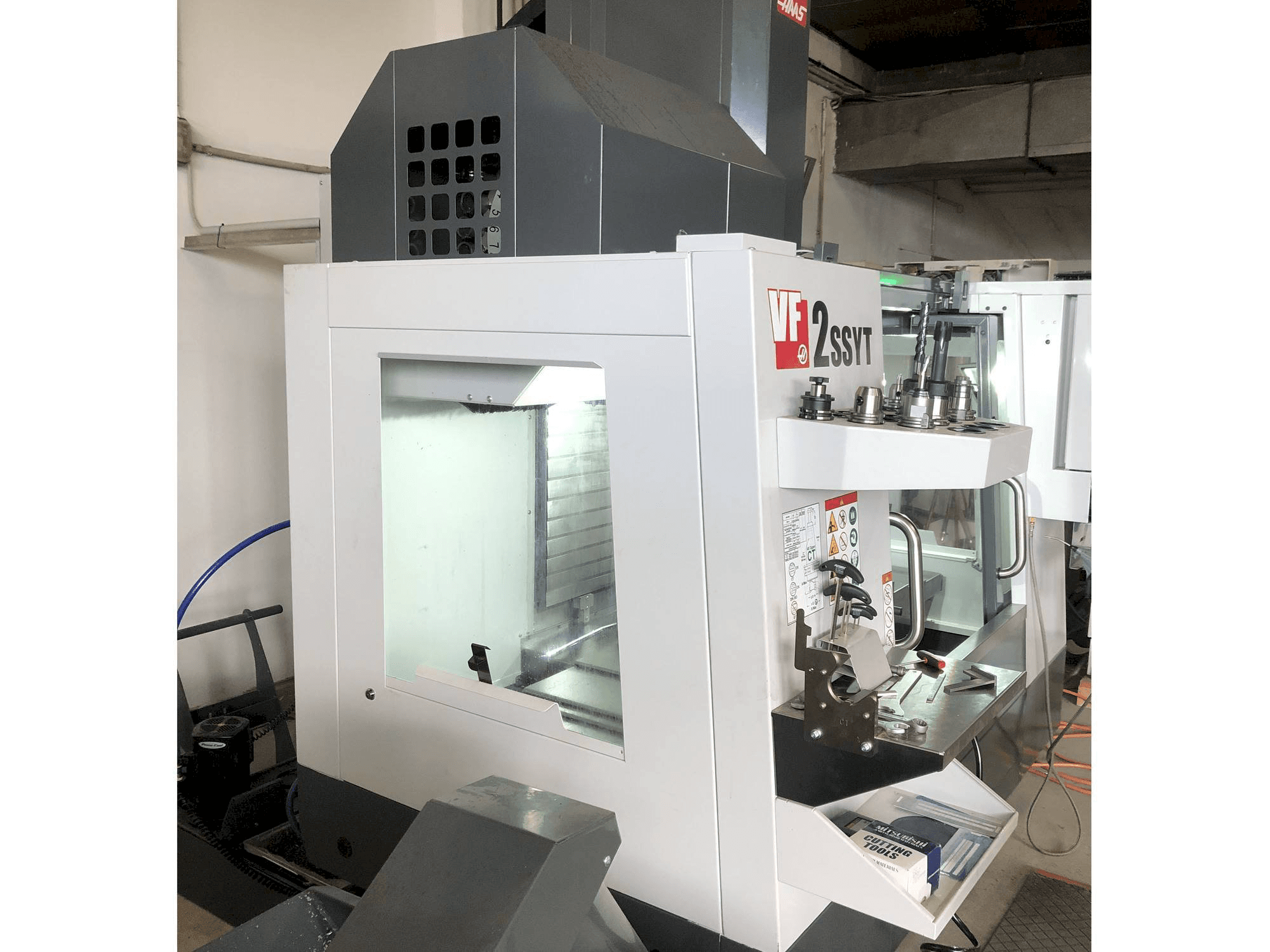

This HAAS VF-2SSYT Vertical Machining Center was manufactured in the year 2019 in the United States. It operates with a spindle speed up to 12000 rpm and a table with a dimension of 914 x 457 mm.

Overview

brand: HAAS
year: 2019
MODEL: VF-2SSYT
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
availability: Sold

Technical Information - HAAS VF-2SSYT

General Data

Measurements width: 2320 MM
Measurements depth: 2540 MM
Measurements height: 2570 MM
Machine weight: 3675 KG

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kw
Tool taper: CT OR BT 40
Number of axis: 3

Movement

X-AXIS Movement: 762 MM
X-AXIS Rapid traverse: 35.6 M/MIN
Y-AXIS Movement: 508 MM
Y-AXIS Rapid traverse: 35.6 M/MIN
Z-AXIS Movement: 508 MM
Z-AXIS Rapid traverse: 35.6 M/MIN

Table

Outer length: 914 MM
Outer width: 457 MM
TSlots size: 16 MM
Number of tslots: 3
Min distance between vertical spindle and table: 102 MM
Max distance between vertical spindle and table: 610 MM
Table load: 680 KG

Tools

Number of stations: 30+1
Max weight: 5.0 KG
Max tool diameter: 127 MM
Max tool length: 279 MM
Type of tool holder: SMTC

Media

Main electronic connection: 440 V 50/60 HZ
Air pressure: 5.5 BAR

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max torque 122 nm @ 2000 rpm
- - Drive system: inline direct-drive
- - Bearing lubrication: air/oil injection
- - Cooling: liquid cooled
- - T-slot center distance 125 mm
- - Max. Cutting 21. 2 m/min
- - Thrust x: 8874 n, thrust y: 8874 n, thrust z: 13723 n
- - Tool to tool (avg): 2. 8 s
- - Chip to chip (avg): 3. 6 s
- - Coolant capacity 208 l.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
