- ➤ Used HAAS VF-3YT/50 - 2015 - Vertical Machining Center

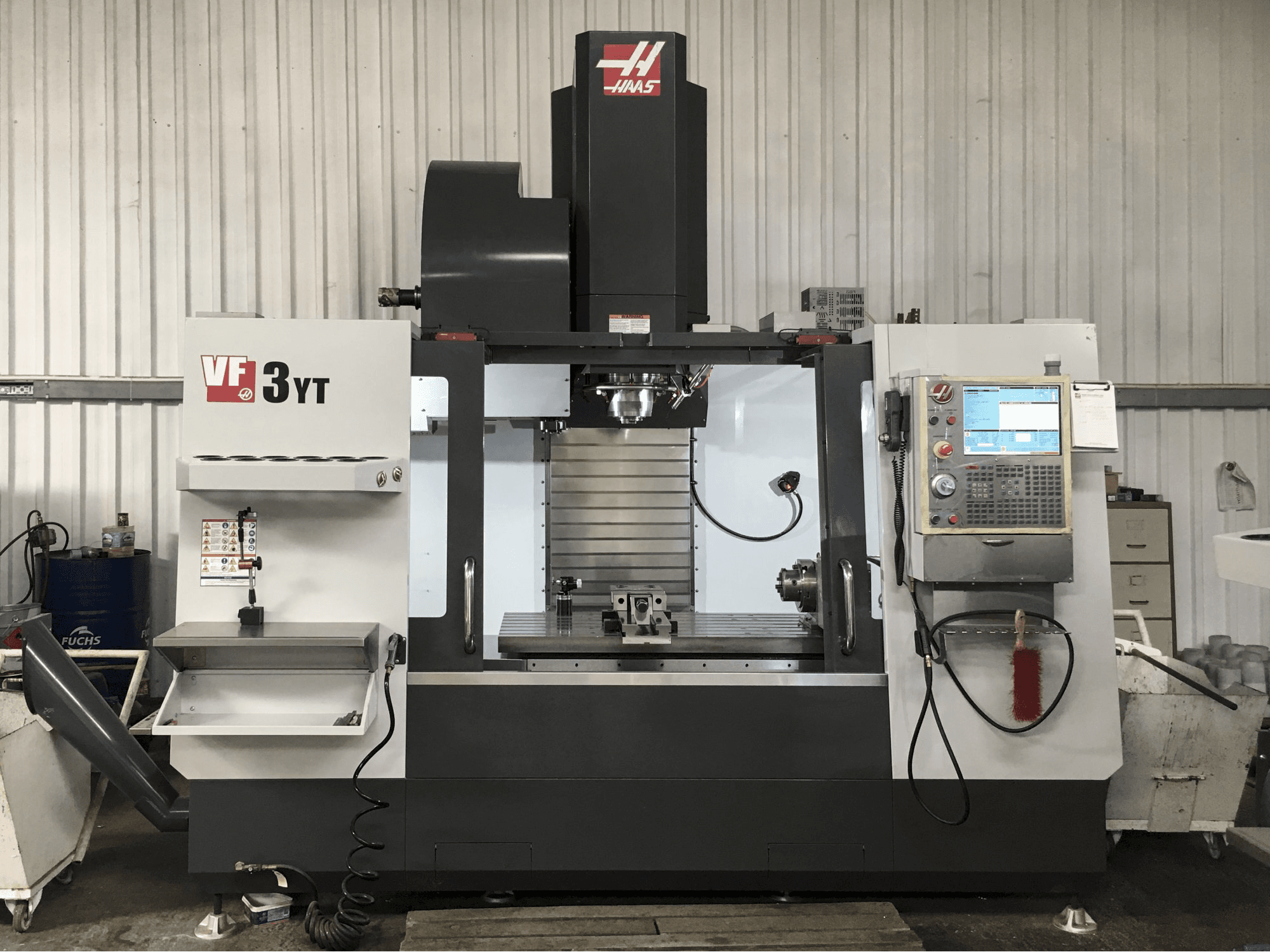

This HAAS VF-3YT/50 Vertical Machining Center was manufactured in 2015 in the United States and has a working record of not more than 465 production hours since then. This almost new machine is operated through a HAAS Control unit and stands out due to its rotary table with a maximum workpiece weight of 1814 kg. This system incorporates a spindle with 2-speed gearbox and has mainly worked with carbon and alloy steel during the past.
Overview
- brand: HAAS
- year: 2015
- MODEL: VF-3YT/50
- production hours: 465
- application type: Milling
- Location: Turkey
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: HAAS
Technical Information - HAAS VF-3YT/50
General Data
- Measurements width: 3810 mm
- Measurements depth: 3429 mm
- Measurements height: 3225 mm
- Machine weight: 6350 kg
Control Unit
- Brand: HAAS
- Remote control: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 7500 1/min
- Tool taper: #50
Movement
- X-AXIS Movement: 1016 mm
- Y-AXIS Movement: 660 mm
- Z-AXIS Movement: 635 mm
Workpiece
- Workpiece weight: 1814 kg
Table
- Outer length: 584 mm
- Outer width: 1321 mm
- Min distance between vertical spindle and table: 178 mm
- Max distance between vertical spindle and table: 813 mm
Tools
- Max weight: 13.6 kg
- Max tool diameter: 102 mm
Media
- Main electronic connection: 200-250 V / 50 Hz / 3 P
- Power consumption: 28 kVA
- Air pressure: 6 bar
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - 4th axis
- - HRC210 Roller Cam rotary table (210 mm)
- - Through spindle coolant
- - Wireless intuitive probing system
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
