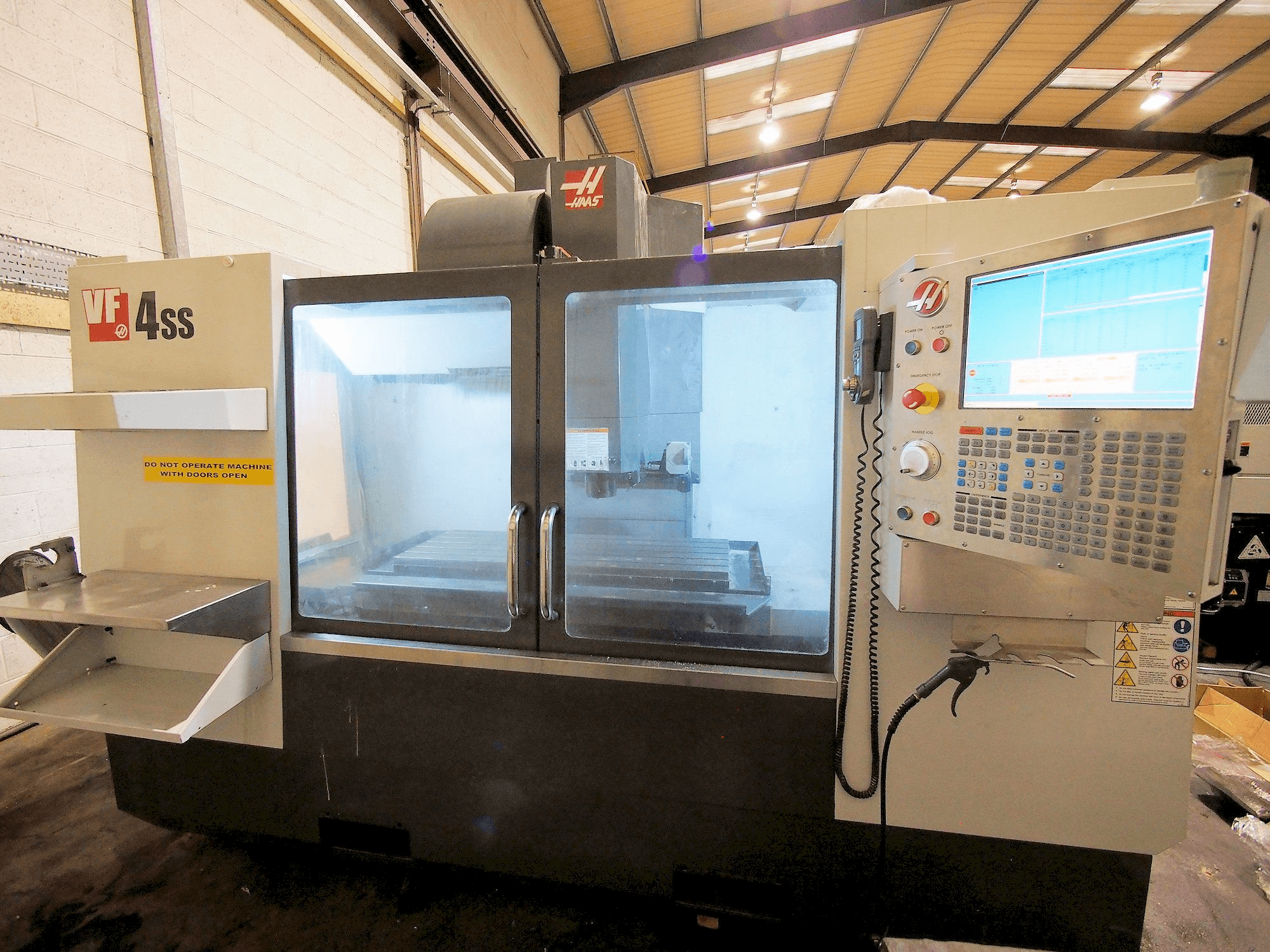

This HAAS VF-4SS vertical machining center was built in the year 2010 in the United States. It has a record of 8349 spindle hours. This 3 axis machine is operated through a control unit of the same brand. It has a spindle speed up to 12000 rpm and a fourth axis interface. This machine is in good conditions.

Overview

brand: HAAS
year: 2010
MODEL: VF-4SS
production hours: 8349
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-4SS

General Data

Measurements width: 3629 mm
Measurements depth: 2794 mm
Measurements height: 2985 mm
Machine weight: 6033 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 22.4 kW
Number of axis: 3

Movement

X-AXIS Movement: 1270 MM
Y-AXIS Movement: 508 MM
Z-AXIS Movement: 635 MM

Workpiece

Workpiece weight: 1814 KG

Table

Outer length: 1324 MM
Outer width: 457 MM

Tools

Slots in storage: 24
Type of tool holder: BT 40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min-max height under spindle 102-737 mm
- - High speed machining function
- - Swarf auger
- - Programmable coolant nozzle
- - Coolant
- - 4th axis interface
- - Remote hand wheel
Qualitative Machine Benefits:
- - Machine in good condition
- - Low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
