➤ Used HAAS VF-5/40 For Sale | gindumac.com

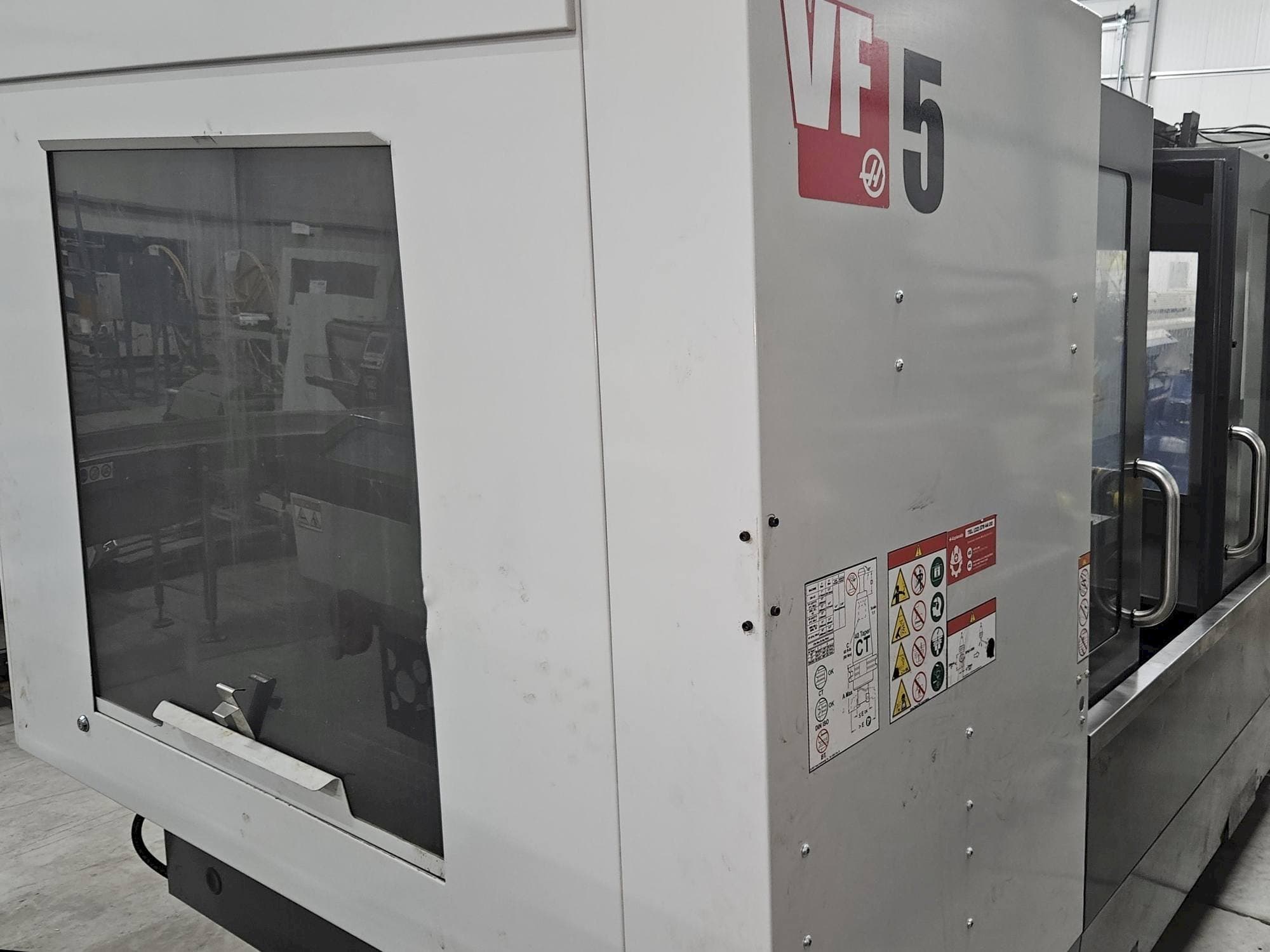

This 3-axis HAAS VF-5/40 vertical machining center was manufactured in 2021. It features a Haas NGC control, a maximum spindle speed of 8100 RPM, and a motor power of 22.4 kW. The machine offers extensive travel with dimensions of X-1270 mm, Y-660 mm, Z-635 mm, and supports a maximum table load of 1814 kg. It includes a screw-type chip conveyor and a side tool magazine with 30 positions. For more information about this vertical machining center, please reach out to us.

Overview

brand: HAAS
year: 2021
MODEL: VF-5/40
production hours: 2347
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-5/40

General Data

Measurements width: 2330 MM
Measurements depth: 4170 MM
Measurements height: 2570 MM
Machine weight: 5761 KG

Control Unit

Model: NGC
Brand: HAAS

Main drive

Spindle speed range: 8100 1/MIN
Spindle motor power: 22.4 kW

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 1372 mm
Outer width: 610 mm
Table load: 1814 kg

Additional Equipment

- 4AXD: Machine preparation for 4th axis, without table
- AKIT: Type ECP 6 pieces. Machine anchoring/anchors
- AUGER: Screw-type chip conveyor
- P-COOL: Programmable angular position of the coolant nozzle
- SMTC-30-40T: Side tool magazine with 30 positions
- TSC-READY: Prepared for installation of the optional coolant through the spindle
- WIPS-R: Wireless tool measurement system for radius and length measurement, part measurement and setup with measurement cycles. Includes SO, MACRO, COORD, and VPS (Visual Programming System)
- RENISHAW OTS tool probe

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Wireless tool measurement system, programmable coolant nozzle, side tool magazine
Qualitative Machine Benefits:
- - Professionally inspected, secured storage
- - Condition: very good, currently disconnected

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
