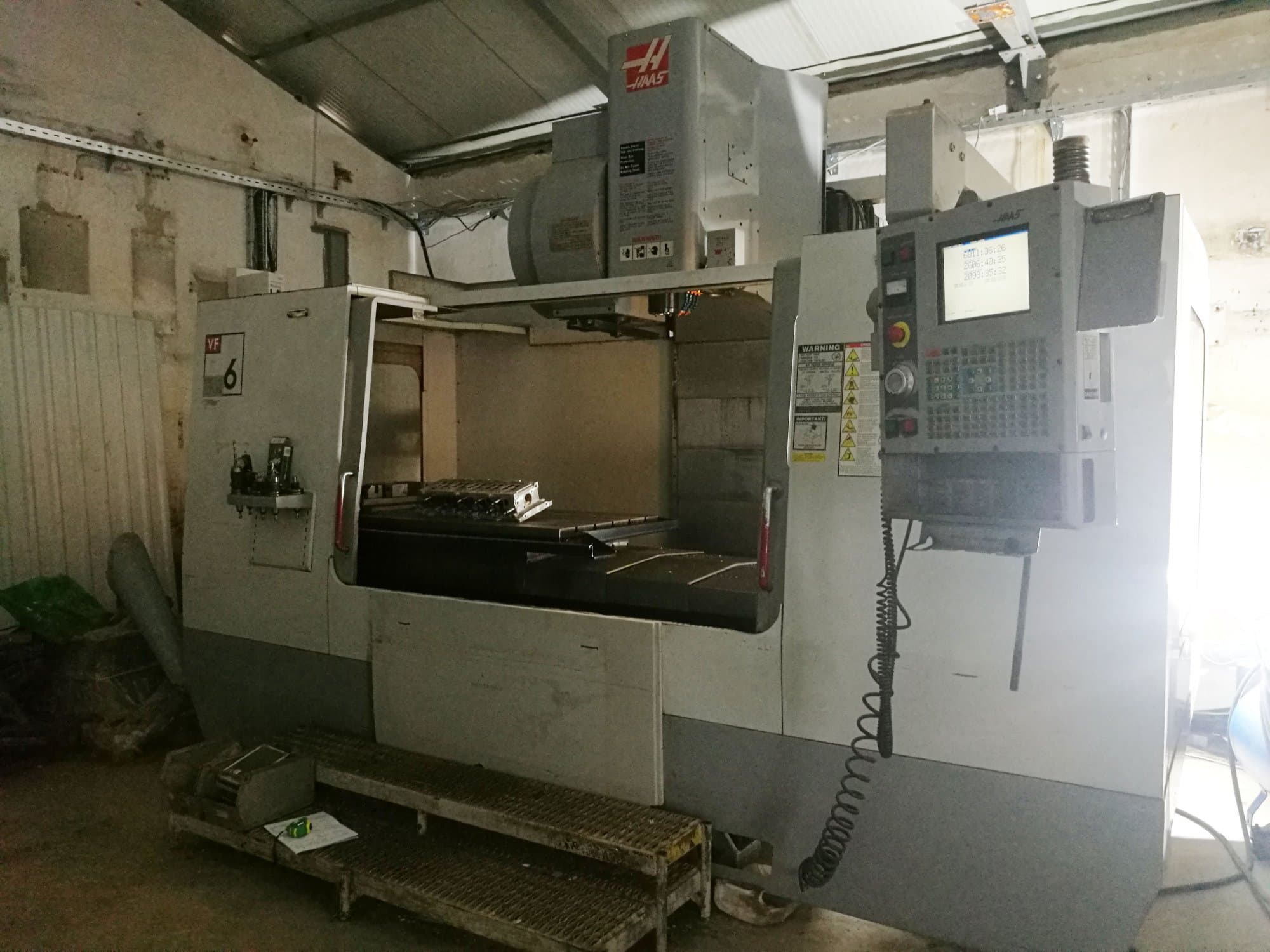

HAAS VF-6B/40HE Vertical Machining Center

This HAAS VF-6B/40HE Vertical Machining Center, made in USA in 2003, has a production record of 6800 working hours. Equipped with a Control unit of the same brand, this model stands out due to its big table and for mainly working with steel during the past. Some additional equipment such as a tool changer and rotary units are included.

Overview

brand: HAAS
year: 2003
MODEL: VF-6B/40HE
production hours: 6800
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-6B/40HE

General Data

Measurements width: 4260 mm
Measurements depth: 3300 mm
Measurements height: 3300 mm
Machine weight: 10200 kg

Control Unit

Brand: HAAS
CNC main language: English

Main drive

Number of spindles: 1
Spindle speed range: 8100 1/min

Movement

X-AXIS Movement: 1626 mm
Y-AXIS Movement: 813 mm
Z-AXIS Movement: 762 mm

Workpiece

Workpiece weight: 1814 kg

Table

Outer length: 1626 mm
Outer width: 711 mm

Tools

Max weight: 5.4 kg
Max tool diameter: 152 mm
Max tool length: 406 mm

Media

Main electronic connection: 460 V
Chip conveyor: Yes

Additional Equipment

- Automatic Tool Changer (24+1)
- HAAS Rotary unit 4th axis
- Machine Vice

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
