HANKOOK - VTC125EKR-TUR-HAN-2015-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

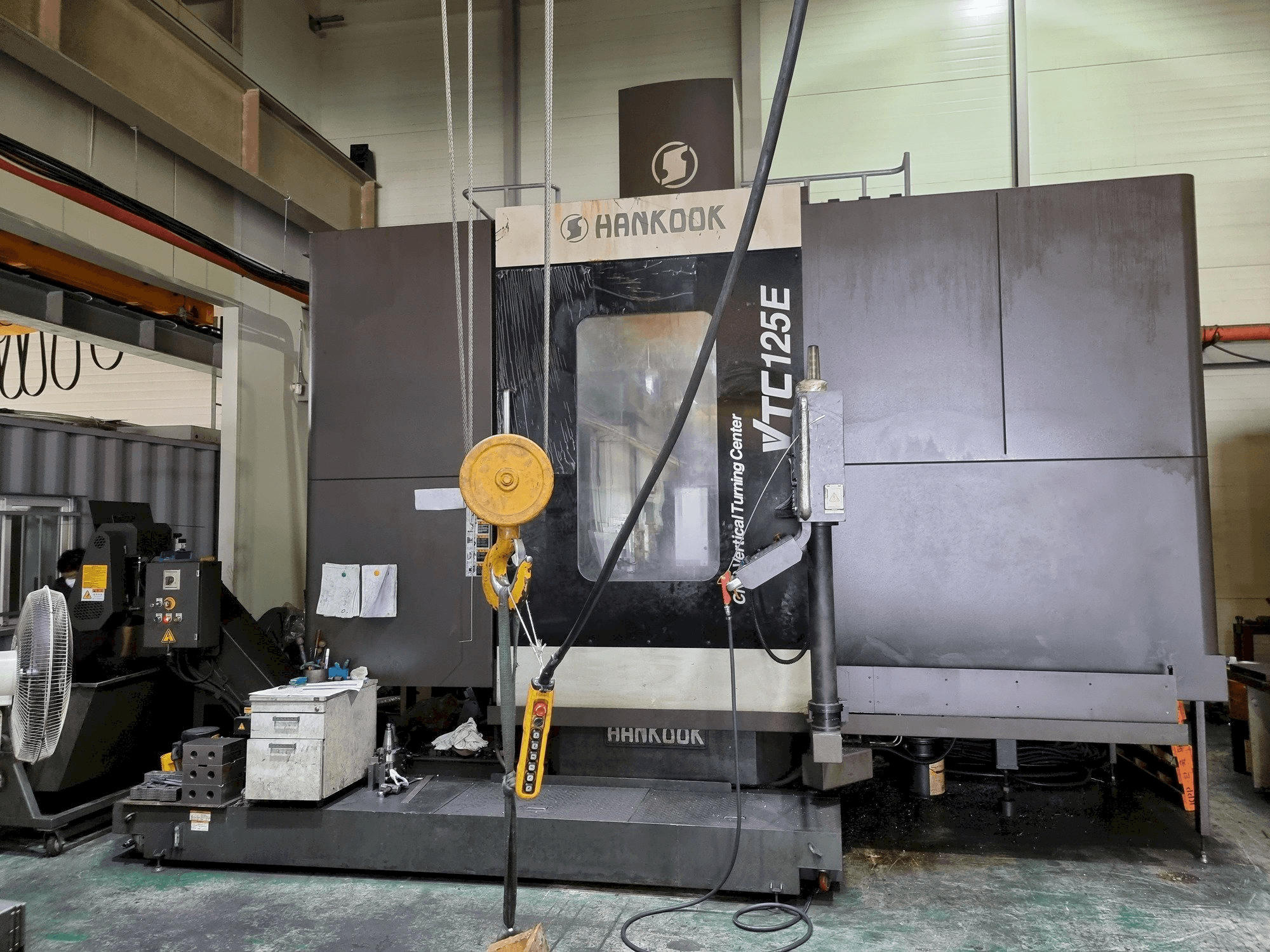

HANKOOK VTC125E Lathe

This HANKOOK VTC125E Vertical Lathe was made in the year 2015. It has worked during 7060 production hours. It is equipped with a FANUC 32i MODEL A control unit. This 3 axis machine can work with a spindle speed range between 30 ~ 3000 rpm and a milling spindle torque 45 mm. It includes MPG handle and manual books.

Overview

brand: HANKOOK
year: 2015
MODEL: VTC125E
production hours: 7060
application type: Turning
Location: South Korea
machine type: Vertical Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - HANKOOK VTC125E

Control Unit

Model: 32i MODEL A
Brand: FANUC

Main drive

Spindle speed range: 30 ~ 3000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1600 mm
Z-AXIS Movement: 900 mm
W-Axis Movement: 700 mm

Media

Main electronic connection: 220 V / 60 Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - W axis (cross rail): 700 mm (4 step. 175 mm, 175 mm, 175 mm, 175 mm)
- - Ram size : 220 mm * 220 mm
- - Ram stroke : 900 mm
- - C axis : 0. 001 degree
- - Table rpm: 0. 9 ~ 350
- - Table size: Φ1250 mm
- - Swing size: Φ1600 mm
- - Max turning height: 900 ~ 1400 mm
- - Max. Allowable workpiece weight: 8000 kg
- - Mill spindle torque: 45 mm
Qualitative Machine Benefits:
- - Atc: 24ea (turning:12ea, milling:12ea)
- - Tsc 20 bar
- - Table motor(kw/hp):ac 37/45 (50/60)
- - Mill spindle motor(kw/hp):ac 15/18. 5 (20/25)
- - X axis motor(kw/hp):ac 7 (9. 3)
- - Z axis motor (kw/hp):ac 7 (9. 3)
- - C axis motor (kw/hp):ac 7 (9. 3)
- - Hydraulic pump motor : 7. 5 kw
- - Linear scale (c axis)
- - Oil cooler

Extra information

- Call right(LED 3 Step) MPG handle Manual books CE MARK

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

DOC.pdf
