- ➤ Used HARTFORD HSA 320 For sale | gindumac.com

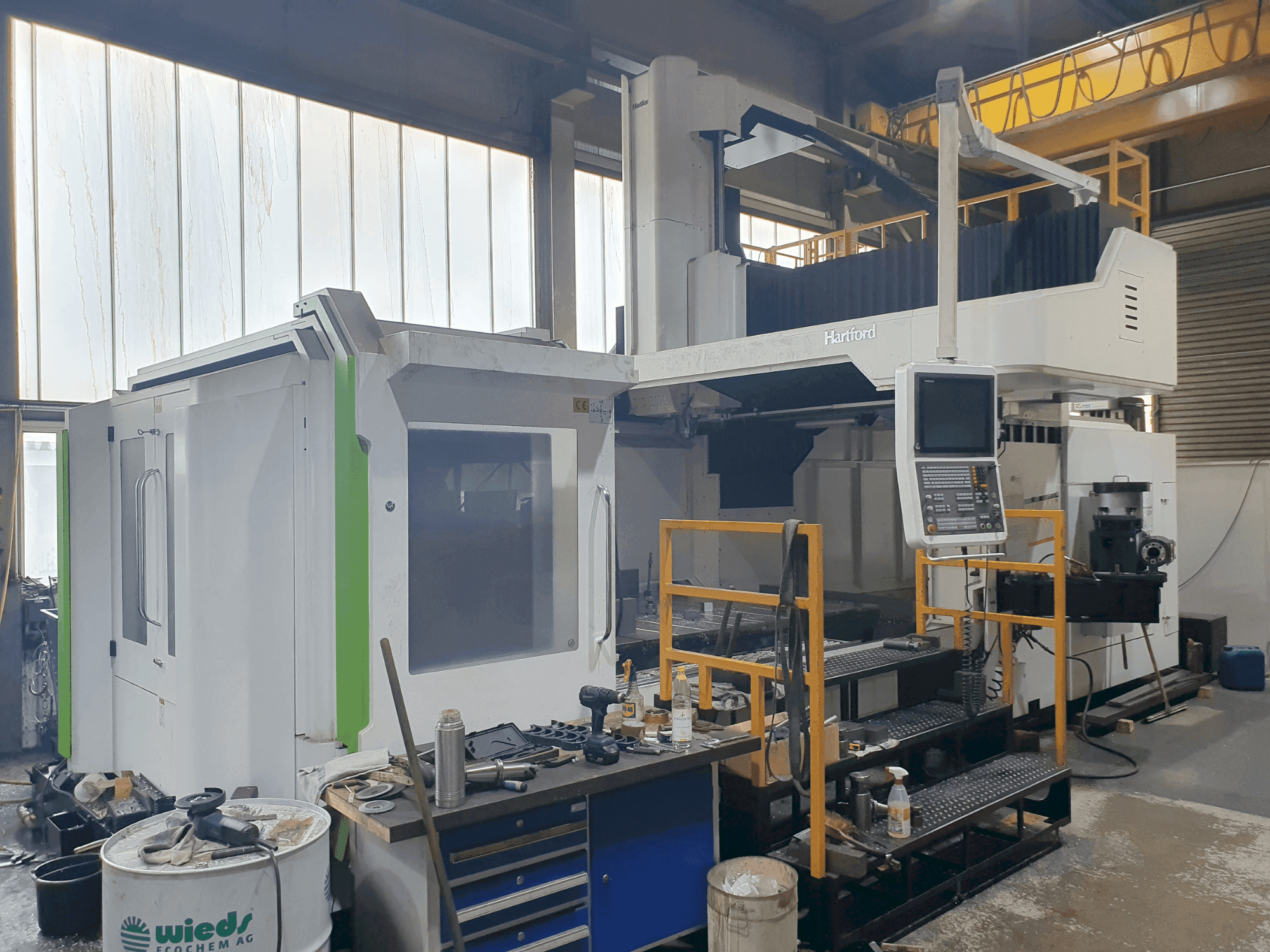

This 3-axis Hartford HSA 320 machining center was manufactured in 2021. It features a robust clamping table of 3000 x 1800mm, supporting up to 10,000 kg, and a thermally stable main spindle with a SK50 tool holder. The machine includes a closed cooling circuit and an automatic two-stage gearbox, enhancing its performance with a spindle speed of up to 6,000 rpm. Ideal for heavy and precise machining tasks, the Hartford HSA 320 machine we have for sale. Contact us for further details.
Overview
- brand: HARTFORD
- year: 2021
- MODEL: HSA 320
- application type: Milling
- Location: Germany
- machine type: Machining centers (vertical)
- availability: Sold
Technical Information - HARTFORD HSA 320
General Data
- Measurements width: 5400 mm
- Measurements depth: 9100 mm
- Measurements height: 5300 mm
- Machine weight: 28500 kg
Main drive
- Spindle speed range: 10-6000 rpm 1/MIN
- Spindle motor power: 30 kW (S6-40%), 25 kW (S6-60%), 20 kW (S1-100%)
- Tool taper: SK50
- Number of axis: 3
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 2000 mm
- Z-AXIS Movement: 1000 mm
Workpiece
- Workpiece weight: 10000 kg
Table
- Outer length: 3000 mm
- Outer width: 1800 mm
- TSlots size: 22 mm
- Number of tslots: 11
- Distance between: 250 mm
Media
- Main electronic connection: 400 V, 50 Hz, 3 Ph
- Power consumption: 55 kVA
- Air pressure: 6.5 bar
Additional Information
- Technical Machine Benefits:
- - High spindle power and speed, large working range, high table load capacity.
- Qualitative Machine Benefits:
- - High positioning and repeat accuracy, thermally stable main spindle, closed cooling circuit.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
