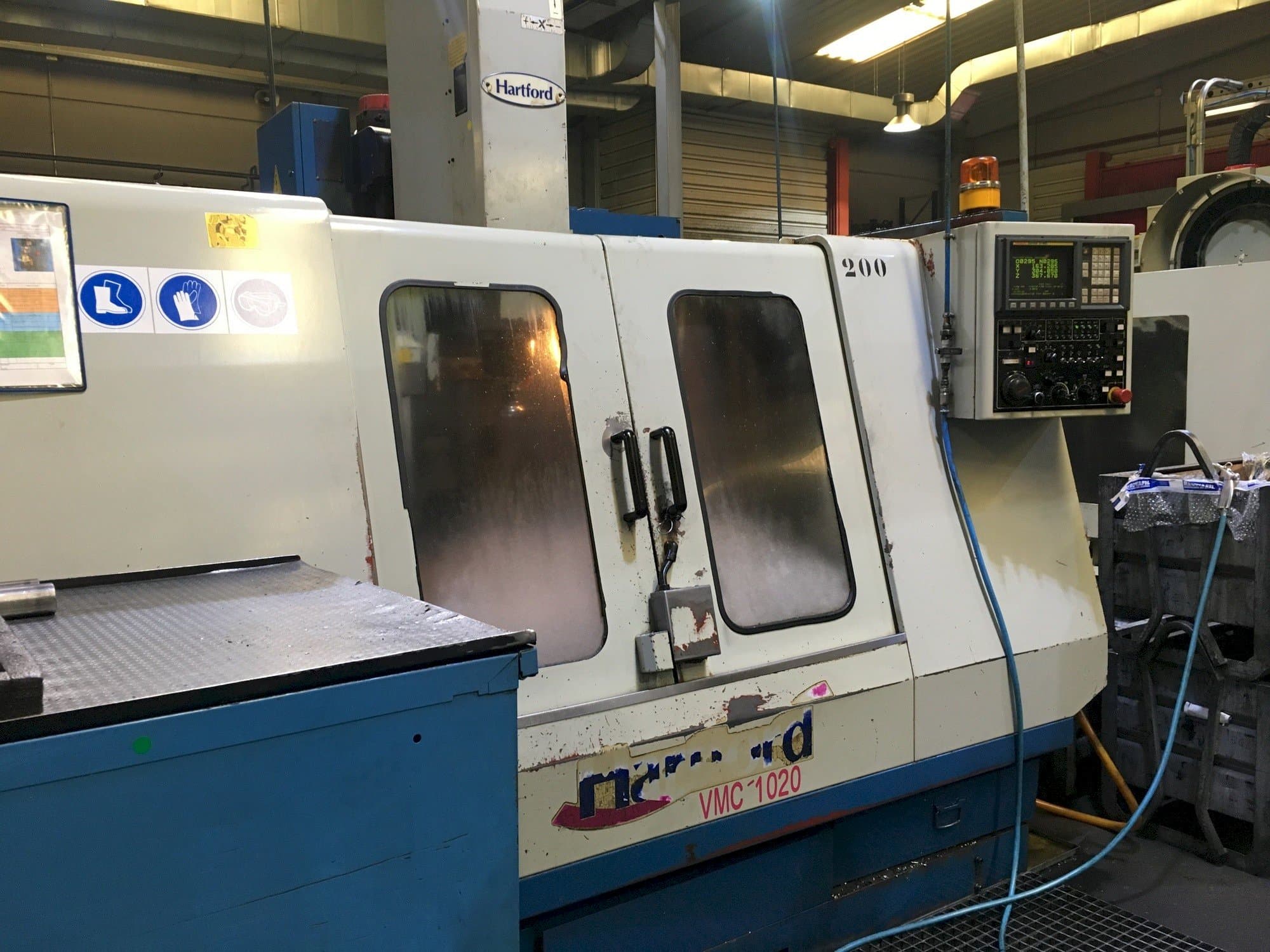

Hartford VMC-1020S Vertical Machining Center

This Hartford VMC-1020S Vertical Machining Center was made in Taiwan in 1999. It is operated through a FANUC SERIES O-MD control unit. This machine can work with a spindle speed range up to 8000 rpm. It is in good condition.

Overview

brand: HARTFORD
year: 1999
MODEL: VMC-1020S
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - HARTFORD VMC-1020S

General Data

Measurements width: 2800 mm
Measurements depth: 2230 mm
Measurements height: 2400 mm
Machine weight: 5400 kg

Control Unit

Model: SERIES O-MD
CNC main language: Spanish
CNC language customizable: Yes
Brand: FANUC

Main drive

Spindle speed range: 8000 rpm 1/MIN

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece x: 1020 mm
Workpiece y: 510 mm
Workpiece z: 510 mm

Table

Outer length: 1000 mm
Outer width: 470 mm
TSlots size: 4
Distance between: 100 mm

Tools

Slots in storage: 20
Max weight: 6 kg
Max tool diameter: 90 mm
Max tool length: 250 mm
Type of tool holder: BT-40

Media

Power consumption: 18,55 kVA

Additional Information

Machine history

Industries: Automotive

Machine Benefits

Qualitative Machine Benefits:
- - Good status
- - It has had a weekly and exhaustive maintenance

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
