HELLER MC 16
HELLER - MC 16
1999
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Heller MC 16 Horizontal Machining center

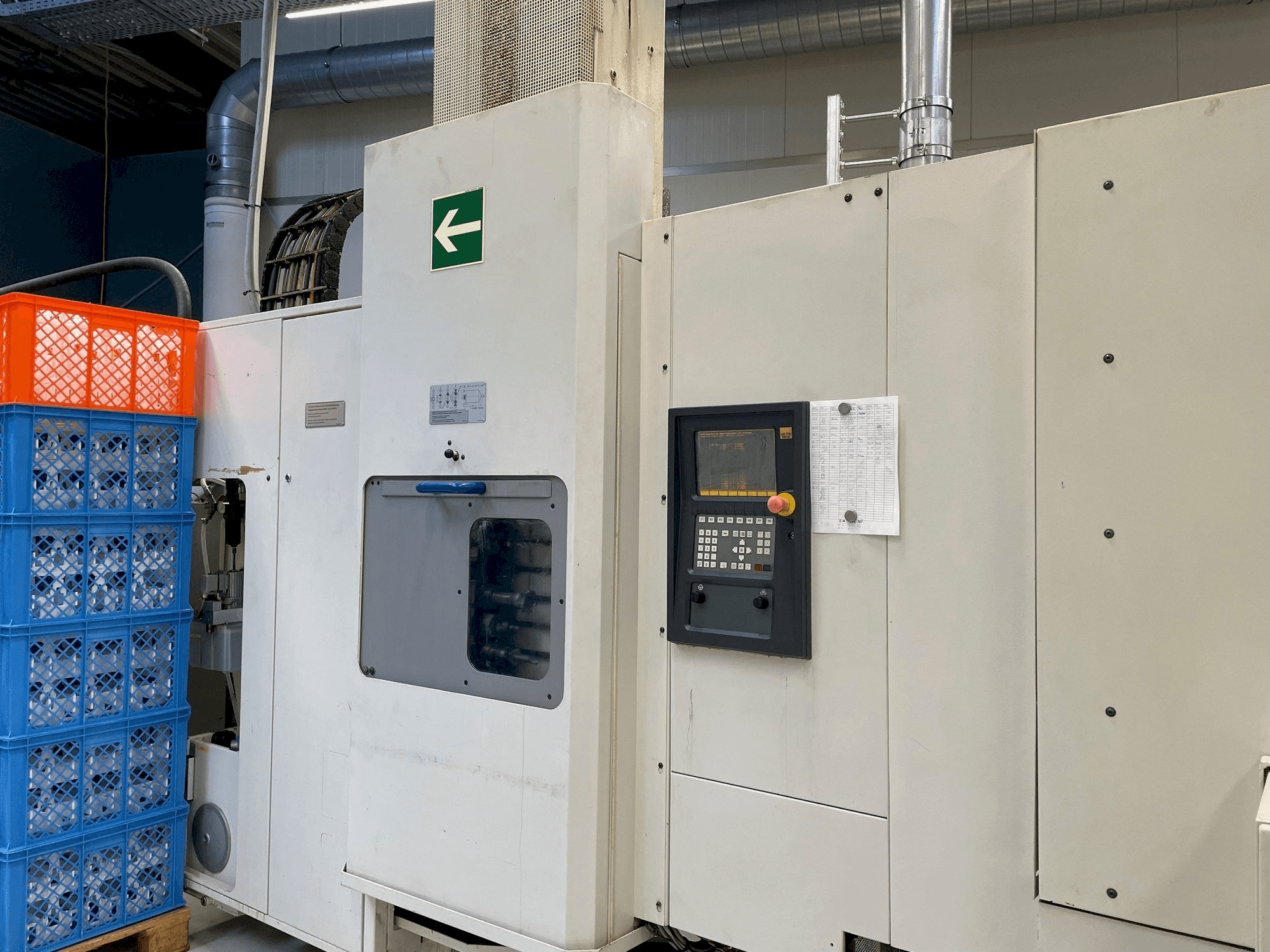

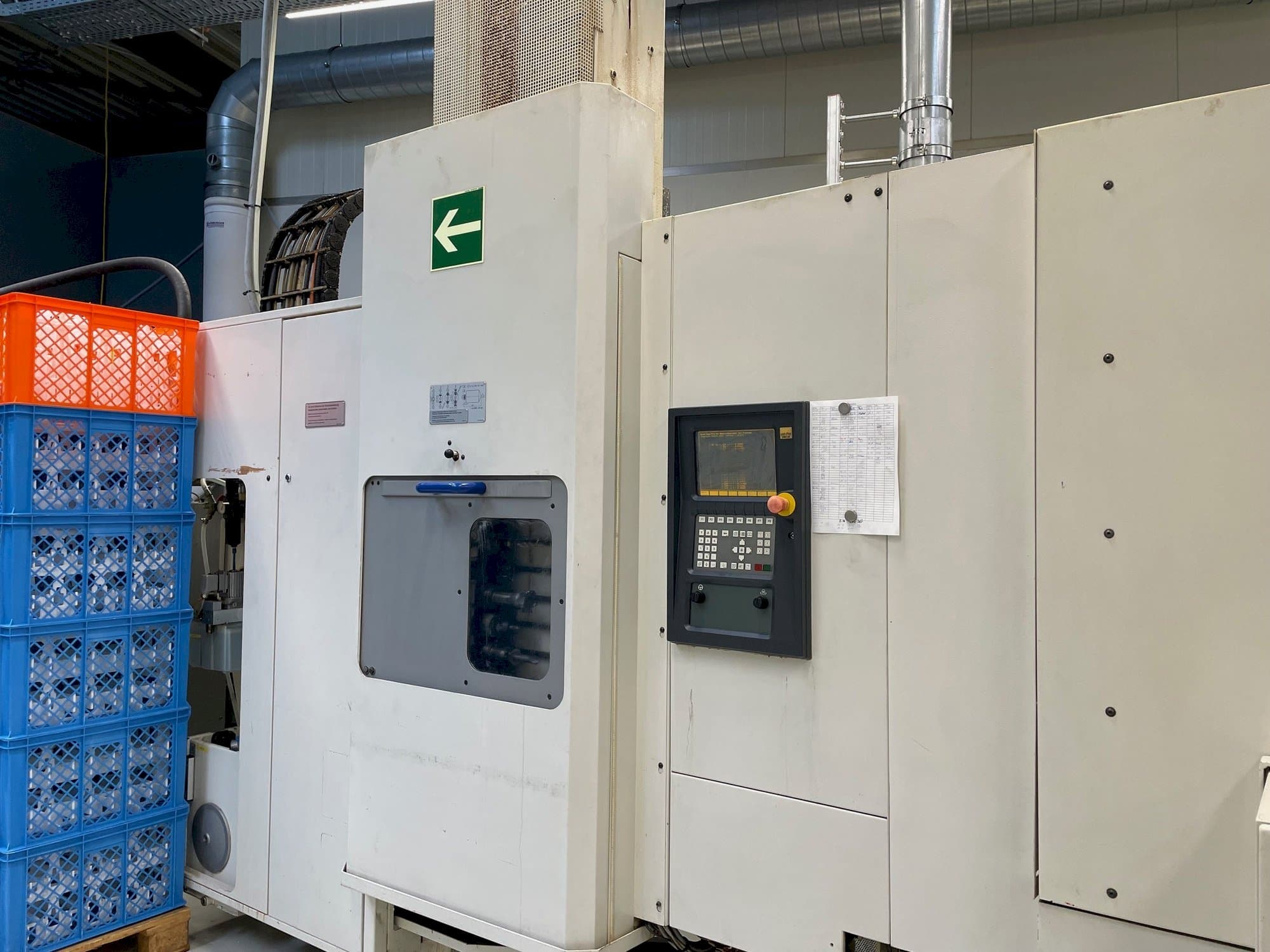

This Heller MC 16 Horizontal Machining center was manufactured in the year 1999. It is equipped with a Unipro CNC 90 control unit. The machine has a spindle speed of 16000 rpm.
Overview
- brand: HELLER
- year: 1999
- MODEL: MC 16
- application type: Milling
- Location: Austria
- machine type: Machining centers (horizontal)
- availability: Sold
- control unit brand: Unipro
- GINDUMAC ID: AT-MIL-HEL-1999-00001
Technical Information
Control Unit
- Brand: Unipro
- Model: CNC 90
Main drive
- Spindle speed range: 16000 1/MIN
Additional Information
- Technical Machine Benefits:
- - Hsk 63 tool clamping system
- - (options) chain / 80
- - (control panel at tool loading station)
- - Rotary table 360,000° x 0. 001°
- - Coolant system knoll,vrf 250, ikz 80 bar
- - Working area xyz (mm) 630 / 630 / 630
- - Pallet size (mm) 400 x 500
- - Mechanical workpiece clamping
- - Additional options, special features drill breakage control (sbbk);
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
