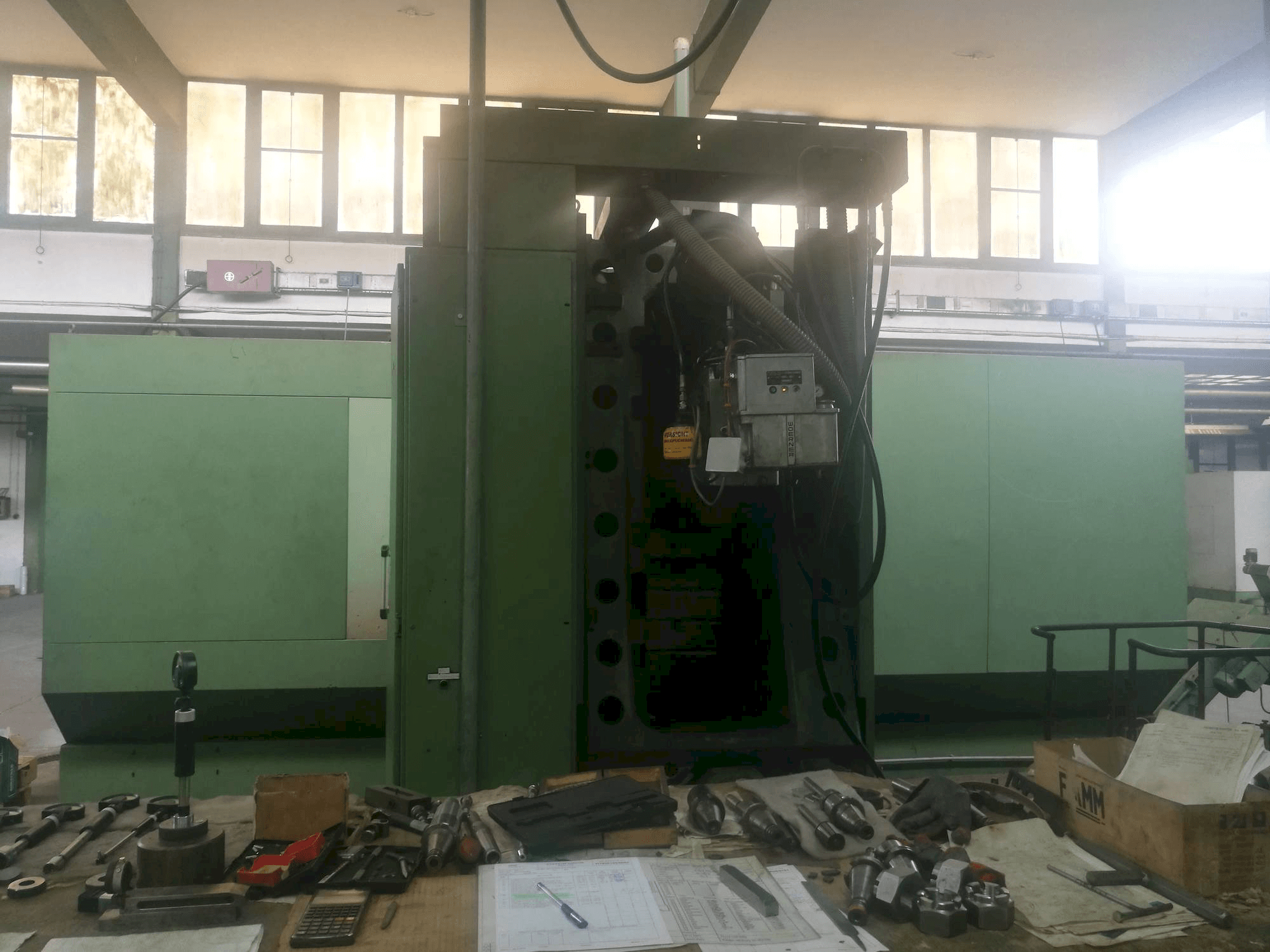

Front view of HELLER PFU3  machine

HELLER - PFU3HR-MIL-HEL-1987-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HELLER PFU3 Universal Machining Center was made in 1987 in Germany and has been working for approximately 47000 hours. Equipped with a HELLER UNI-PRO NC 80-C Control unit, this machine counts with a spindle speed of 2000 rpm.

Overview

  • brand: HELLER
  • year: 1987
  • MODEL: PFU3
  • production hours: 47000
  • application type: Milling
  • Location: Croatia
  • machine type: Universal Machining Centre
  • availability: Sold

Technical Information - HELLER PFU3

General Data

  • Measurements width: 4100 mm
  • Measurements depth: 6500 mm
  • Measurements height: 3380 mm
  • Machine weight: 10000 kg

Control Unit

  • Model: UNI-PRO NC 80-C
  • CNC main language: German

Main drive

  • Number of spindles: 1
  • Spindle speed range: 2000 1/MIN

Movement

  • X-AXIS Movement: 1800 mm
  • Y-AXIS Movement: 710 mm
  • Z-AXIS Movement: 800 mm

Workpiece

  • Workpiece x: 2100 mm
  • Workpiece y: 710 mm
  • Workpiece z: 800 mm
  • Workpiece weight: 3000 kg

Table

  • Outer length: 2100 mm
  • Outer width: 710 mm
  • Number of tslots: 7

Tools

  • Type of tool holder: SK50

Media

  • Main electronic connection: 380V/50Hz
  • Power consumption: 30 kVA
  • Chip conveyor: Yes

    Additional Equipment

    • - 5 pieces- toolholder

    Additional Information

      Machine history

      • Material type: Steel
      • End product: Machine parts, slides
      • Industries: Automotive

      Machine Benefits

      • Technical Machine Benefits:
        • - Horizontal and vertical milling head
        • - Big table

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
