Used Milling machine HERMLE C22U with handling system IH30 - 2017 - for sale | gindumac.com

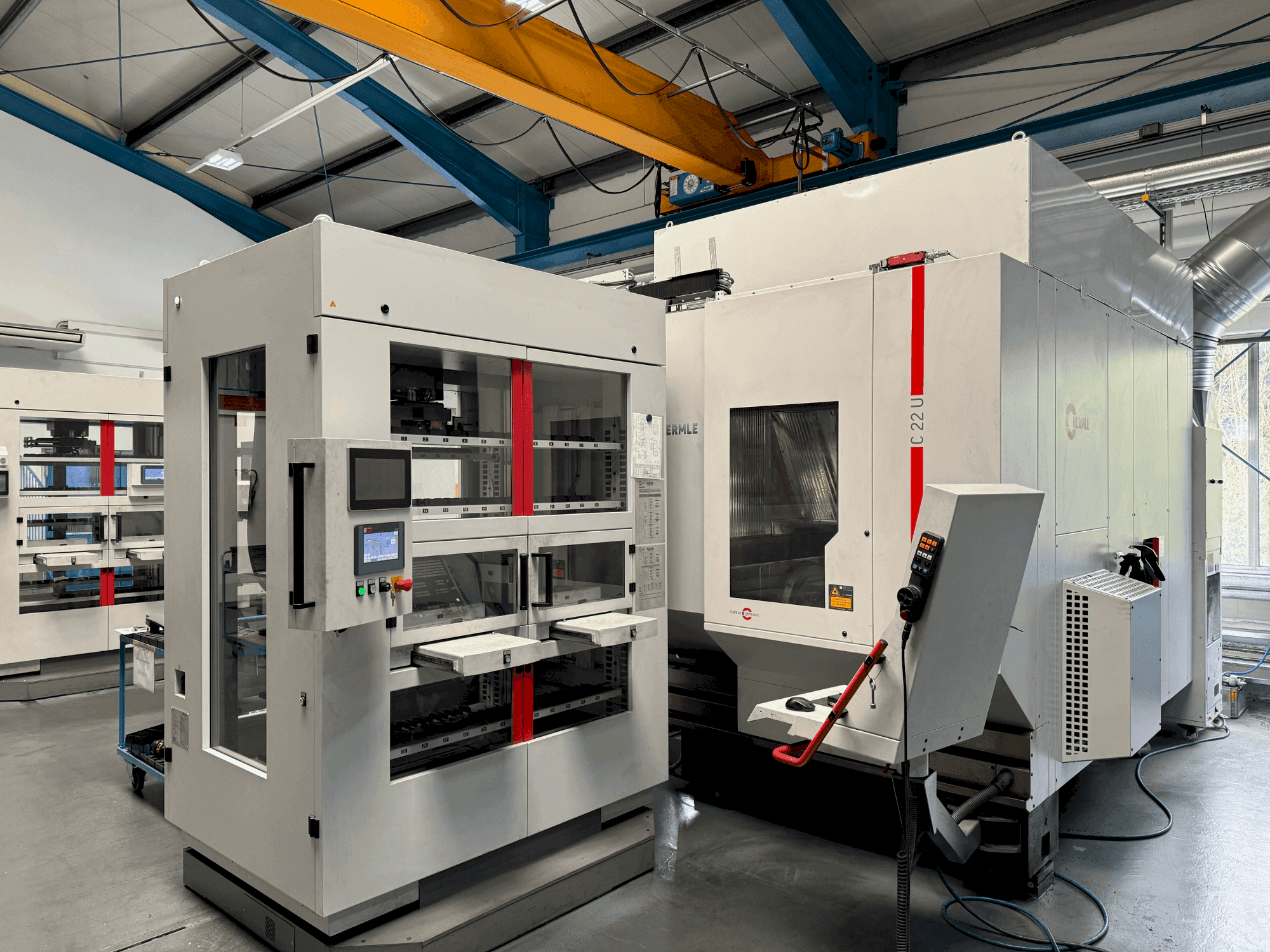

This 5-axis HERMLE C22U Machining center was manufactured in 2017. It includes an integrated handling system, IH30, designed to enhance automation and efficiency in production. The compact yet robust configuration of this machine allows for versatile milling applications with precision and reliability. The advanced control system ensures optimal performance and supports complex milling operations demanding high accuracy. The HERMLE C22U machine we have for sale is expertly crafted to meet stringent manufacturing requirements. Contact us for further details regarding this machining center.

Overview

brand: HERMLE
year: 2017
MODEL: C22U with handling system IH30
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE C22U with handling system IH30

General Data

Measurements width: 1740 mm
Measurements depth: 1700 mm
Measurements height: 2400 mm
Machine weight: 9000 kg

Control Unit

Model: TNC 640
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 42000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 330 mm

Tools

Number of index: 65

Clamping unit

Clamping force: 4500 N KN

Additional Equipment

- Swivel rotary table STP Ø 320
- Single-sided drive in the A-axis Ø 320 // Spindle 42.000 1/min HSK E40
- 6-way rotating union
- Elimination of table top Ø 320
- KinematicOpt - Hardware
- IH30 handling system: max. handling weight 30kg magazine capacity 50 pallets

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Outer mms
- - Blow-off device // blow air through spindle center
- - Sealing air for scales
- - Control software: kuhnke plc
- - Max. Handling weight: 30 kg
- - Magazine capacity: 50 pallets
- - Infeed and outfeed station: 2-fold
- - Standard gripper: 30 kg based on a fork gripper itp 178x135 or itp 192x98 with pneumatic holding pins
- - Control software: kuhnke plc // control panel for hacs on the ih30
- - Taper size: hsk e40
Qualitative Machine Benefits:
- - Emulsion mist extraction incl. Secondary filter
- - Automatic cabin door // automatic cab roof
- - Heidenhain electrical heat compensation // electric manual control module heidenhain
- - Measuring probe heidenhain
- - Blum tool breakage/ measurement a1
- - Cover plate for machining with amms / mod. Scraper
- - Handling interface ih30/60 tnc640hacs
- - Chuck 3-r powergrip on system table
- - Pneu. Release retacking blow off present 1x 1:2
- - Preparation of external graphite suction left

Extra information

- IH30 Shelf ITS50 Pallets and ITS78: Parallel Gripper: Including specific gripper finger set. Max. Transport Weight: 20 kg. Exchangeable Gripper: 3R gripper finger set. We have a second unit of the the identical model from 2015 available. Has not yet been converted to vacuum. Clamping system included. Keller graphite extraction system included. 20 HSK40 shrink-fit holders from Diebold and/or Haimer included. THE MACHINE PROCESSES synthetic materials. External suction unit.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
