HERMLE - C400 UAT-MIL-HER-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

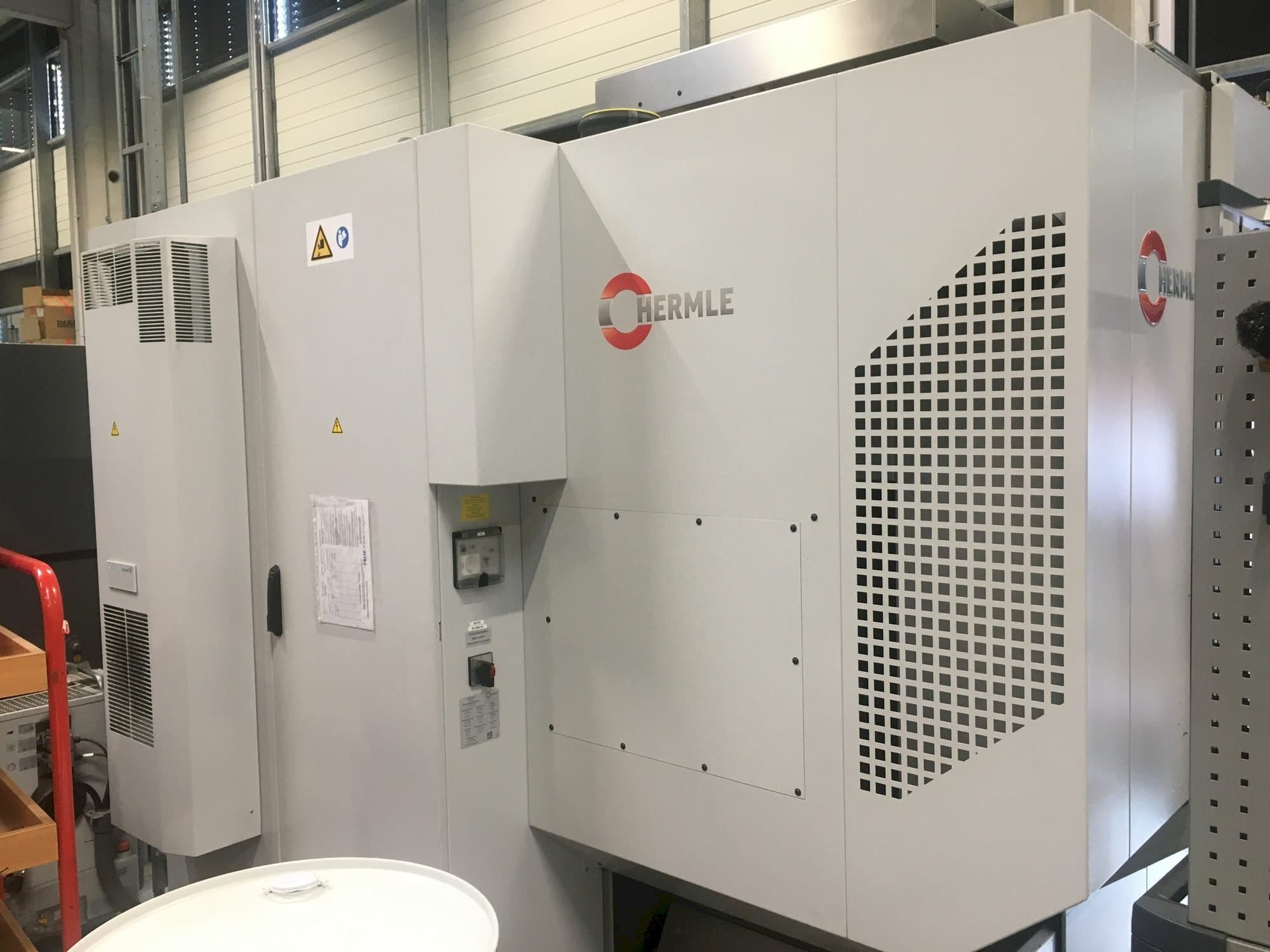

HERMLE C400 U Universal Machining Center

This HERMLE C400 U Universal Machining Center was made in Germany in 2016. It is equipped with a HEIDENHAIN TNC 640 Control unit. This reliable machine can work with a spindle speed up to 18000 rpm. It includes a HIMS basic package and a hardware KinematicOpt among several other technical benefits.

Overview

brand: HERMLE
year: 2016
MODEL: C400 U
application type: Milling
Location: Austria
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE C400 U

Control Unit

Model: TNC 640
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN

Movement

X-AXIS Movement: 850 mm
X-AXIS Feed Force: 7000 N
X-AXIS Rapid traverse: 35 m/min
Y-AXIS Movement: 700 mm
Y-AXIS Feed Force: 7000 N
Y-AXIS Rapid traverse: 35 m/min
Z-AXIS Movement: 500 mm
Z-AXIS Feed Force: 7000 N
Z-AXIS Rapid traverse: 35 m/min

Workpiece

Workpiece drm: 650 mm

Tools

Max tool diameter: 80 mm
Max tool length: 300 mm
Type of tool holder: HSK-A 63

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Hims basic package
- - Hardware kinematicopt
- - Without controller functions
- - 38 tool places
- - Scraper belt conveyor
- - Ikz 40 bar
- - Manual canopy
- - Polycarbon safety glass
- - Preliminary renishaw probe
- - Table: nc-srt ø 440
Qualitative Machine Benefits:
- - Sealing air for glass scales
- - Preparation for oil mist extraction
- - Retrofit police filter ikz system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

AT-MIL-HER-2016-00001.pdf
