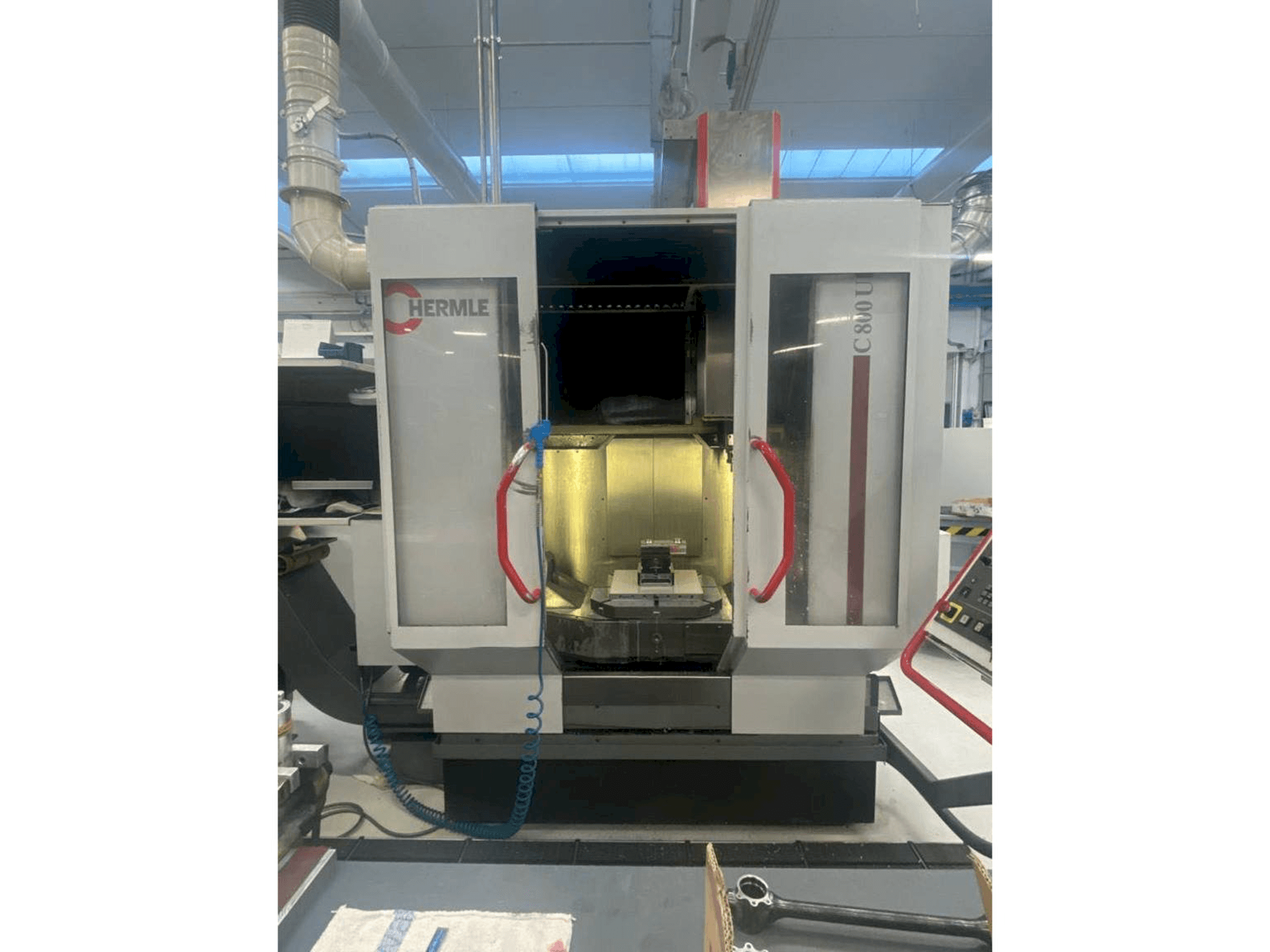

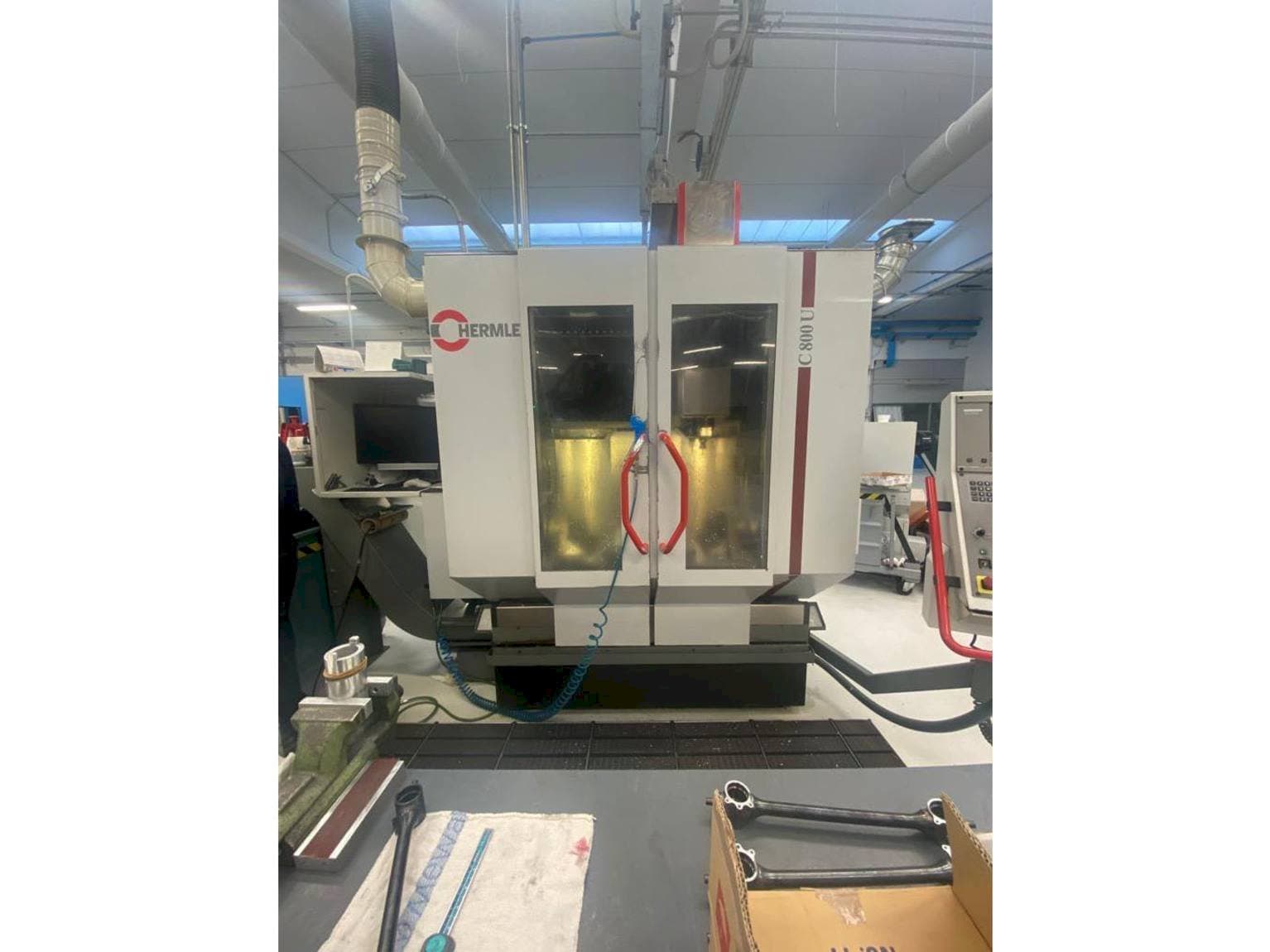

➤ Used HERMLE C800U - Vertical Machining Center

This HERMLE C800U Vertical Machining center was manufactured in the year 1999 and has 25844 production hours. It is equipped with a HEIDENHAIN TNC 430 control unit and has 5 axis. The machine has a spindle speed of 15000 rpm.

Overview

brand: HERMLE
year: 1999
MODEL: C800U
production hours: 25844
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE C800U

General Data

Measurements width: 2700 mm
Measurements depth: 2210 mm
Measurements height: 2930 mm
Machine weight: 7500 kg

Control Unit

Model: TNC 430
Brand: HEIDENHAIN

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: 10,5 Kw
Number of axis: 5

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 500 mm

Additional Information

Extra information

- Rotary Tilting Table mm.540 x 540 BT 40 Tool changer 30 positions Alta press esterna CE

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
