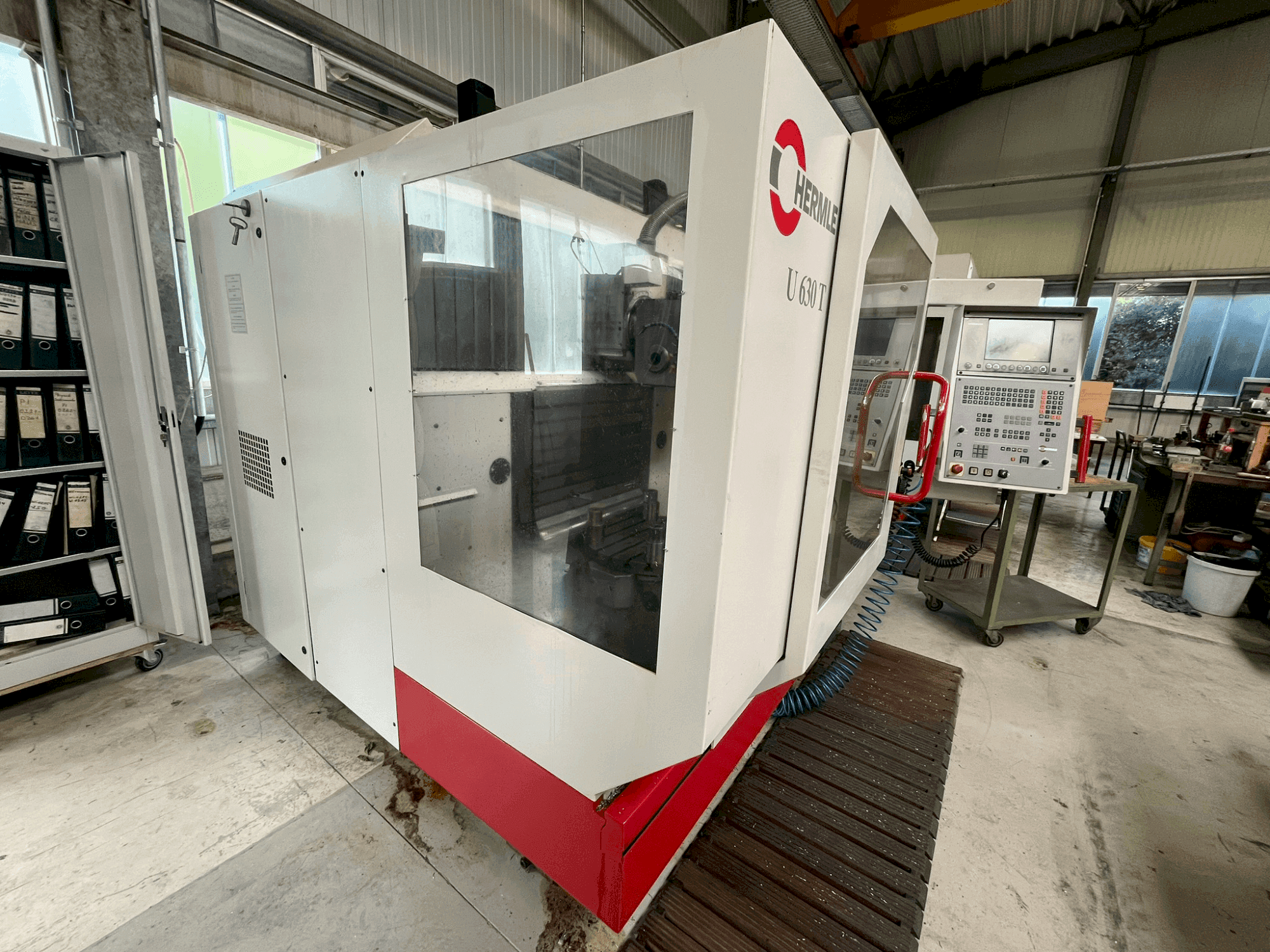

Front view of HERMLE U 630 T  machine

HERMLE - U 630 TDE-MIL-HER-2000-00003

19,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 4-axis Hermle U 630 T vertical machining center was manufactured in 2000. It features a 16-position tool changer and SK40 tool holder, controlled by a HEIDENHAIN TNC410 system. Weighing 4,800 kg, this machine offers robust performance for precision machining. Consider the opportunity to buy this Hermle U 630 T vertical machining center. Contact us for further details regarding this vertical machining center.

Overview

  • brand: HERMLE
  • year: 2000
  • MODEL: U 630 T
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - HERMLE U 630 T

General Data

  • Machine weight: 4800 kg

Control Unit

  • Model: TNC410
  • Brand: HEIDENHAIN

Main drive

  • Spindle speed range: 20-7000 rpm 1/MIN
  • Tool taper: SK40
  • Number of axis: 4

Movement

  • X-AXIS Movement: 875 MM
  • Y-AXIS Movement: 500 MM
  • Z-AXIS Movement: 500 MM

Table

  • Table load: 300kg

    Additional Equipment

    • - Number of Tools: 16-position tool changer
    • - Torque 390Nm
    • - Feed force 8000 N
    • - Tank capacity 120 litres
    • - delivery rate 24l/min
    • - max. speed of the table 11 1/min
    • - swivelling and rotating movement 3000 Nm
    • - Quill stroke 75mm

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Versatile tool options with a 16-position tool changer.
        • - Standard taper size sk40 for tool compatibility.
        • - Enhanced machining capabilities with 4-axis operation.
        • - Rapid traverse 15 m/min
        • - Magazine places 16
        • - Tool diameter 80mm
        • - Max. Tool length 250mm / max. Tool weight 6kg
      • Qualitative Machine Benefits:
        • - Precision control with the heidenhain tnc410 for accurate machining.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
