HERMLE - U1130AT-MIL-HER-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

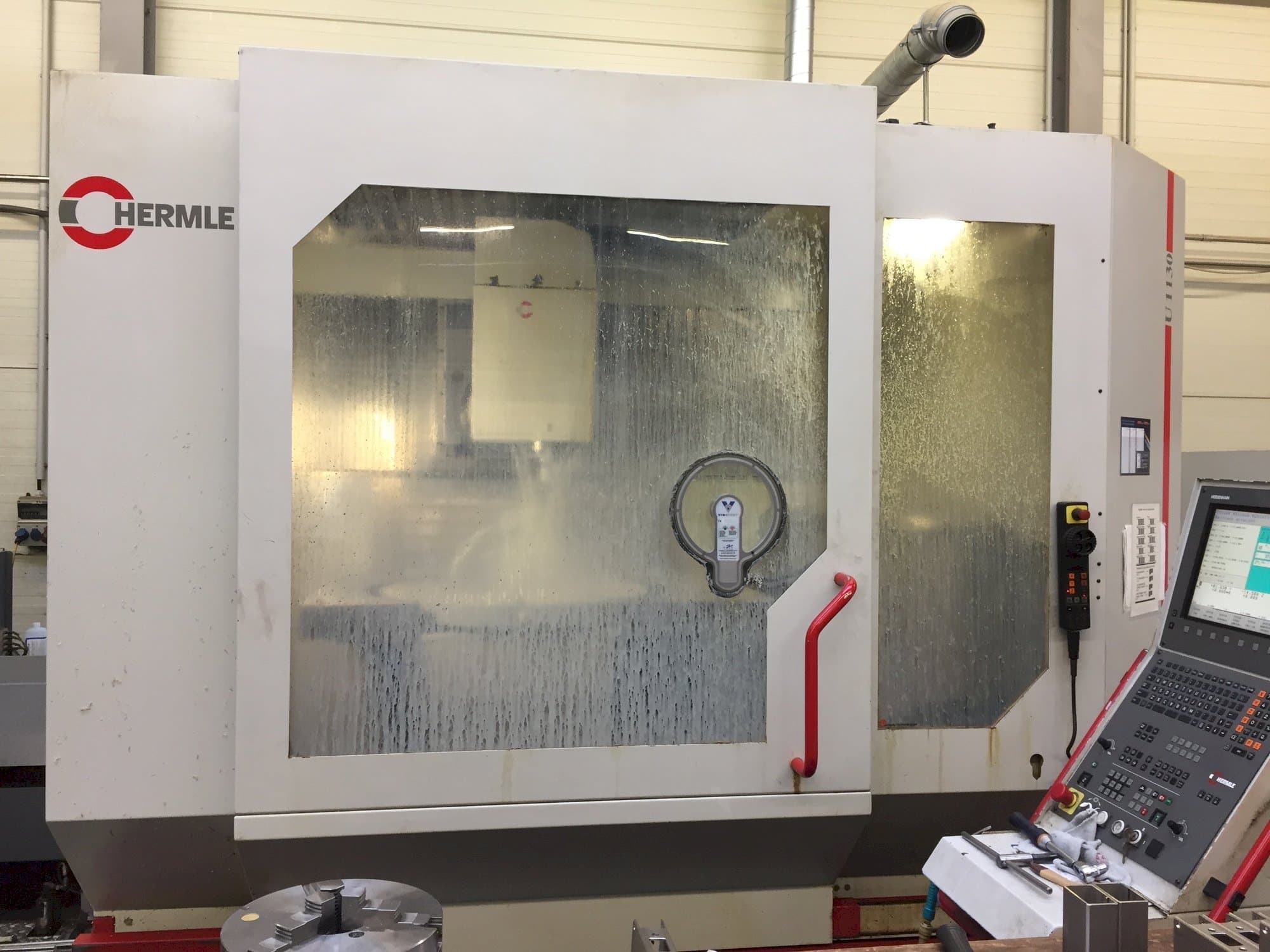

HERMLE U1130 Universal Machining Center

This HERMLE U1130 Universal Machining Center was made in 2004 in Germany and has been working for 35577 hours, from which only 8087 are spindle hours. Equipped with a Heidenhain TNC 520 Control unit, this machine stands out for incorporating 5 axes and an NC round table. It presents perfectly good conditions.

Overview

brand: HERMLE
year: 2004
MODEL: U1130
production hours: 35577
application type: Milling
Location: Austria
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE U1130

General Data

Machine weight: 8500 kg

Control Unit

Model: TNC520
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 1300 mm
Y-AXIS Movement: 720 mm
Z-AXIS Movement: 630 mm

Workpiece

Workpiece weight: 700 kg

Table

Outer length: 700 mm
Outer width: 720 mm

Tools

Slots in storage: 28
Max weight: 8 kg
Max tool diameter: 80/125 mm
Max tool length: 300 mm
Type of tool holder: HSK63A

Media

Main electronic connection: 400 V
Power consumption: 32 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

Material type: Steel

Machine Benefits

Technical Machine Benefits:
- - Internal cooling 40 bar
- - Integrated nc round table
- - Blum laser measuring
Qualitative Machine Benefits:
- - Very good conditions
- - Spindle working hours 8087

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
