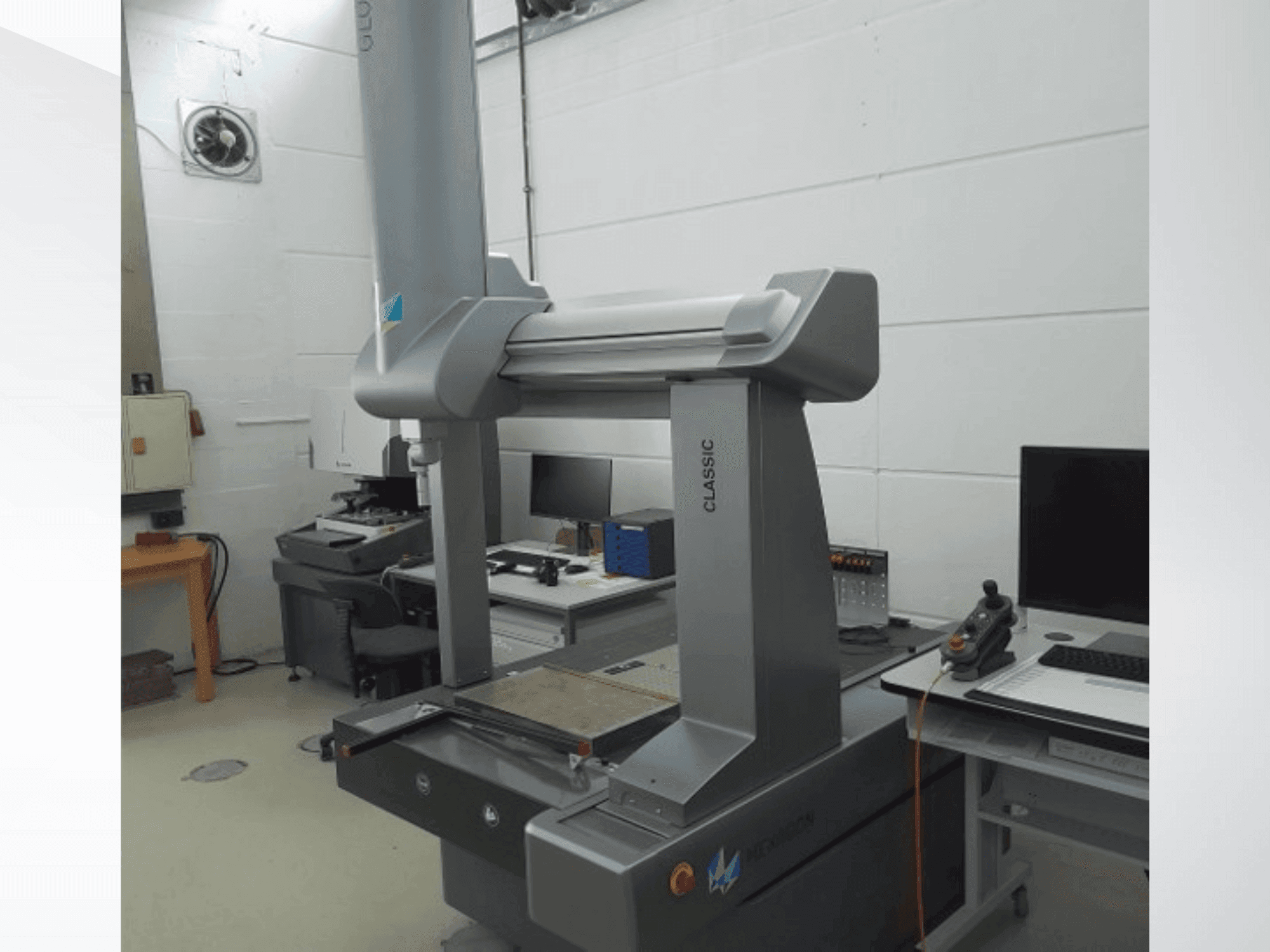

This 3-axis Hexagon GLOBAL CLASSIC was manufactured in 2019. Ideal for precise measurements, this CMM machine represents a reliable solution for enhancing quality control processes. Consider the opportunity to buy this Hexagon GLOBAL CLASSIC CMM machine. Contact us for more information.
Overview
- brand: Hexagon
- year: 2019
- MODEL: GLOBAL CLASSIC
- application type: Measuring
- Location: Germany
- machine type: Coordinate Measuring Machine (CMM)
- availability: Sold
Technical Information - Hexagon GLOBAL CLASSIC
General Data
- Measurements width: 1908 mm
- Measurements depth: 1277 mm
- Measurements height: 2777 mm
- Machine weight: 1265 kg
Main drive
- Number of axis: 3
Movement
- X-AXIS Movement: 700 MM
- Y-AXIS Movement: 1000 MM
- Z-AXIS Movement: 660 MM
Additional Equipment
- - Compressed Air Supply: Min Air Pressure: 0.5 MPa /Max Air Consumption: 70 NI/min / Min Supply Pressure: 0.5 MPa (5 bar) / Min Flow at Input (ANR) UNI ISO 8778: 7.5 dm³/s
- - Compressed Air Quality: Max Oil Concentration in Air: 5 mg/m³/ Max Size of Solid Particles in Compressed Air: < 0.04 mm / Max Concentration of Solid Particles in Compressed Air: 3(*)
- - Dynamic Performance: 3D Positioning Speed: 510 mm/s / Max Acceleration: 1700 mm/s² / Resolution: 0.039 µm
Additional Information
- Technical Machine Benefits:
- - Max workpiece weight: 900 kg
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
