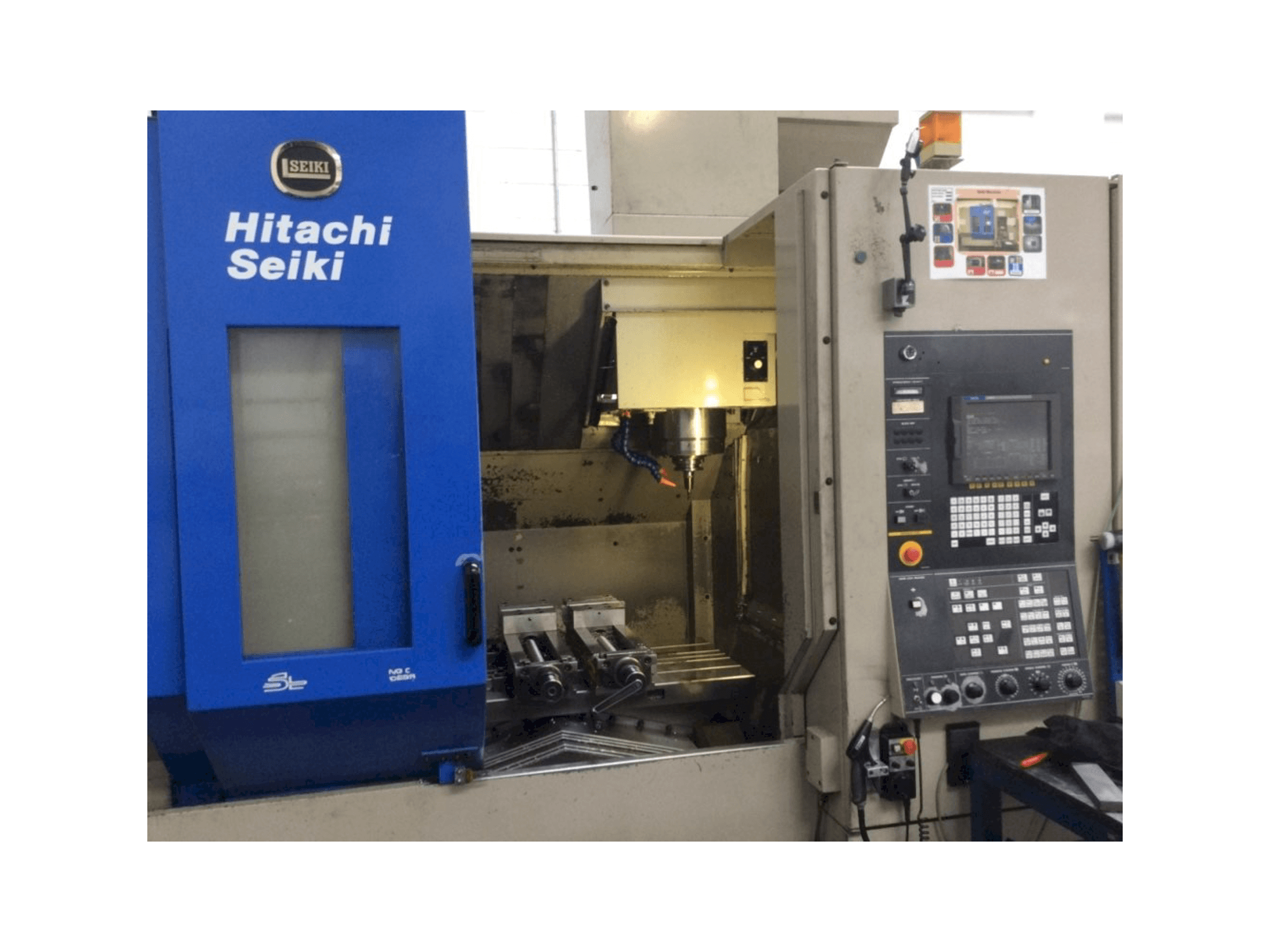

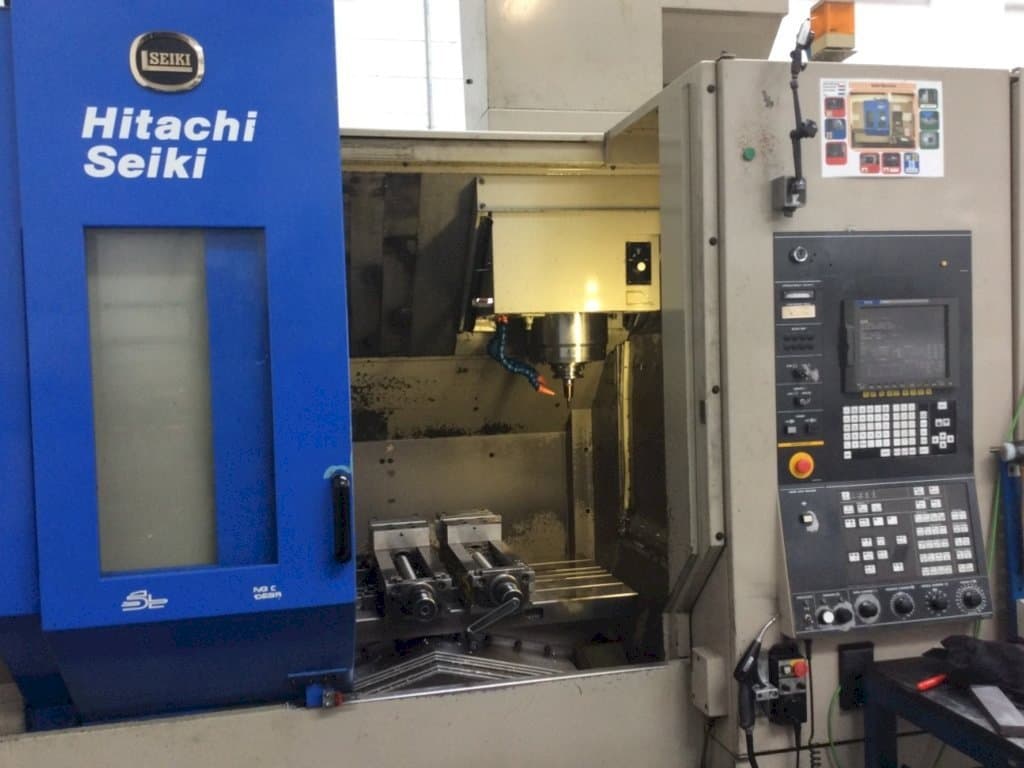

HITACHI SEIKI VS50 Vertical Machining Center

This HITACHI SEIKI VS50 Vertical Machining Center was made in Japan in 2001. It is operated through a Seicos E18M control unit. This model counts with a spindle speed of 10000 rpm. It includes a selection of fit tooling, a 70 bar high pressure coolant, a transformer and a chiller.

Overview

brand: HITACHI SEIKI
year: 2001
MODEL: VS50
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold

Technical Information - HITACHI SEIKI VS50

General Data

Measurements width: 3500 mm
Measurements depth: 3000 mm
Measurements height: 2800 mm
Machine weight: 8200 kg

Control Unit

Model: E18M
CNC main language: English
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 10000 1/MIN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 450 mm

Workpiece

Workpiece weight: 750 kg

Table

Outer length: 1120 mm
Outer width: 510 mm
Number of tslots: 4
Distance between: 18 mm

Tools

Slots in storage: 30
Max weight: 15 kg
Max tool diameter: 180 mm
Max tool length: 300 mm
Type of tool holder: ISO 50

Media

Main electronic connection: 415 V
Internal cooling: Yes

Additional Equipment

- Selection of haimer shrink fit tooling
- Machine probe
- 70 bar high pressure coolant
- Transformer
- Chiller

Additional Information

Machine history

Material type: Mild steel
End product: Pharma parts
Industries: Pharmaceutical

Machine Benefits

Technical Machine Benefits:
- - Very powerful machine
Qualitative Machine Benefits:
- - Annually serviced
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
