HOMAG - Edgebanding lineBE-EDG-HOM-2008-00001

Additional Equipment

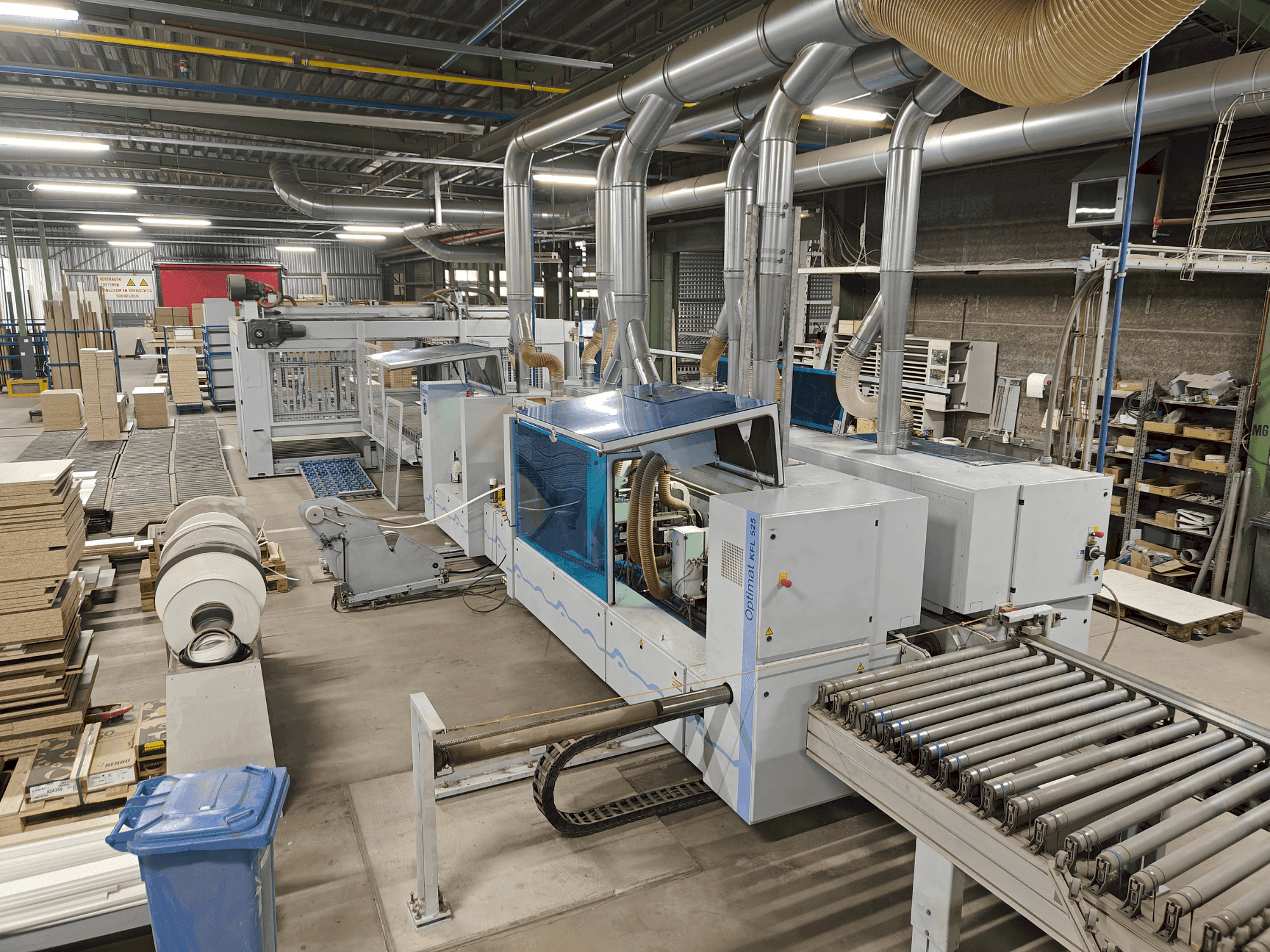

• - This ege bander line consists of an automatic infeed TBH500/D/25/12, a double edgebander KFL525/6/A3/15, a turning station TD31/35/12, a double edgebander KFL526/8/A3/35, a corner transport TFW530/R/RL/30/12/Q and a vacuum outfeed stacker TSP410/D/25/12.
• - Pre-milling Unit: 0.55 kW motors at 12000 RPM.
• - Multi-profile Post-processing Unit: Automated with presets for max. 3 profiles.
• - Automated Pressure Zone Adjustment: For varying edge thicknesses.
• - Air Spray Device: For edge lubrication top and bottom.

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - The machine is equipped with noise protection for format and post-processing, precise electronic width adjustment, and a compact dual-chip removal in both longitudinal and transverse directions. It includes additional rollers and a conveyor for infeed and discharge to optimize processing efficiency.

Extra information

• - Feed Rate: Infinitely variable from 15 m/min to 40 m/min (optionally up to 50 m/min). Workpiece Overhang: Fixed at 30 mm, optionally adjustable. Workpiece Thickness: Ranges from 12 mm to 40 mm. Workpiece Length: Minimum of 250 mm. Minimum Workpiece Width: 195 mm. Maximum Workpiece Width: 1500 mm. Edge Material: Roll from 0.3 mm to 3 mm. Workpiece Heating: Available up to 45 mm thickness to improve bonding quality. Workpiece Length Before Cam: Maximum 1200 mm. Maximum Edge Section: 135 mm² for PVC, 100 mm² for veneer. Roll Diameter: Maximum 830 mm. Pneumatic Connection: 7-8 bar.
