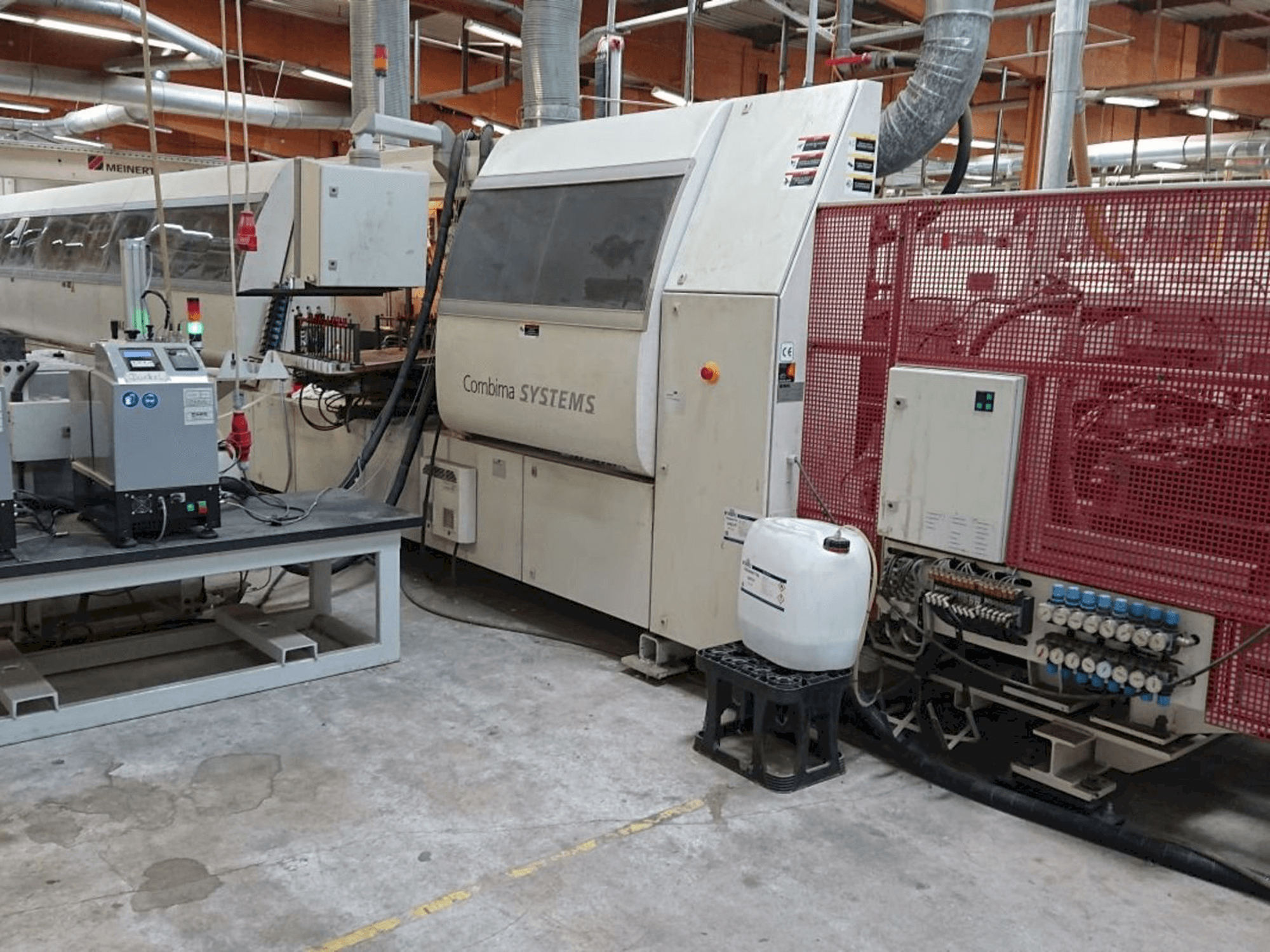

IMA - Combima Systems / I/R751220/R3DE-EDG-IMA-2005-00001

Additional Equipment

• - Automatic insertion table
• - Agregado KFA Return
• - NC insertion system
• - Inclined roller table as inlet section
• - Additional stop ruler, adjustable via NC axis
• - Agregado double 08.376
• - Radiator 300 lg, 2x1.5 kW
• - Multiple profile/bevel unit
• - Contour milling unit KFA 30
• - Multiple profile scraper unit

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Workpiece amplification: min. 238 mm, max. 2350 mm
  • - Workpiece width: min. 142 mm, max. 800 mm
  • - Workpiece thickness: min. 8 mm, max. 40 mm
  • - Edge height: min. 14 mm, max. 45 mm
  • - Edge thickness: 0. 3 - 3. 0 mm
  • - Feed speed: 5-25 m/min
  • - Glue specification for workpiece thickness: max. 50mm
  • - Pre-melting containers for pu glue: 2
  • - Edge magazine: 12-compartment for roll material 0. 3-3 mm thick
  • - Roll holder vertical: max. Roll diameter 850 mm, max. Edge height 45 mm
• Qualitative Machine Benefits:
  • - Cutting unit: 08. 42, for 2 motors
  • - Milling/profile milling/grooving units: two units, each with 1 motor, 100 hz, 6000 rpm and 600 rpm respectively
  • - Motor shaft for hydro-format tool system
  • - Return system: meinert brand
  • - Flat scraper blade 08. 517
  • - Copy buffing unit 08. 604
  • - Buffing unit 08. 617-2
  • - Double base 75,184 1050 mm high level
  • - Precision in edge processing with multiple units for cutting, milling, and buffing
  • - High-quality glue application system for straight edges

Extra information

• - Machine still under power. The machine is designed for single-sided combination processing including formatting, edge gluing, and edge finishing of wood or wood-based panel-shaped workpieces. It is specifically tailored for the production of strand goods in the second run.

Payment Terms

• Payment in advance

•
