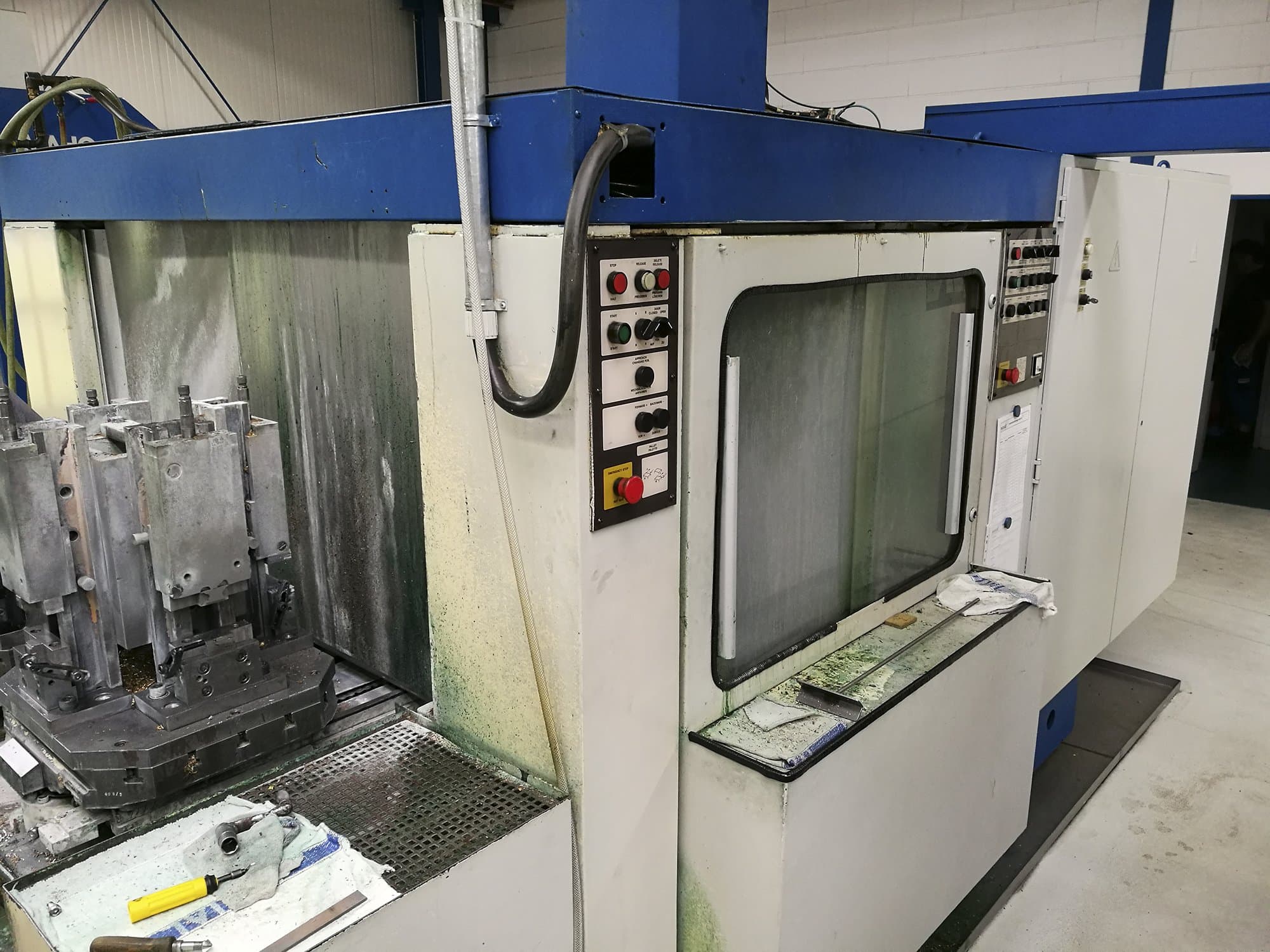

Hueller Hille NBH 70 Horizontal Machining Center

This Hueller Hille NBH 70 Horizontal Machining Center from 1985 was manufactured in Germany. Operated through a SIEMENS SINUMERIK System 8 Control unit, this machine has mainly worked with steel during the past.

Overview

brand: HULLER HILLE
year: 1985
MODEL: NBH 70
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - HULLER HILLE NBH 70

General Data

Measurements width: 4040 mm
Measurements depth: 2300 mm
Measurements height: 2920 mm
Machine weight: 8700 kg

Control Unit

Model: SINUMERIK System 8
CNC main language: German
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 25-4000 1/min

Movement

X-AXIS Movement: 630 mm
X-AXIS Rapid traverse: 15000 mm/min
Y-AXIS Movement: 500 mm
Y-AXIS Rapid traverse: 15000 mm/min
Z-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 15000 mm/min

Table

Outer length: 500 mm
Outer width: 400 mm
Number of tslots: 5
Distance between: 80 mm

Tools

Max weight: 15 kg
Max tool diameter: 110 mm
Max tool length: 320 mm

Media

Main electronic connection: 380 V
Power consumption: 36 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
