- Hurco BMC 30 Vertical Machining Center

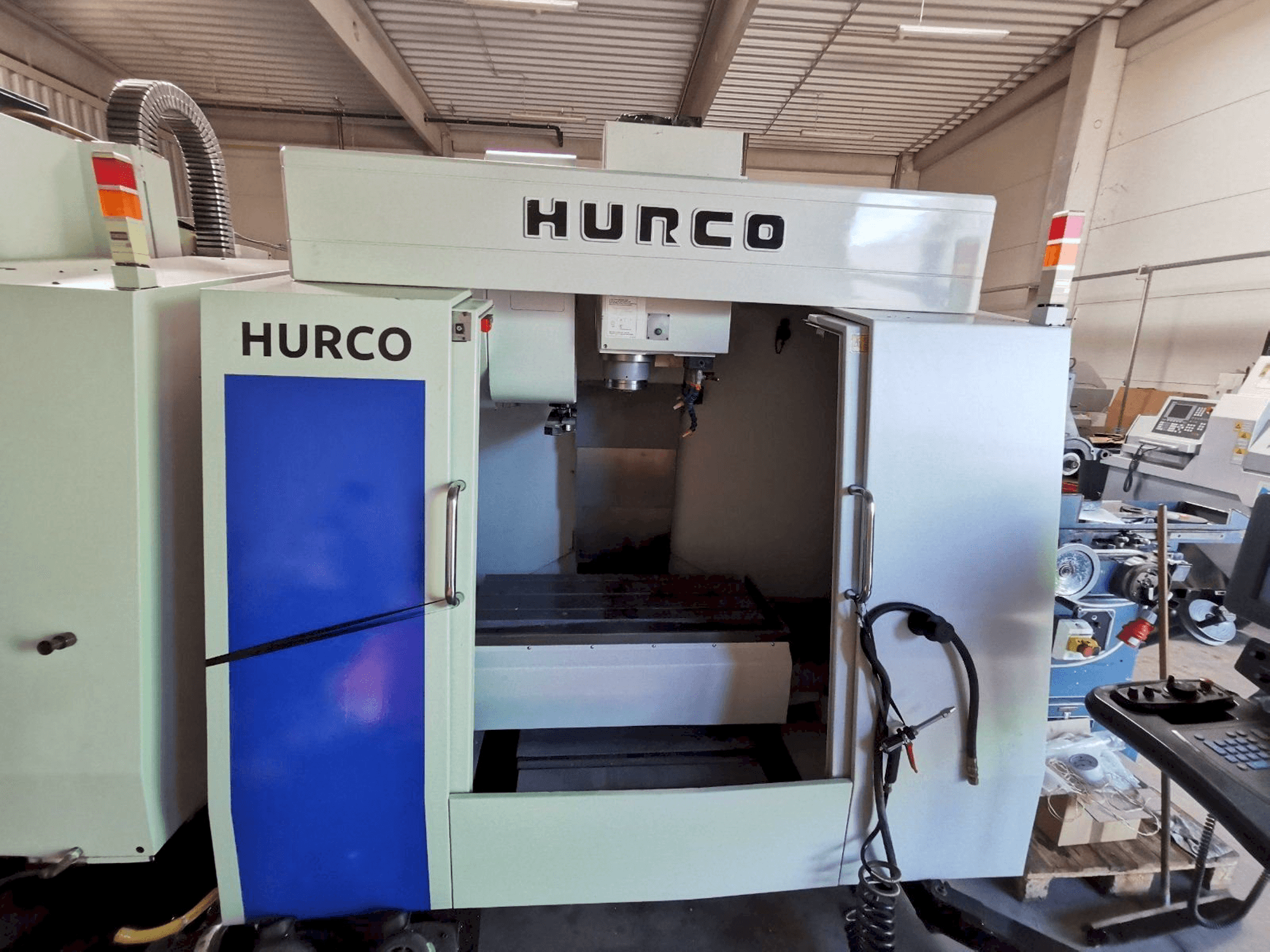

This Hurco BMC 30 Vertical Machining Center was built in the year 2000. It is equipped with a Hurco ULTIMAX 4 control unit. This 3 axis machine operates with a spindle speed range between 80 - 8000 rpm. It comes with a table dimensions of 1020 x 510 mm and tools magazine with 24-position lever derailleur.
Overview
- brand: Hurco
- year: 2000
- MODEL: BMC 30
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Hurco
Technical Information - Hurco BMC 30
General Data
- Measurements width: 2300 mm
- Measurements depth: 2400 mm
- Measurements height: 2700 mm
- Machine weight: 4900 KG
Control Unit
- Brand: Hurco
- Model: ULTIMAX 4
Main drive
- Spindle speed range: 80 - 8000 1/MIN
- Spindle motor power: 11 kW
- Tool taper: SK40
- Number of axis: 3
Movement
- X-AXIS Movement: 762 mm
- Y-AXIS Movement: 510 mm
- Z-AXIS Movement: 610 mm
Table
- Outer length: 1020 mm
- Outer width: 510 mm
- Table load: 1350 KG
Media
- Internal cooling: Yes
Additional Equipment
- - Tool magazine with 24-position lever derailleur
- - Signal light
- - Electric, portable handwheel
- - Slippers
- - DXF, rigid tapping, pockets / islands, ULTIPRO software options
Additional Information
- Technical Machine Benefits:
- - Cooling water system
- Qualitative Machine Benefits:
- - Excellent condition, tested
- - Includes documentation
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
