Hurco DCX 22Ti Milling

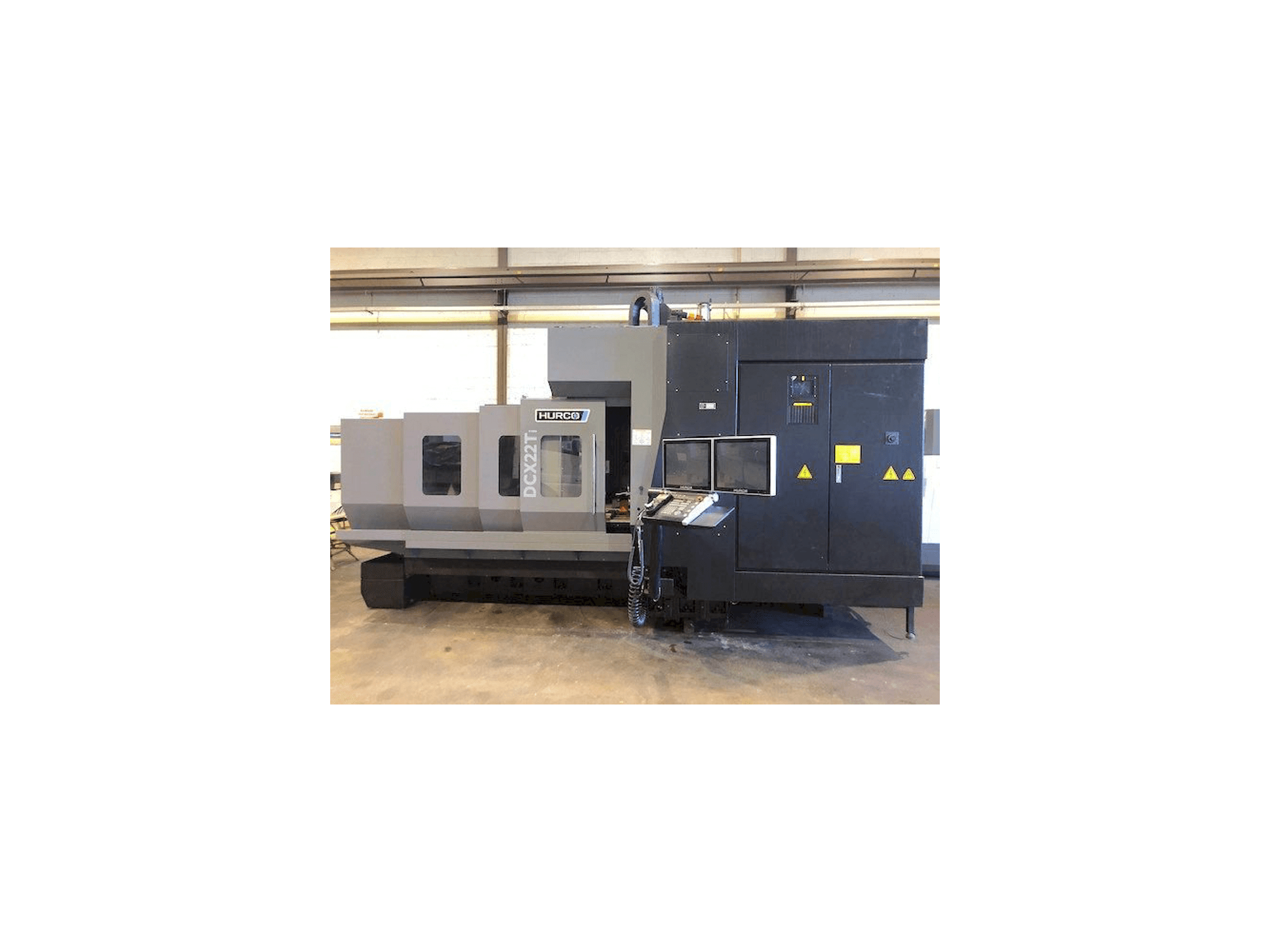

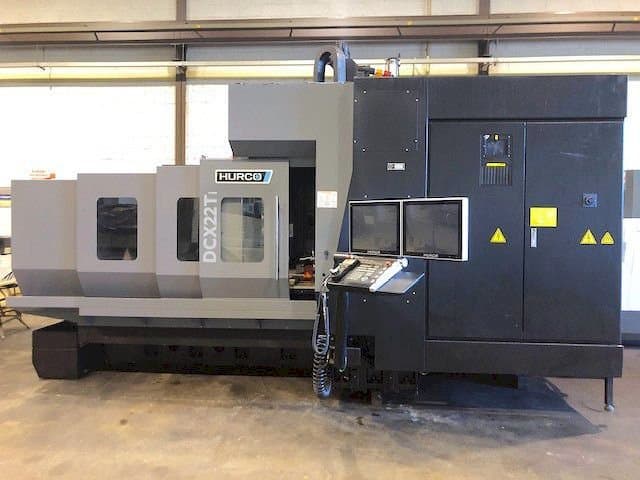

This Hurco DCX 22Ti Vertical Machining Center was manufactured in 2017. It has 5916 working hours, of which 2211 are spindle hours. It is equipped with a Hurco Control unit and can work with a spindle speed up to 12000 rpm. This 3-axis machine incorporates a swarf conveyor and a spindle coolant. It is in very good conditions.

Overview

brand: Hurco
year: 2017
MODEL: DCX 22Ti
production hours: 5916
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco DCX 22Ti

General Data

Measurements width: 7246 mm
Measurements depth: 6078 mm
Measurements height: 3900 mm
Machine weight: 20000 kg

Control Unit

Brand: HURCO

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 2200 mm
Y-AXIS Movement: 1700 mm
Z-AXIS Movement: 750 mm

Workpiece

Workpiece weight: 8000 kg

Table

Outer length: 2100 mm
Outer width: 1600 mm
Number of tslots: 9

Tools

Slots in storage: 40
Max weight: 7 kg
Max tool diameter: 75 mm
Max tool length: 300 mm
Type of tool holder: BT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Simultaneous axis operation
- - Distance between columns: 1750 mm
- - Spindle nose to table: 152 – 902 mm
- - Spindle motor power: 18 kw
- - Rapid feedrates x/y/z 32/32/24 m/min
- - Thru spindle coolant
- - Spindle probe
- - Swarf conveyor
- - 3-axis portal machining center
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
