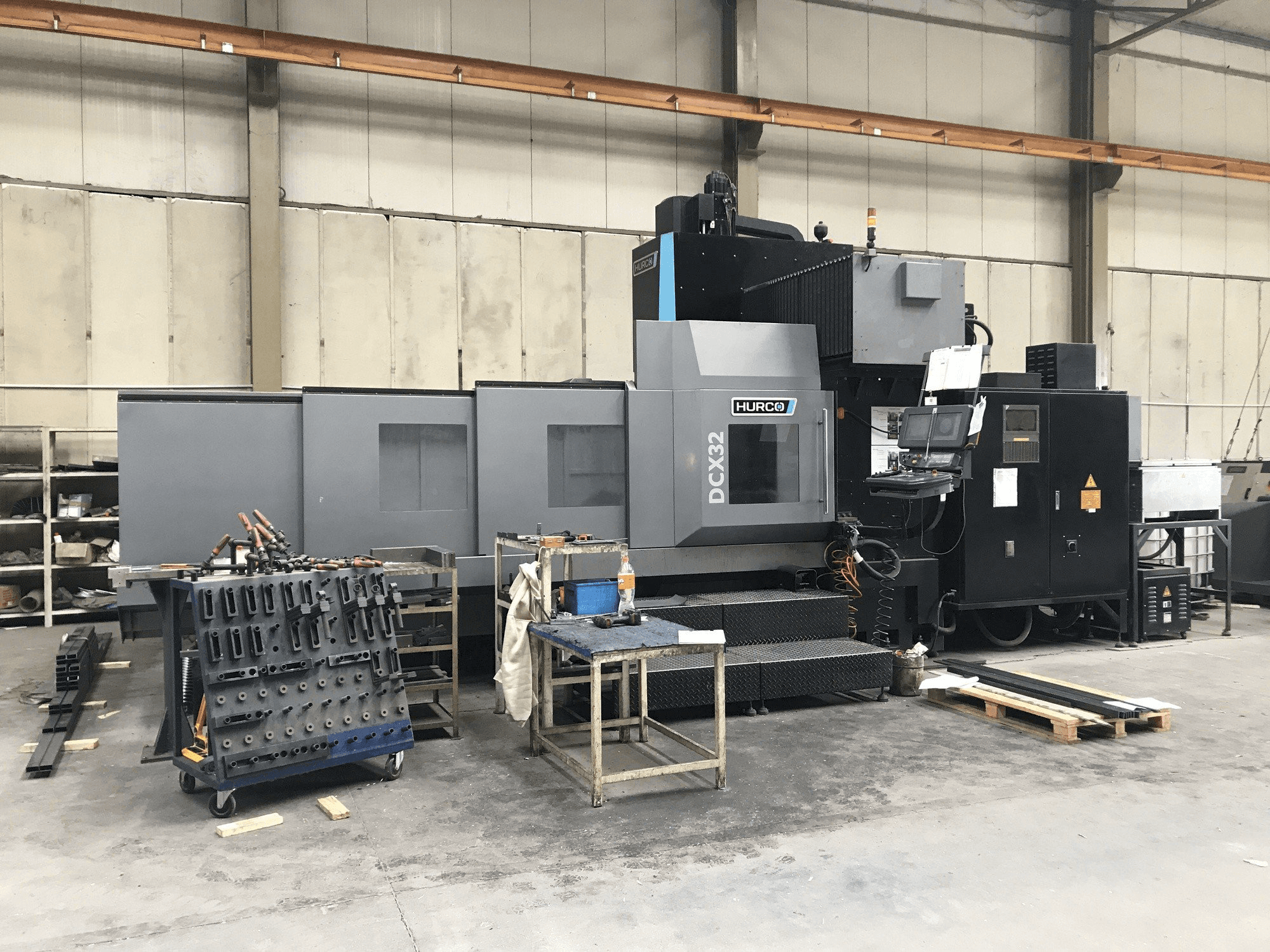

Hurco DCX32/50T Milling Machine

This Hurco DCX32/50T Milling Machine was made in 2013 in Taiwan. It has 11939 working hours. It is equipped with a WinMax DCX32 ITX control unit. This machine operates with a spindle speed up to 6000 rpm.

Overview

brand: Hurco
year: 2013
MODEL: DCX32/50T
production hours: 11939
application type: Milling
Location: Hungary
machine type: Gantry Milling Machine
availability: Sold

Technical Information - Hurco DCX32/50T

General Data

Measurements width: 9960 mm
Measurements depth: 5935 mm
Measurements height: 4700 mm
Machine weight: 35000 kg

Control Unit

Model: DCX32 ITX

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 3200 mm
Y-AXIS Movement: 2100 mm
Z-AXIS Movement: 920 mm

Workpiece

Workpiece weight: 11000 kg

Table

Outer length: 3000 mm
Outer width: 1700 mm

Tools

Slots in storage: 40
Max weight: 15 kg
Type of tool holder: SK50

Media

Main electronic connection: 400 V
Power consumption: 42 kVA
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Robust and reliable machine structure.
- - Well suited for large workpieces.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
