- Hurco DCX32-5Si

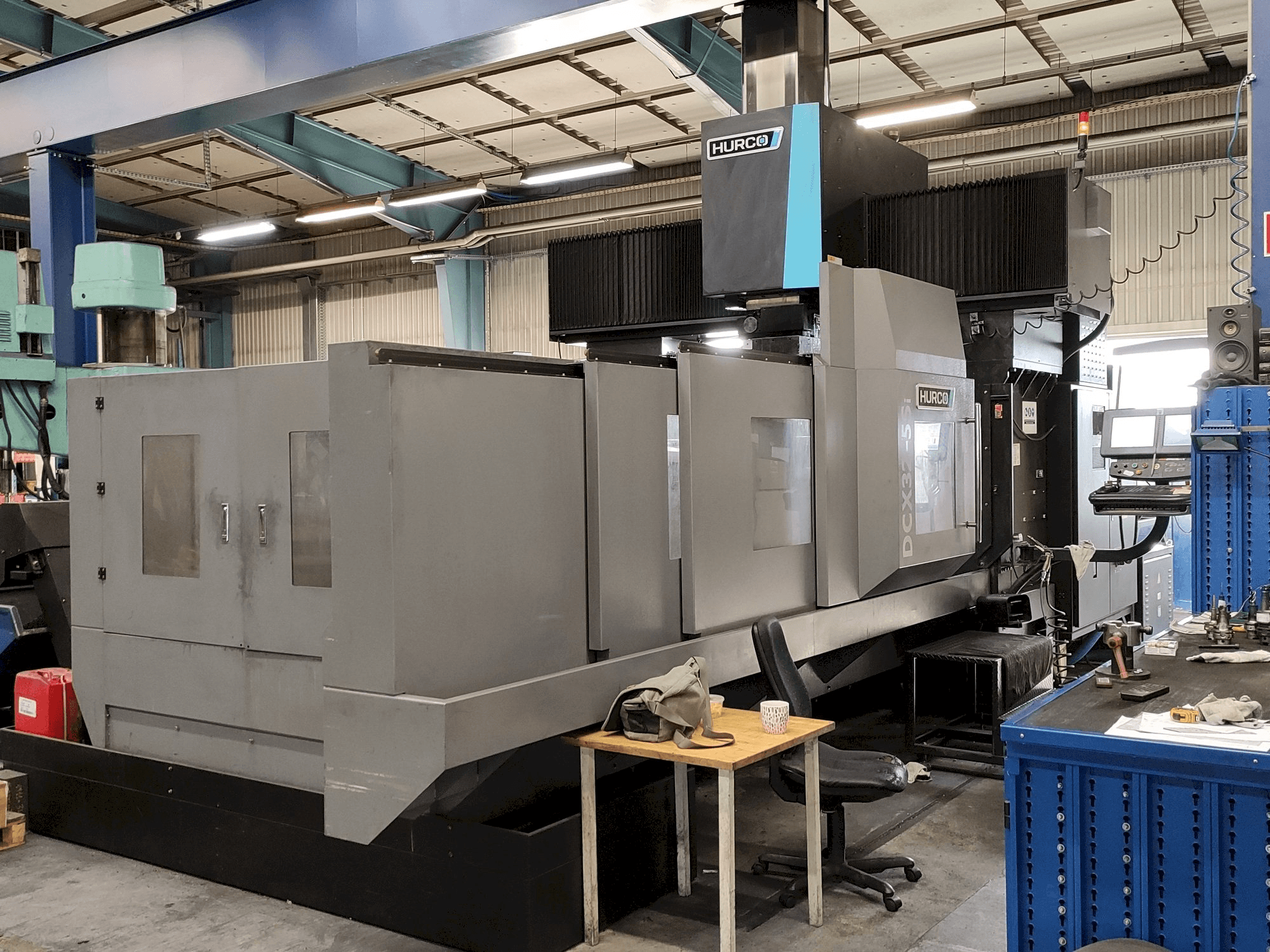

This Hurco DCX32-5Si Dual Column 5 Axis Universal Machining Center was manufactured in 2015 in Taiwan. It has 20554 working hours. This machine is equipped with a control unit of the same brand. It operates with a spindle speed of 18000 rpm. This machine includes a part tool probing. It is in very good working condition and ready for tests. This machine is still in production and comes with its full documentation.
Overview
- brand: Hurco
- year: 2015
- MODEL: DCX32-5Si
- production hours: 20554
- application type: Milling
- Location: Poland
- machine type: Universal Machining Centre
- availability: Sold
- control unit brand: HURCO
Technical Information - Hurco DCX32-5Si
General Data
- Measurements width: 8229 MM
- Measurements depth: 4410 MM
- Measurements height: 6364 mm
- Machine weight: 37000 KG
Control Unit
- Brand: HURCO
Main drive
- Spindle speed range: 18000 1/MIN
- Spindle motor power: 54 KW
- Tool taper: HSK 63 A
- Number of axis: 5
Movement
- X-AXIS Movement: 3200 MM
- Y-AXIS Movement: 2000 MM
- Z-AXIS Movement: 900 mm
Table
- Min distance between vertical spindle and table: 65 MM
- Max distance between vertical spindle and table: 965 mm
- Table load: 11000 kg
Tools
- Number of stations: 40 pcs
- Max weight: 7 kg
- Max tool diameter: 75-120 mm
- Max tool length: 300 mm
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 138 kVA
Additional Equipment
- - part tool probing
Additional Information
- Technical Machine Benefits:
- - Travels axis (b/c) : ±105 deg / ±185 deg
- - Working surface / rotary diameter : 3000 x 1700 mm
- - Spindle torque 85 nm
- - Automatic tool changer (atc); atc time (tool to tool ): 5 sek
- - Working feed: 15000 mm/min
- Qualitative Machine Benefits:
- - Machine in very good working condition and ready for tests.
- - It is still at the production.
- - Full documentation available.
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
