➤ Used HURCO HTX 500 For sale | gindumac.com

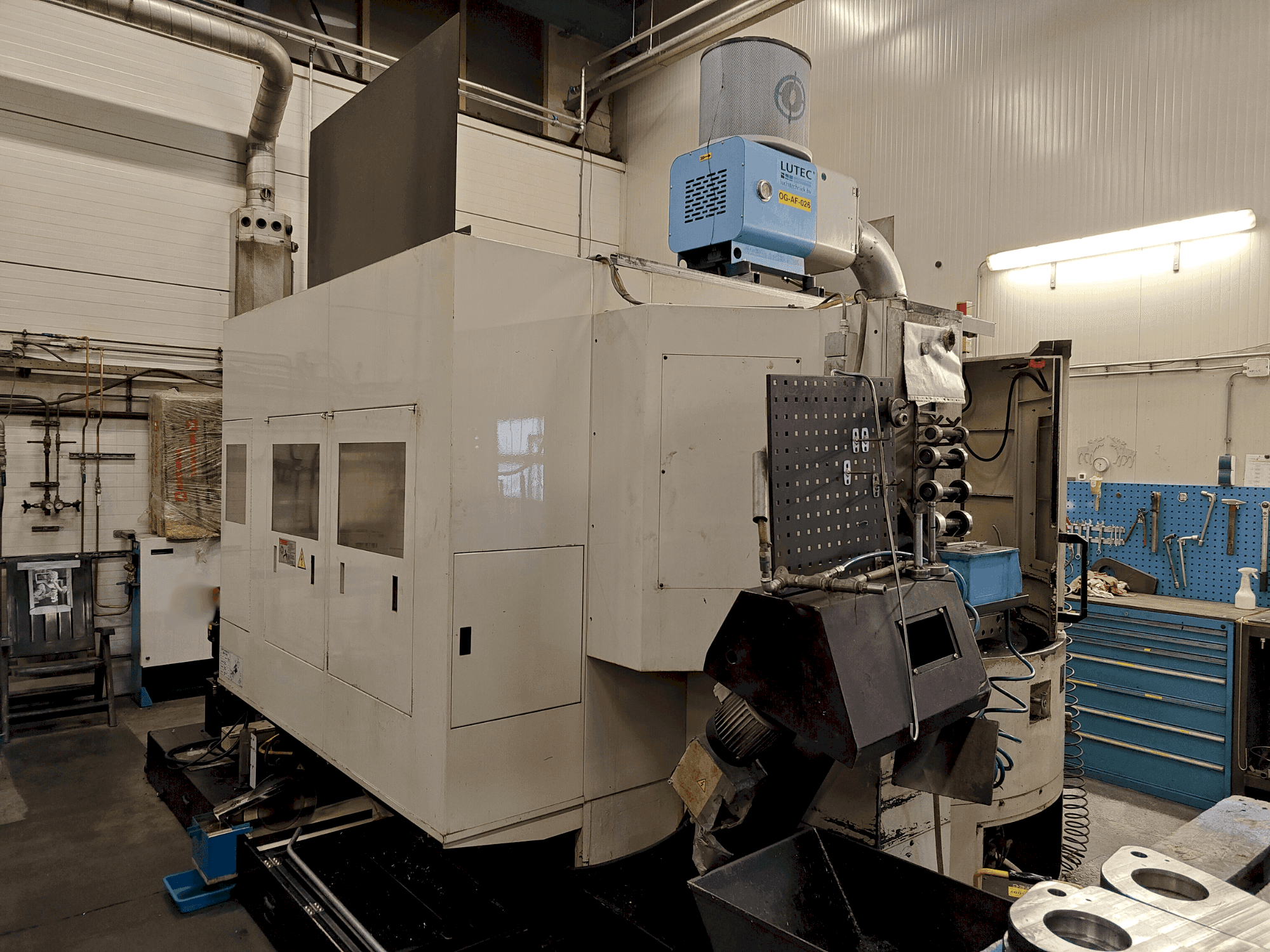

This 4-axis HURCO HTX 500 horizontal machining center was manufactured in 2010, featuring a large work cube with 28” x 24” x 24” travels and a dual pallet system for enhanced productivity. It boasts a high-speed 12,000 RPM spindle, a powerful 24 HP spindle motor, and rapid traverse rates up to 1,260 ipm. Ideal for rigorous milling tasks, the HURCO HTX 500 machine we have for sale represents a significant asset for any machining facility. Reach out for more information.

Overview

brand: Hurco
year: 2010
MODEL: HTX 500
application type: Milling
Location: Netherlands
machine type: Horizontal Machining Centre
availability: From March 2025
control unit brand: HURCO

Technical Information - Hurco HTX 500

General Data

Measurements width: 4300 MM
Measurements depth: 2542 MM
Measurements height: 2810 MM
Machine weight: 13000 KG

Control Unit

Model: UltiMax4
Brand: HURCO

Main drive

Number of spindles: 1
Spindle speed range: 12,000 1/MIN
Spindle motor power: 24 HP
Tool taper: CAT 40

Movement

X-AXIS Movement: 710 MM
X-AXIS Rapid traverse: 1,260 ipm
Y-AXIS Movement: 600 MM
Y-AXIS Rapid traverse: 1,260 ipm
Z-AXIS Movement: 600 MM
Z-AXIS Rapid traverse: 1,260 ipm
AXIS 1 Movement: 360 °

Workpiece

Workpiece weight: Maximum 500 kg

Table

Outer length: 500 mm
Outer width: 500 mm
Min distance between vertical spindle and table: 150 mm
Max distance between vertical spindle and table: 765 mm

Tools

Slots in storage: 60
Max tool diameter: 80 mm
Max tool length: 350 mm

Additional Equipment

- Dual Pallet System
- Dual 12” LCD Color Monitors
- Conversational and NC (G-Code) programming
- Comprehensive cooling and lubrication systems

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Precision and repeatability with positioning accuracy of +/- 0. 005 mm and repeatability of +/- 0. 002 mm
- - Voltage required: 208-240 vac / 60hz
- - Power rating: 60 kva
- - Air requirements: 5 cfm @ 80-100 psi
- - Full enclosure splash guards and safety features compliant with ce, ul, csa standards
- - Extensive diagnostics and on-screen help features for ease of use

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
