➤ Used Hurco VM 10i - 2018 - Vertical Machining Center

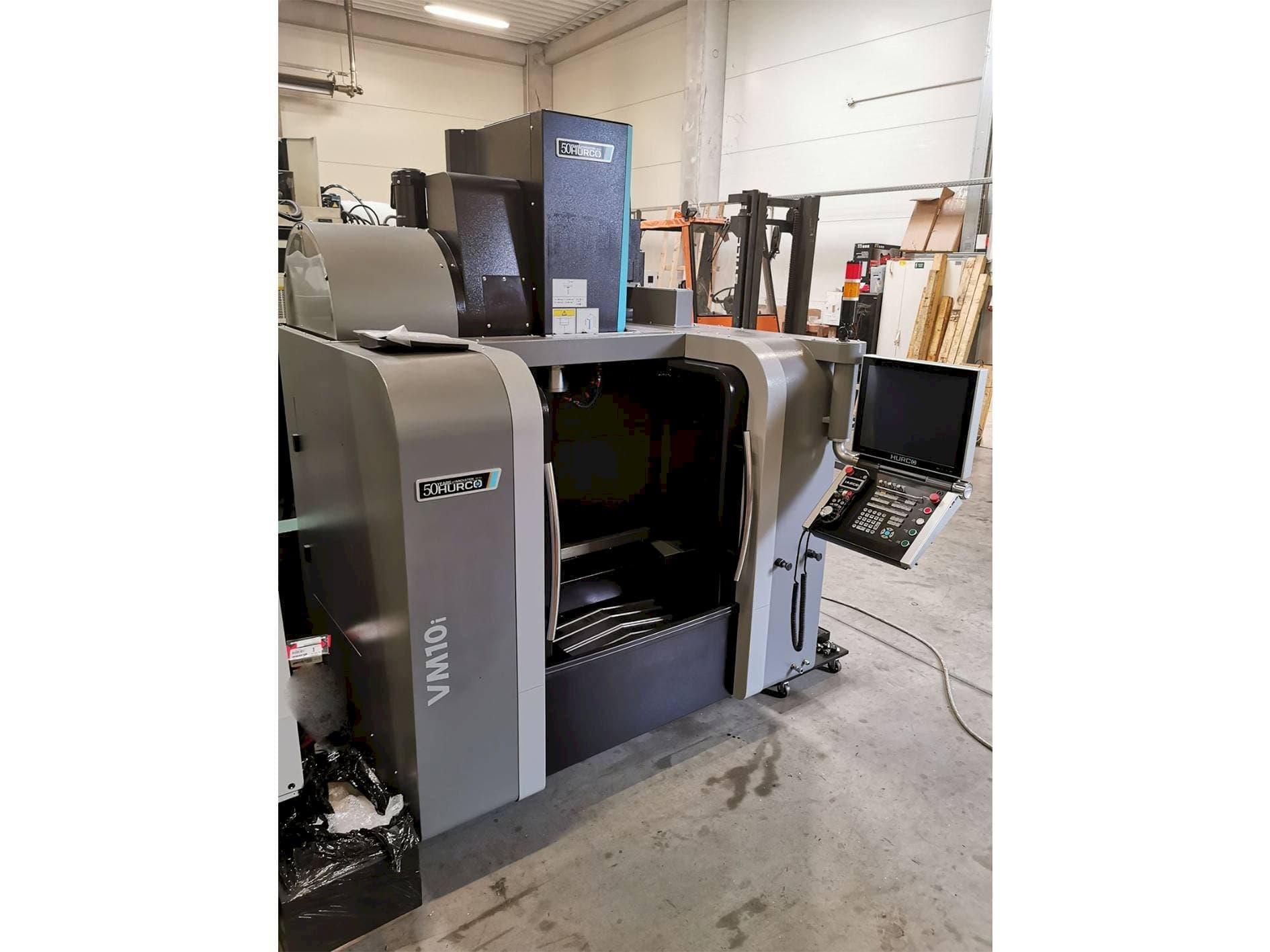

This Hurco VM 10i Vertical Machining Center was built in the year 2018. It has been working for 1800 spindle hours. This machine can work with a spindle speed up to 10000 rpm. It is equipped with a MAX5 control unit and it comes with a table dimensions of 762 x 406 mm. Very good condition.

Overview

brand: Hurco
year: 2018
MODEL: VM 10i
production hours: 1800
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MAZATROL

Technical Information - Hurco VM 10i

General Data

Measurements width: 2000 mm
Measurements depth: 1800 mm
Measurements height: 2600 mm
Machine weight: 3070 kg

Control Unit

Brand: MAZATROL

Main drive

Number of spindles: 1
Spindle speed range: 10 - 10000 1/MIN
Spindle motor power: 11 kW
Number of axis: 3

Movement

X-AXIS Movement: 660 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Table

Outer length: 762 mm
Outer width: 406 mm

Additional Equipment

- ATC magazine 24-fold, arm type
- Rapid traverse X/Y/Z 28 M/min
- Aufnahme SK40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Software options: 3d milling, swept (swept), pocket and islands, ramp islands, ramp, material and workpiece database, synchronous speed cutting
- - Portable handwheel
- - Coolant system
- - Machine feet
- - Signal light
Qualitative Machine Benefits:
- - Very good condition
- - Like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
