Used Machining center (vertical) Hurco VM 30 - 2012 - for sale | gindumac.com

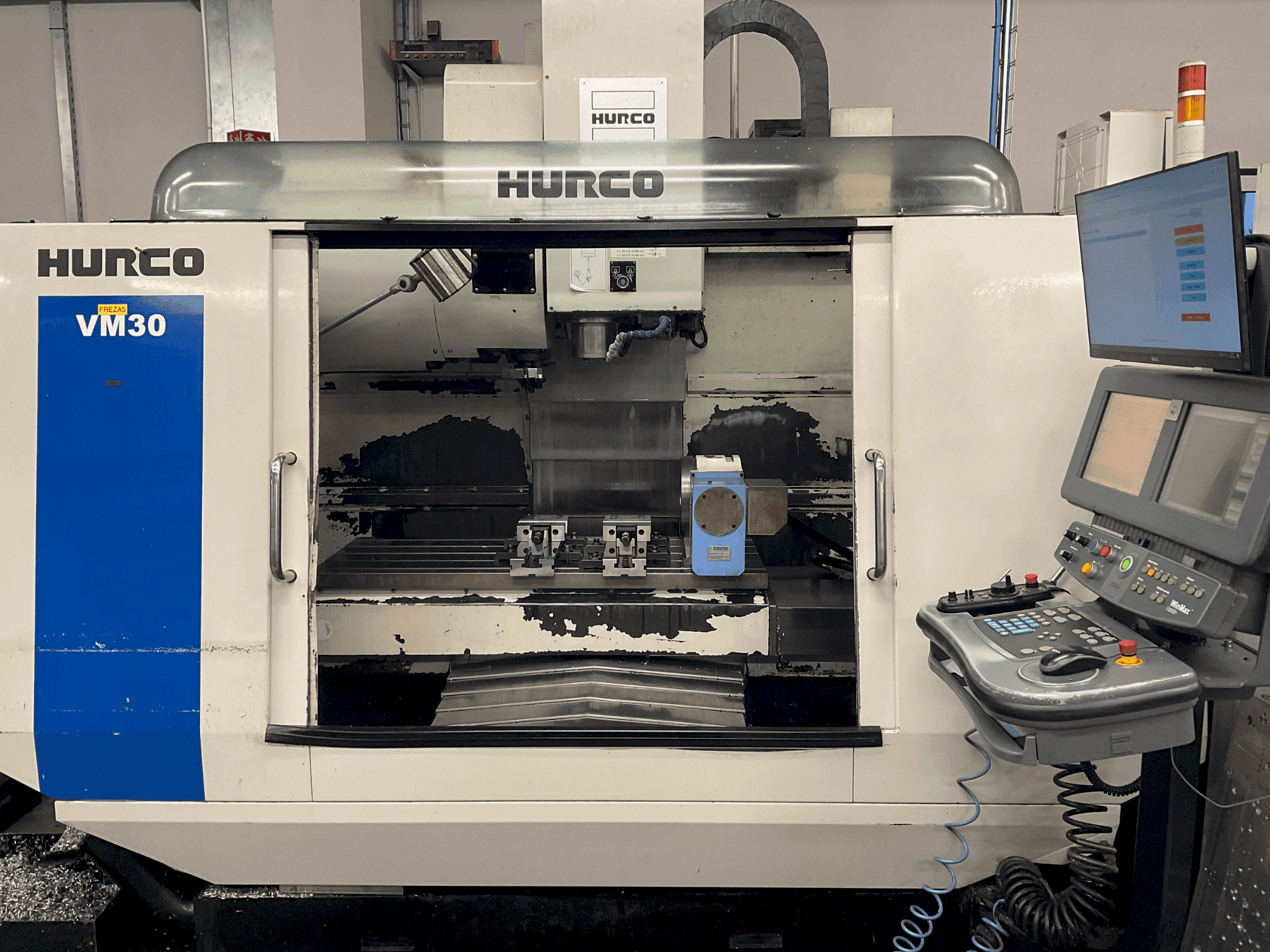

This used 4-axis vertical machining center was manufactured in 2012, available from May '24. The Hurco VM 30 boasts dimensions of 2,830 x 1,800 x 2,580mm, and a weight of 4550 kg, with a spindle that has logged 18,513 hours. It features a 1,320 x 610 mm table clamping surface, a maximum table load of 540 kg, and rapid traverse speeds of 24 m/min in all X/Y/Z axes. The spindle speed ranges from 10 to 10,000 rpm, supported by a 20-position automatic tool changer. Discover the Hurco VM 30 machine we have for sale. Contact us for more details.

Overview

brand: Hurco
year: 2012
MODEL: VM 30
production hours: 18513
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold

Technical Information - Hurco VM 30

General Data

Measurements width: 1800 MM
Measurements depth: 2830 MM
Measurements height: 2580 MM
Machine weight: 4550 KG

Main drive

Spindle speed range: 10 - 10,000 1/MIN
Spindle motor power: 15

Movement

X-AXIS Movement: 1270 MM
X-AXIS Rapid traverse: 24
Y-AXIS Movement: 510 MM
Y-AXIS Rapid traverse: 24
Z-AXIS Movement: 510 MM
Z-AXIS Rapid traverse: 24

Table

Outer length: 1320 MM
Outer width: 610 MM
Distance between: 100 to 610 mm
Table load: 540

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle maximum torque: 1,450 rpm
- - Tool clamping din 69871 sk a 40
- - Automatic tool changer: 20 positions
- - Digitally controlled servo drives including 4th axis (kitagawa mr250)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
