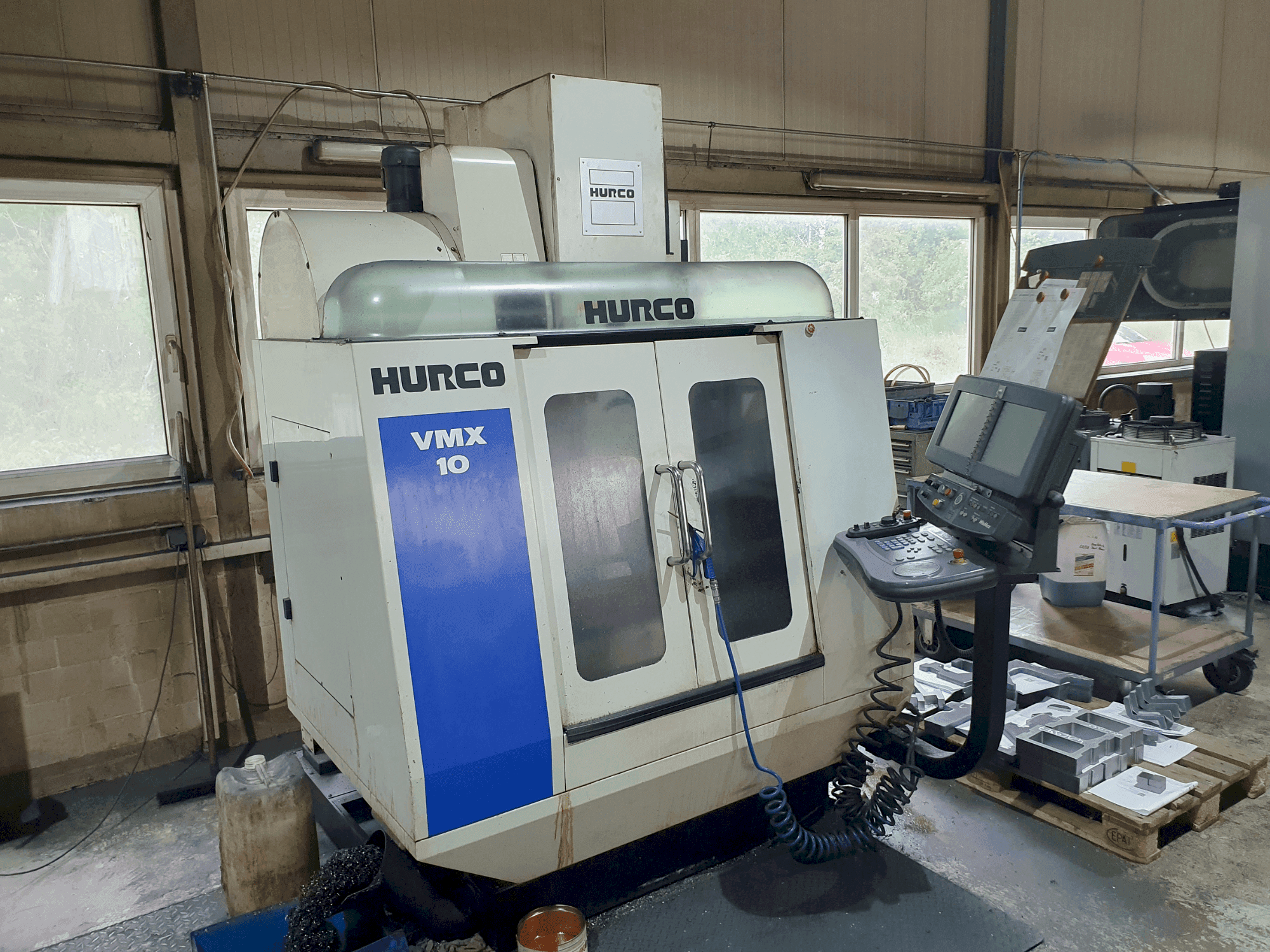

This 3-axis Hurco VMX10 machining center was manufactured in 2011. It features a robust cast iron bed, linear guides on all axes, and a high-performance three-phase motor spindle with a maximum speed of 10,000 min^-1. The machine offers a working range of 660mm x 405mm x 510mm and supports a table load of 340kg. Ideal for precision machining, the Hurco VMX10 machine we have for sale is equipped with WINMAX CNC control. Contact us for further details.
Overview
- brand: Hurco
- year: 2011
- MODEL: VMX10
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Sold
Technical Information - Hurco VMX10
General Data
- Measurements width: 3050 mm
- Measurements depth: 3000 mm
- Measurements height: 2470 mm
- Machine weight: 3000 kg
Control Unit
- Model: CNC-Steuerung
Main drive
- Spindle speed range: 10000 rpm 1/MIN
- Spindle motor power: 11 kW
- Number of axis: 3
Movement
- X-AXIS Movement: 660 mm
- X-AXIS Rapid traverse: 24 m/min
- Y-AXIS Movement: 405 mm
- Y-AXIS Rapid traverse: 24 m/min
- Z-AXIS Movement: 510 mm
- Z-AXIS Rapid traverse: 24 m/min
Table
- Number of tslots: 3
- Table load: 340kg
Tools
- Number of index: 20
Additional Equipment
- - Cooling water tank capacity: 62 litres
- - Screw conveyor
Additional Information
- Technical Machine Benefits:
- - Tapper size: sk - a40
- - Central lubrication: 1 pump (x,y,z)
- - Spindle nose clamping table: 100-610 mm
- - Table clamping surface: 760 mm x 405 mm
- - Clamping grooves, width: 18mm ^h8
- - Spacing: 100mm
- - Machine bed material: cast iron
- - Main drive working spindle: three-phase motor
- - Torque at 1,450 min^-1: 74 nm
- - Feed drives: three-phase motor // feed speed: 10 m/min
- - Positioningg. Travelling distance: 0.01 mm Repeat gen. Travelling distance: 0.005 mm Electrical connection: 14 kVA/20A 400V Compressed air connection: 6bar/0.14 cbm/m
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
