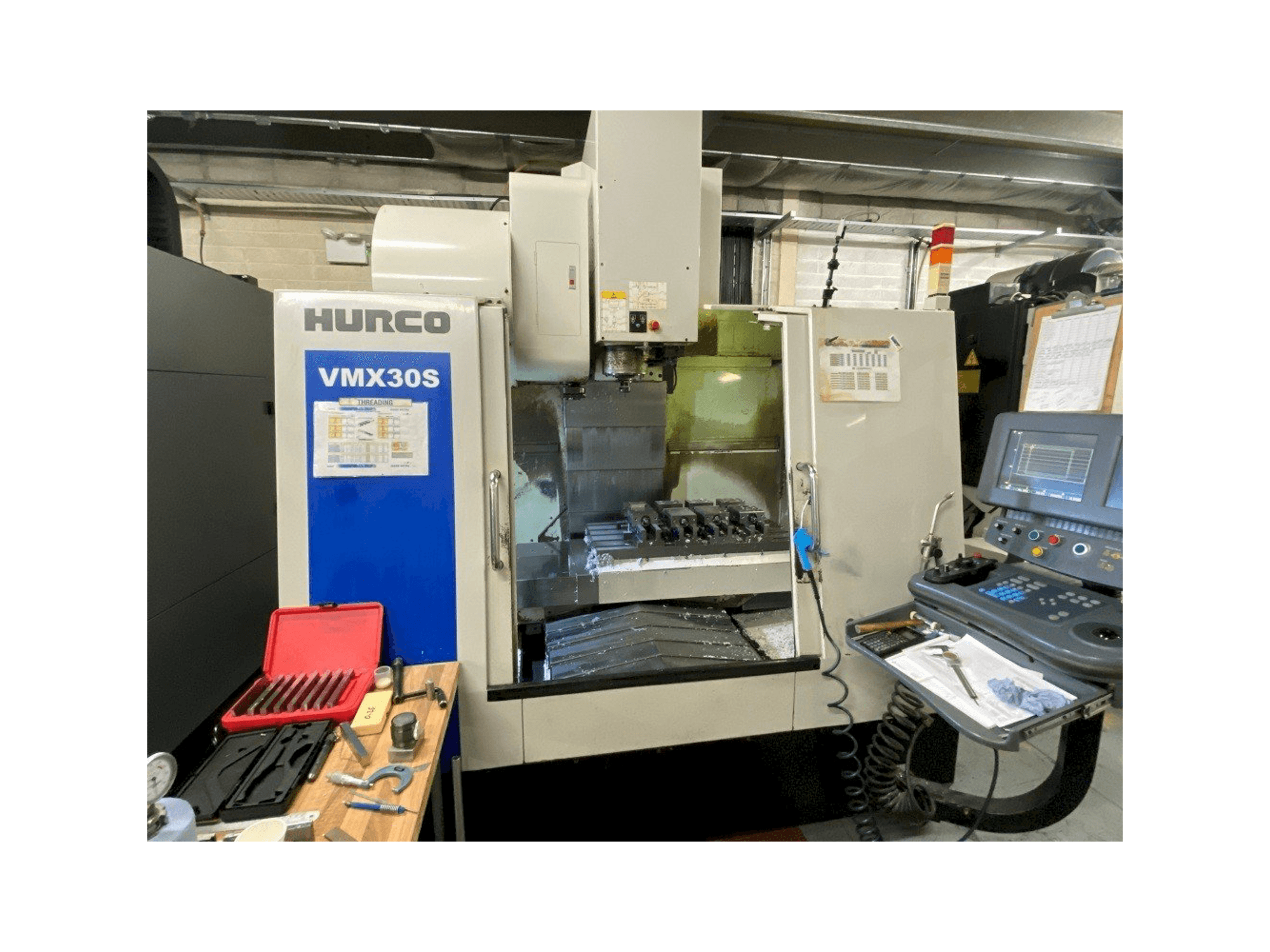

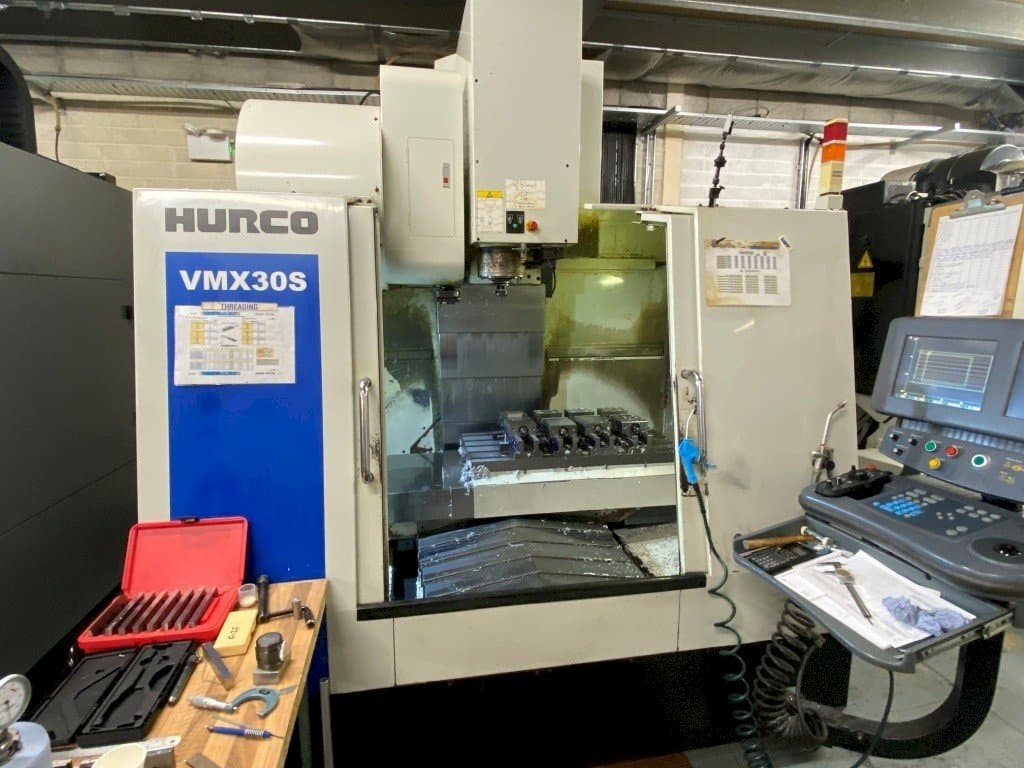

Hurco VMX30S Vertical Machining Center

This Hurco VMX30S Vertical Machining Center was manufactured in the year 2006 in the United States and has 35000 working hours. It is equipped with a HURCO Ultimax 4 control unit and has 3 axis. The machine has a spindle speed of 15000 rpm.

Overview

brand: Hurco
year: 2006
MODEL: VMX30S
production hours: 35000
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco VMX30S

General Data

Measurements width: 2400 mm
Measurements depth: 3000 mm
Measurements height: 2500 mm
Machine weight: 5000 kg

Control Unit

Model: Ultimax 4
CNC main language: English
CNC language customizable: Yes
Brand: HURCO

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 610 mm

Workpiece

Workpiece weight: 1000 kg

Table

Outer length: 1020 mm
Outer width: 510 mm

Tools

Slots in storage: 24
Max weight: 7 kg
Max tool diameter: 80 mm
Max tool length: 300 mm
Type of tool holder: ISO40

Media

Main electronic connection: 400 V
Power consumption: 25 kva

Additional Equipment

- Chip Auger
- Chiller

Additional Information

Machine history

Material type: Aluminium
End product: Machined parts
Industries: Sub contracted machined parts

Machine Benefits

Technical Machine Benefits:
- - Control options include:
- - 3d mold
- - Ulti-pockets
- - Dxf
- - Rigid tap
- - Ramp/helical entry
- - Adaptive surface finishing

Extra information

- Vices in photos not includes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
