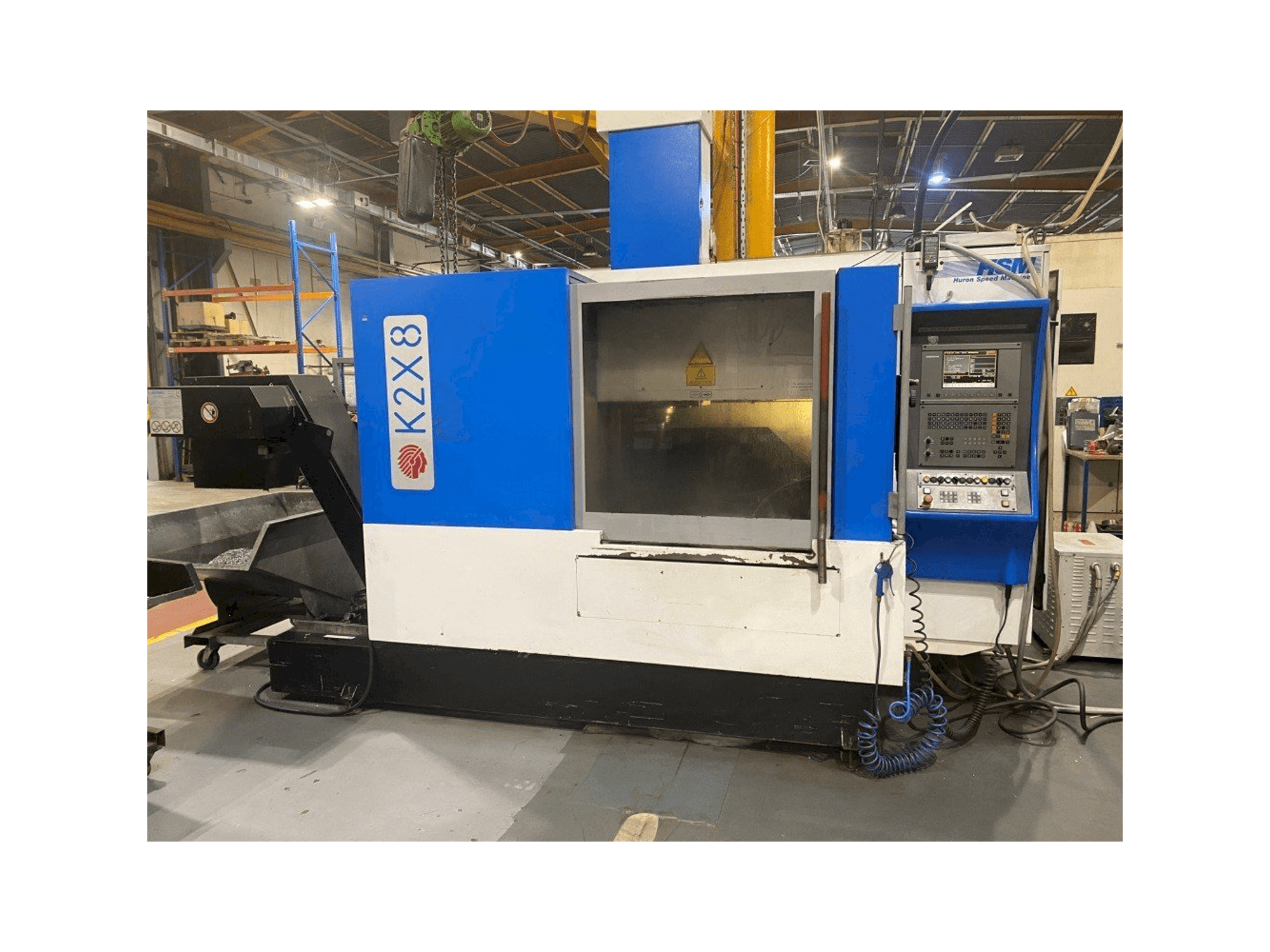

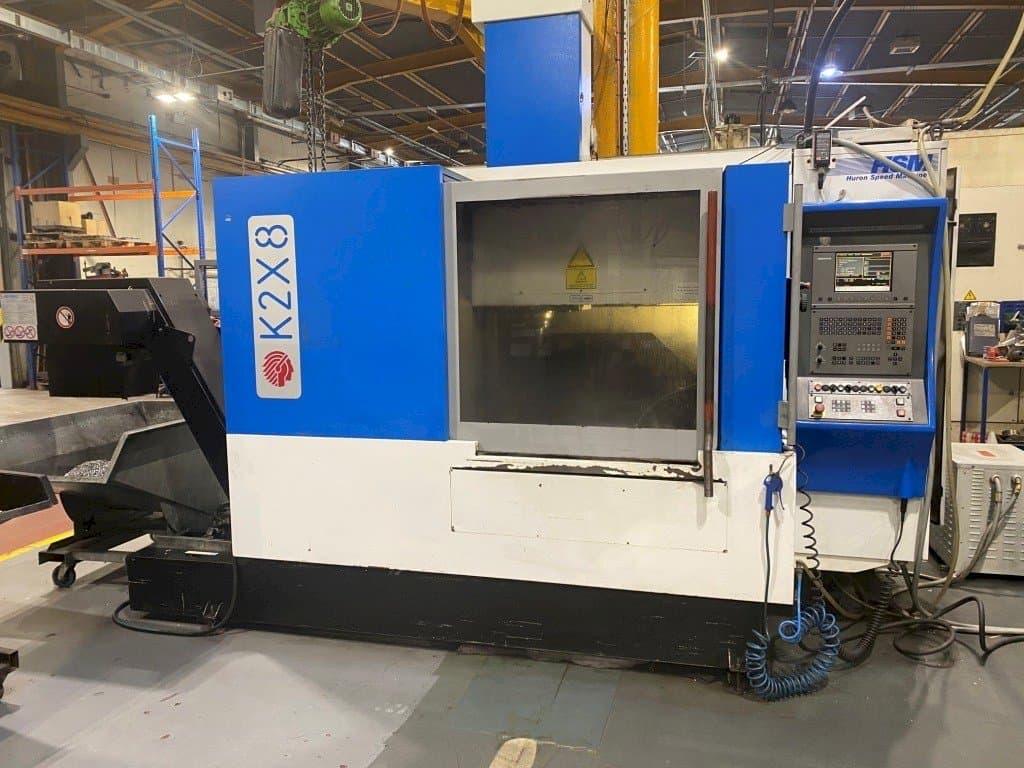

Huron K2X8 Vertical Machining Center

This Huron K2X8 Vertical Machining Center was made in 2006 in France. It is equipped with a Heidenhain iTNC530 control unit. This machine operates with a spindle speed up to 24000 rpm.

Overview

brand: Huron
year: 2006
MODEL: K2X8
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Huron K2X8

General Data

Measurements width: 4480 mm
Measurements depth: 2570 mm
Measurements height: 3070 mm
Machine weight: 7000 kg

Control Unit

Model: iTNC530
CNC main language: English
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 24000 1/MIN

Movement

X-AXIS Movement: 700 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 450 mm

Table

Outer length: 800 mm
Outer width: 600 mm

Tools

Slots in storage: 20
Type of tool holder: HSK63A

Additional Equipment

- Spindle Probe - M& H (Radio Signal) RWP 38.10
- Tool Probe/Setter - Heidenhain TT 130

Additional Information

Machine history

Material type: Mildsteel
End product: Oil and gas industry parts
Industries: Oil and gas industry

Machine Benefits

Technical Machine Benefits:
- - High speed machining centre
- - Spindle power: 24kw
- - Rapids: 50,000mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
