Huron KX30 Vertical Machining center

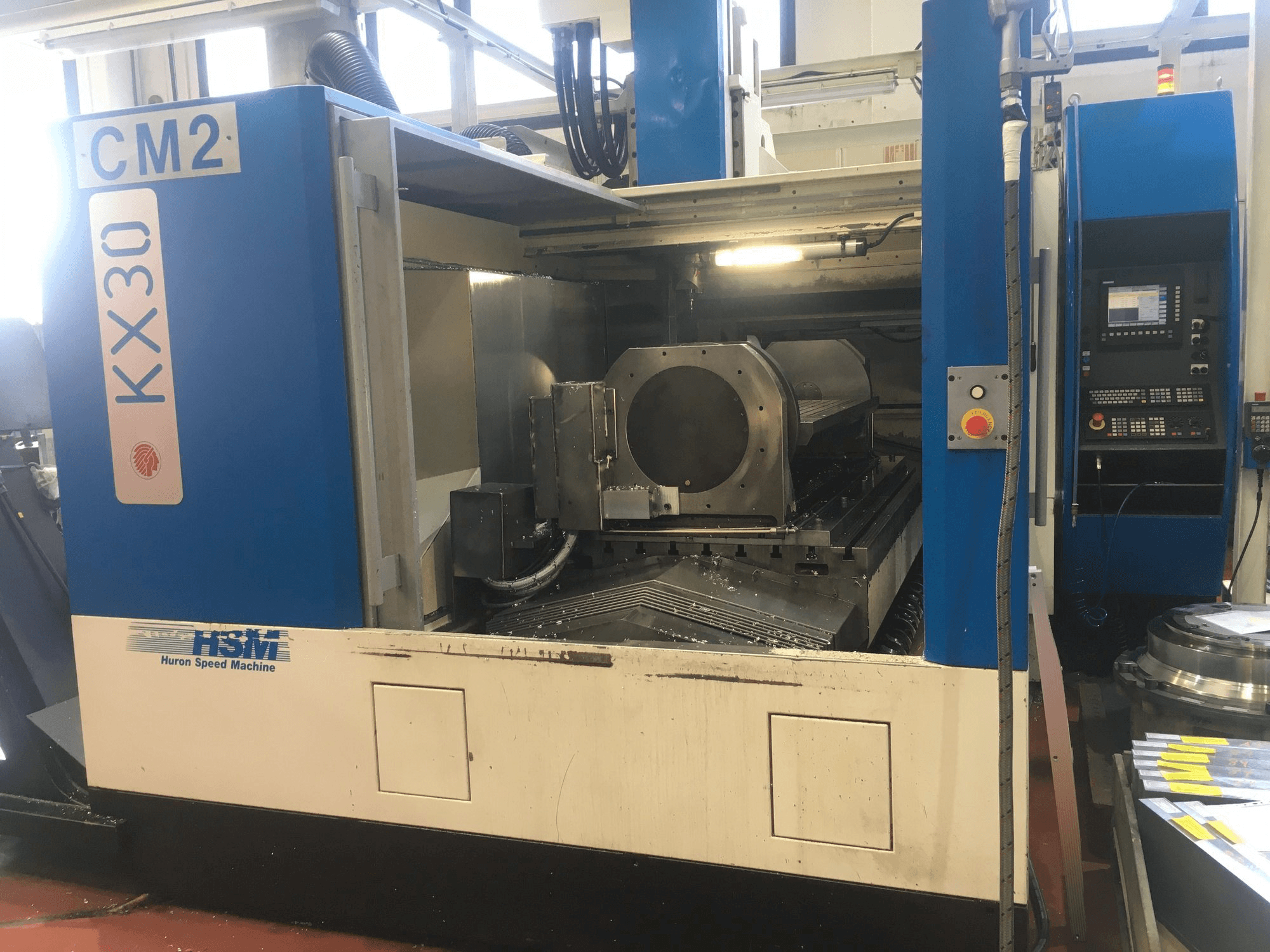

This Huron KX30 Vertical Machining center was built in France in 2001. It is equipped with a Siemens 840D control unit. It has 14135 working hours. This 4 axis machine works with a spindle speed up to 24000 rpm. It is working in the aeronautical industry. Their spindle bearings was changed in 2019. It is in very good condition. It has worked for the aeronautics sector, and the table incorporates a vacuum system so that the part can have a better grip on the table.

Overview

brand: Huron
year: 2001
MODEL: KX30
production hours: 14135
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - Huron KX30

General Data

Machine weight: 17000 KG

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 24000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 1800 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 550 mm

Table

Outer length: 2000 mm
Outer width: 1000 mm
Number of tslots: 10
Distance between: 100 mm

Media

Main electronic connection: 3 x 400V / 50Hz
Internal cooling: Yes

Additional Information

Machine history

Industries: Aeronautics sector

Machine Benefits

Qualitative Machine Benefits:
- - In very good condition
- - Spindle bearings changed in 2019
- - The table incorporates a vacuum system so that the part can have a better grip on the table

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
