Hyundai Wia F400 Milling

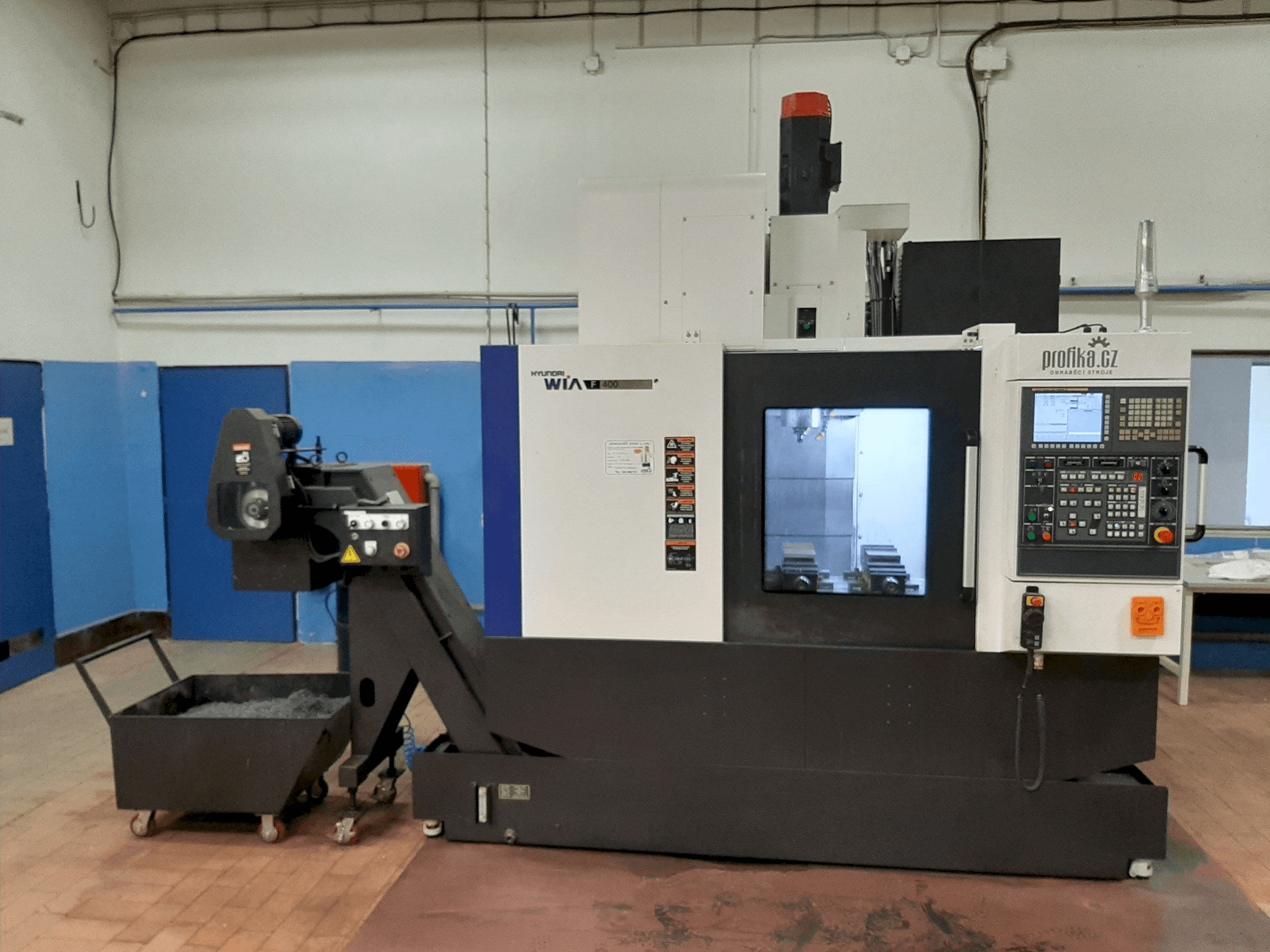

This Hyundai Wia F400 Vertical Machining Center was manufactured in 2016 in South Korea. It only has 997 working hours. This 3 axis machine operates through a Fanuc Series 32i control unit. It has a spindle speed up to 12000 rpm. The machine is like new, very low working hours.

Overview

brand: Hyundai Wia
year: 2016
MODEL: F400
production hours: 997
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: Fanuc

Technical Information - Hyundai Wia F400

Control Unit

Brand: Fanuc
Model: Series 32i

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 11/7.5 kW
Number of axis: 3

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 460 mm
Z-AXIS Movement: 520 mm

Workpiece

Workpiece weight: 600 kg

Table

Outer length: 1000 mm
Outer width: 460 mm

Tools

Slots in storage: 24
Type of tool holder: #40

Media

Main electronic connection: 380 V
Power consumption: 20 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Workpiece probe omp 60 renishaw
- - Cooling thru spindle 20 bars
- - Tool probe ts27r renishaw
- - Manual guide workshop programming
- - Software options: fanuc al contour control ii, hw-mcs, hw-afc
- - Set of tool holders
- - Transformer
- - Rapid feeds 32/32/32 m/min
Qualitative Machine Benefits:
- - Machine like new

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
