Hyundai Wia F500 PLUS

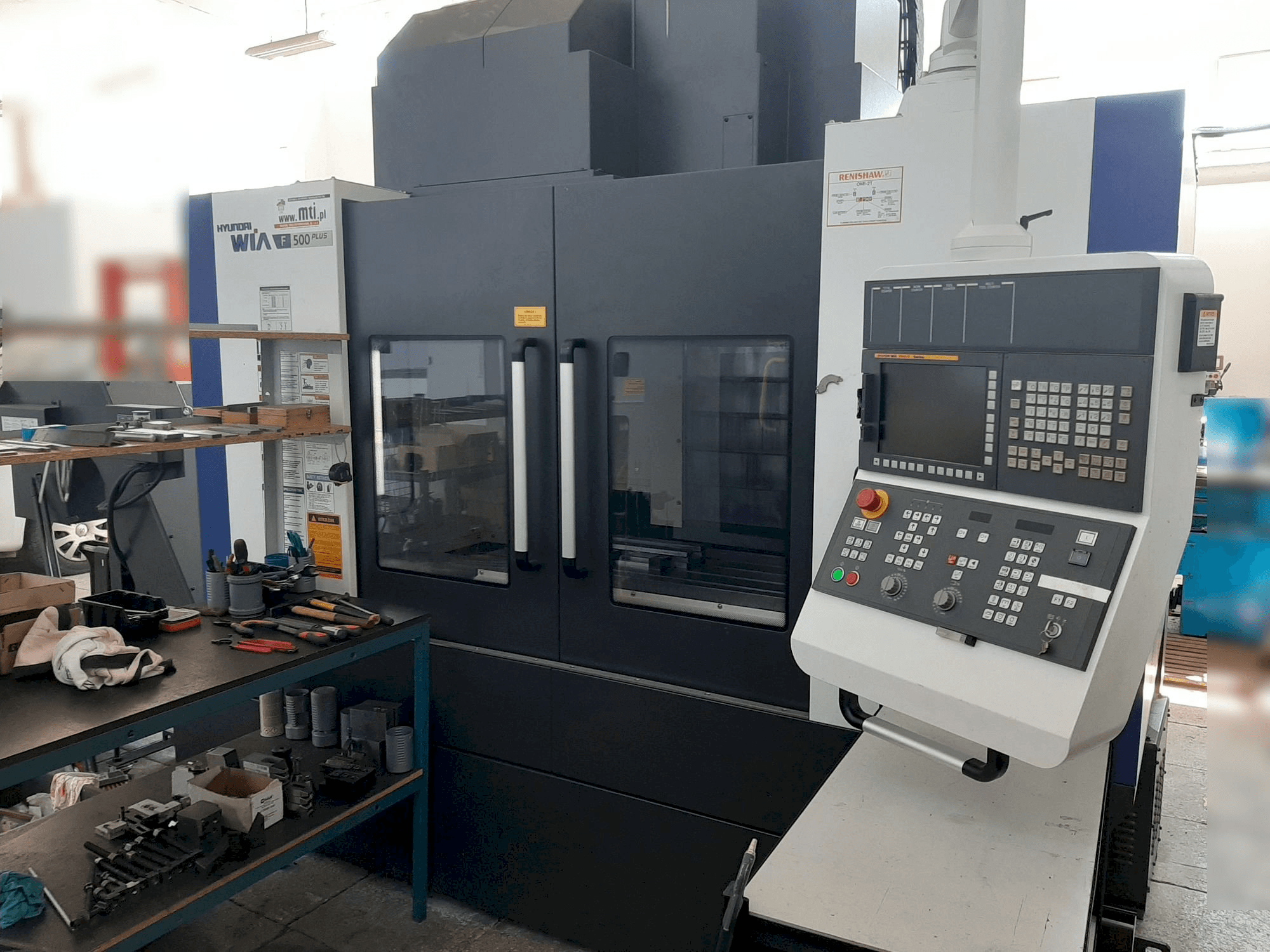

This Hyundai Wia F500 PLUS Vertical Machining Center was built in Korea in the year 2017. It has been working for only approximately 500 hours. This 3 axis machine is operated through a HYUNDAI WIA FANUC i Series control unit. It can work with a spindle speed up to 12000 rpm. This machine includes several tools and accesories as a Renishaw probe for parts. It is almost new and fully operational with its full documentation available.

Overview

brand: Hyundai Wia
year: 2017
MODEL: F500 PLUS
production hours: 500
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Hyundai Wia F500 PLUS

General Data

Measurements width: 2910 MM
Measurements depth: 2690 MM
Measurements height: 2815 mm
Machine weight: 7500 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1060 MM
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 510 MM
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 635 mm
Z-AXIS Rapid traverse: 30 m/min

Table

Outer length: 1200 MM
Outer width: 500 mm
Table load: 800 kg

Turret

Number of tool slots: 30 pcs

Tools

Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 300 mm
Type of tool holder: BBT40

Media

Main electronic connection: 380 V / 50Hz
Power consumption: 23 KVA
Chip conveyor: Yes

Additional Equipment

- 30 pcs of holders
- 1 pc hydraulic holder Schunk
- 1 pc hydraulic vice
- 1 pc tool probe
- 1 PC Renishaw probe for parts

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Automatic tool changer (atc)
- - Tool change time (tool-tool): 1. 3 sek
Qualitative Machine Benefits:
- - The machine is almost new and fully operational.
- - Today it is out of the production.
- - Full documentation available.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
